New Sight to Structural Analysis & Design
Built for engineers, tailored for real-world projects. Fast. Accurate. Reliable.
Get Started – 14-Day Free TrialSoftware We Offer
Steel Member/Segment Design
- Designs steel members/segments in compliance with NZS 3404 and AS 4100
- Visual representation of member/segment design and segments end conditions
- Includes commonly used steel sections and materials in New Zealand and Australia

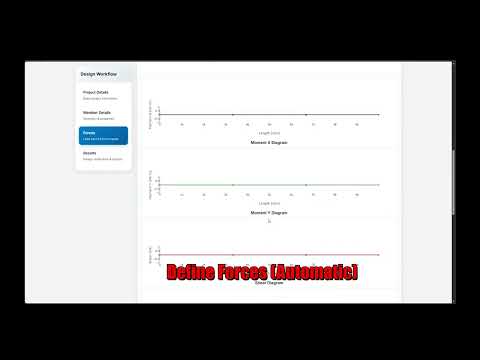

- Calculates force input for each segment using member force diagrams or allows manual entry of user-defined values
- Generates summary, standard, and detailed design reports
- Exports design results in PDF format
- Automatically calculates relevant design factors
- Supports users via email
Beam Calculator
- analysis for steel, concrete, wood, and other materials
- Features standard steel sections and materials used in New Zealand and Australia

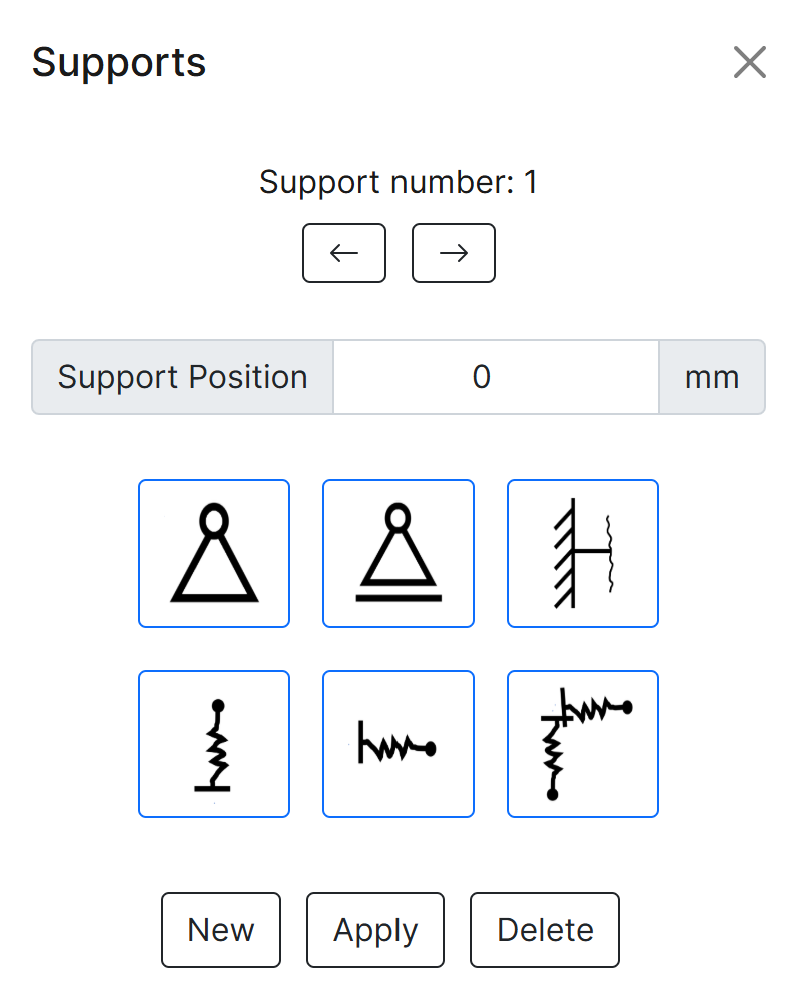

- Accommodates pinned, roller, and fixed support types
- Includes horizontal and vertical springs with customizable stiffness values

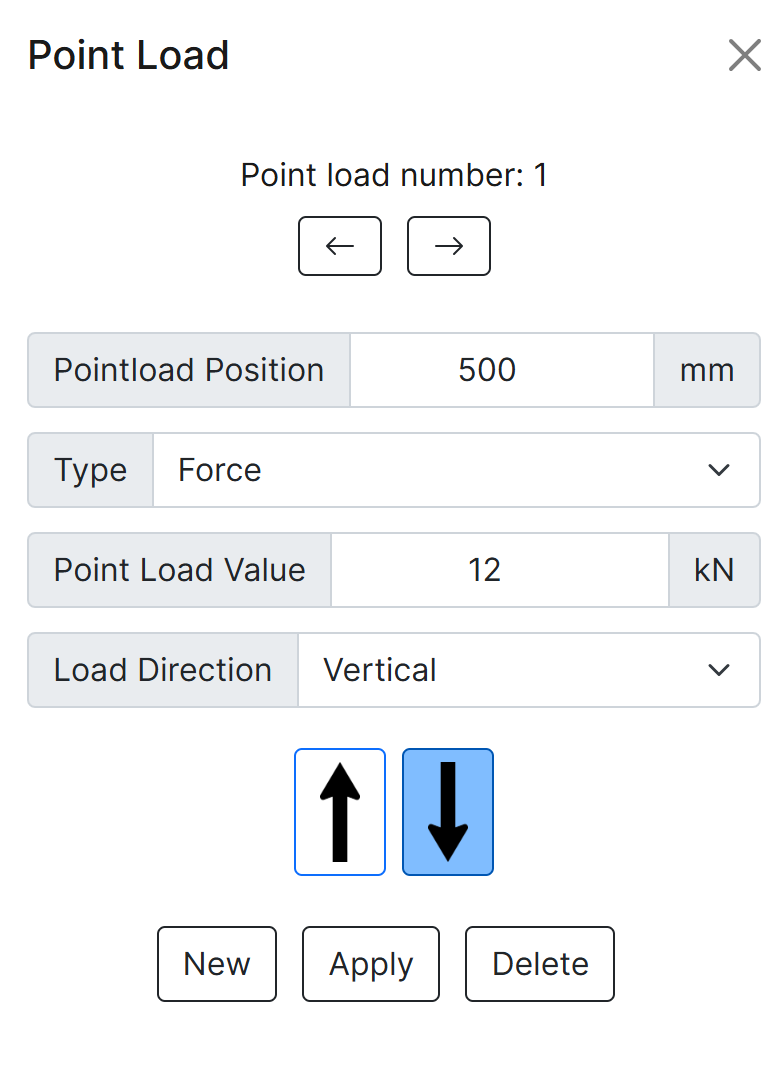

- Handles point loads, distributed loads, and moment loads
- Generates bending moment,axial and shear force diagrams
- Calculates reaction forces and deflection

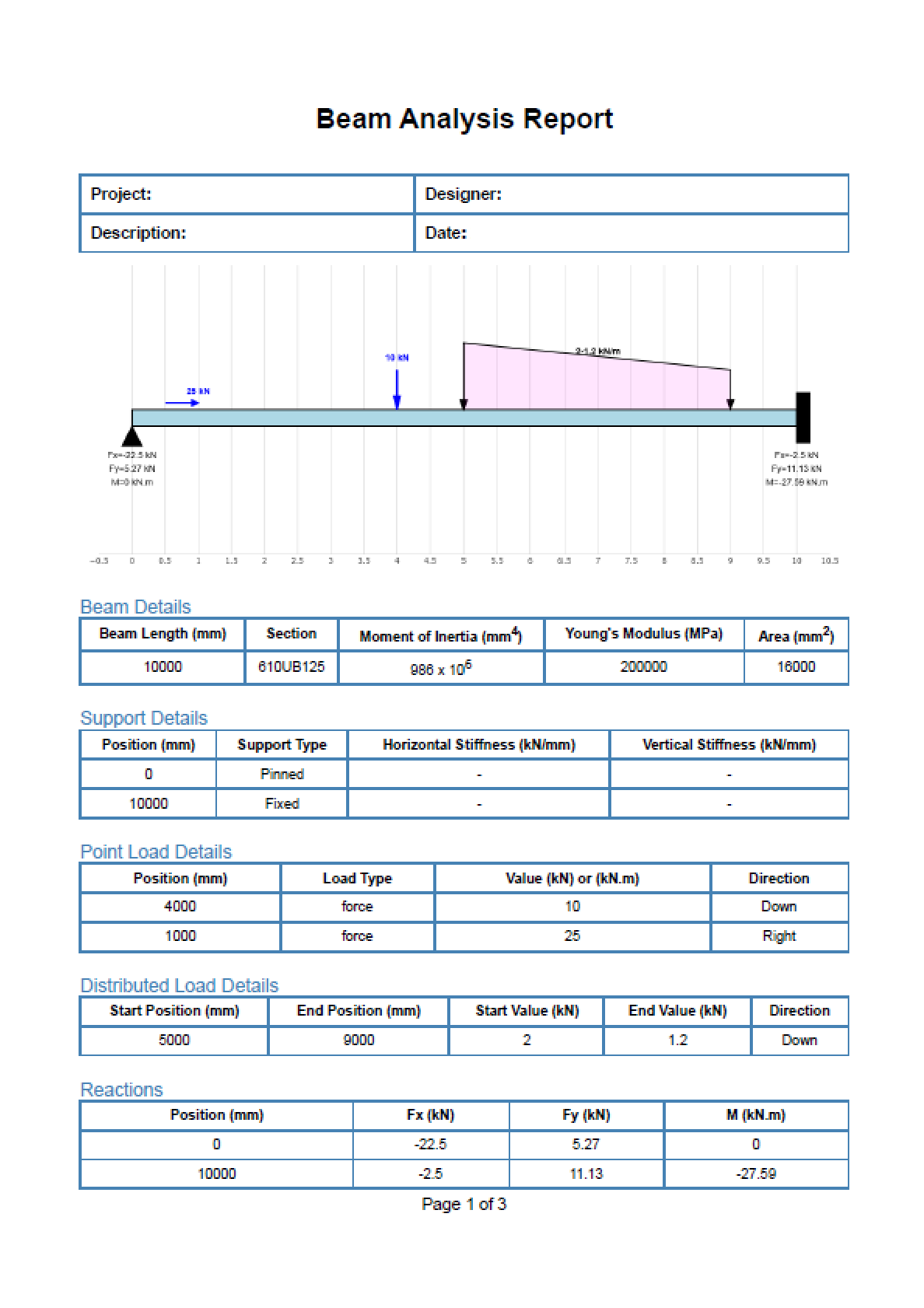

- Allows export of design results in PDF format
- Supports users via email
Software Features
Steel Member / Segment Design
Developed in accordance with NZS 3404:1997 (including Amendments 1 and 2) and AS 4100, this tool supports comprehensive design checks for both single and multi-segment steel members. It evaluates critical factors such as major and minor axis bending moment, axial forces and shear to ensure full compliance with relevant structural standards.

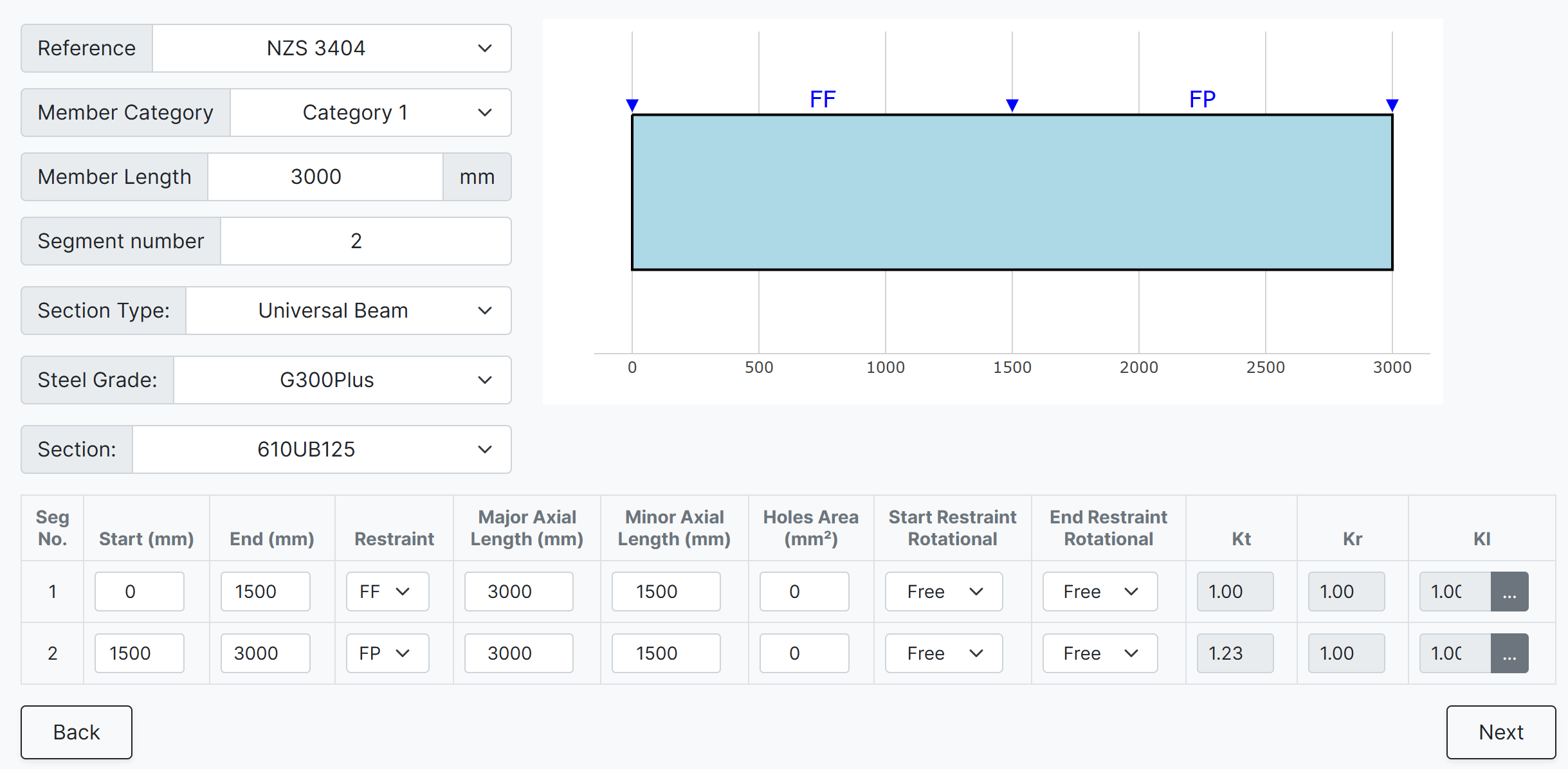

Use this mudule in “check mode” to define member geometry, select appropriate section types, and apply various loads. The software then performs rigorous structural adequacy assessments, making it suitable for straightforward beam designs as well as complex segmented members with varying properties along their length.
Results can be exported to a professional PDF report available in three customizable styles:
- Summary Report: A concise overview highlighting key design results and safety checks.

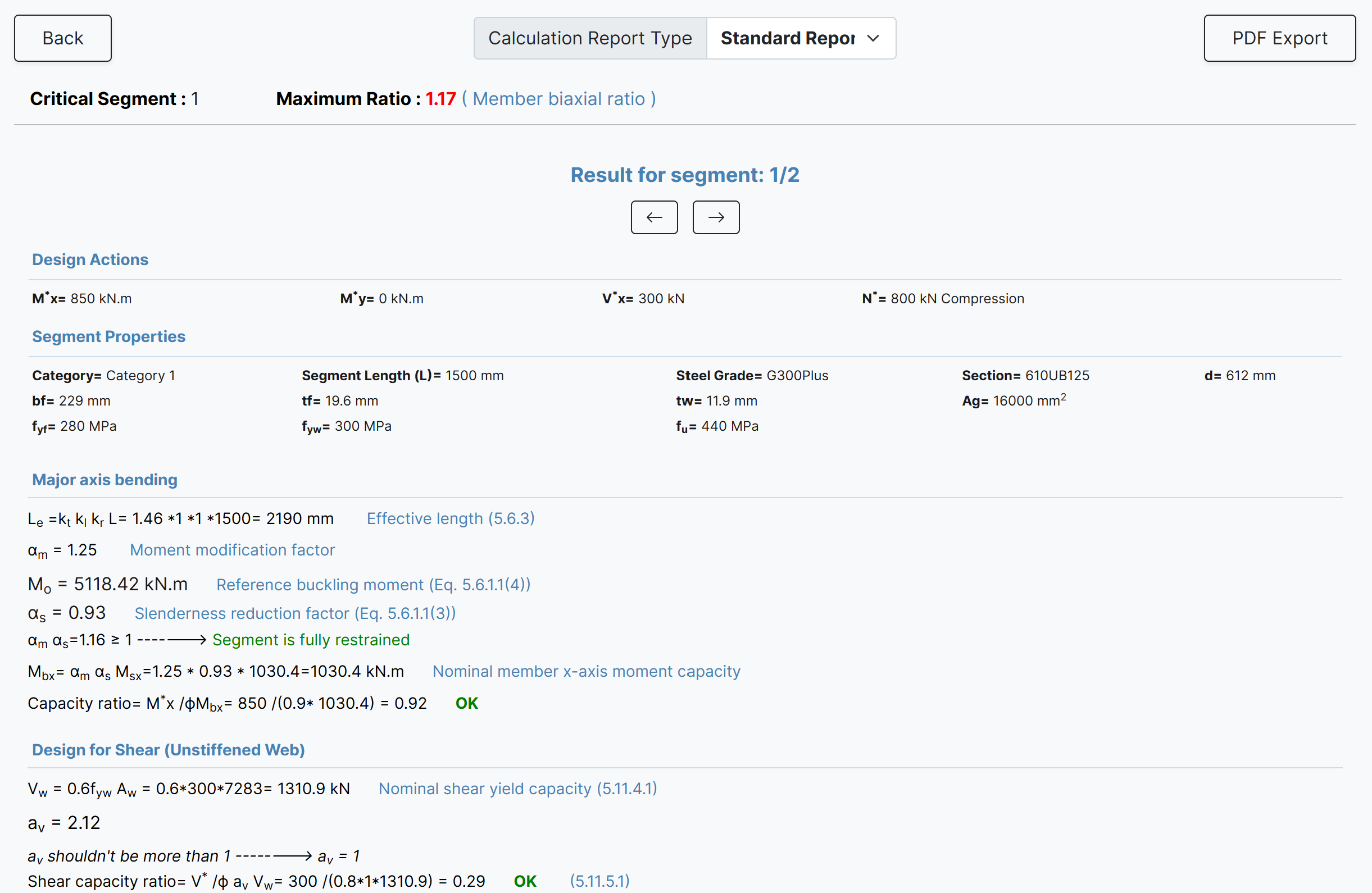

- Standard Report: Includes detailed equations and design results presented in a clear standard format.

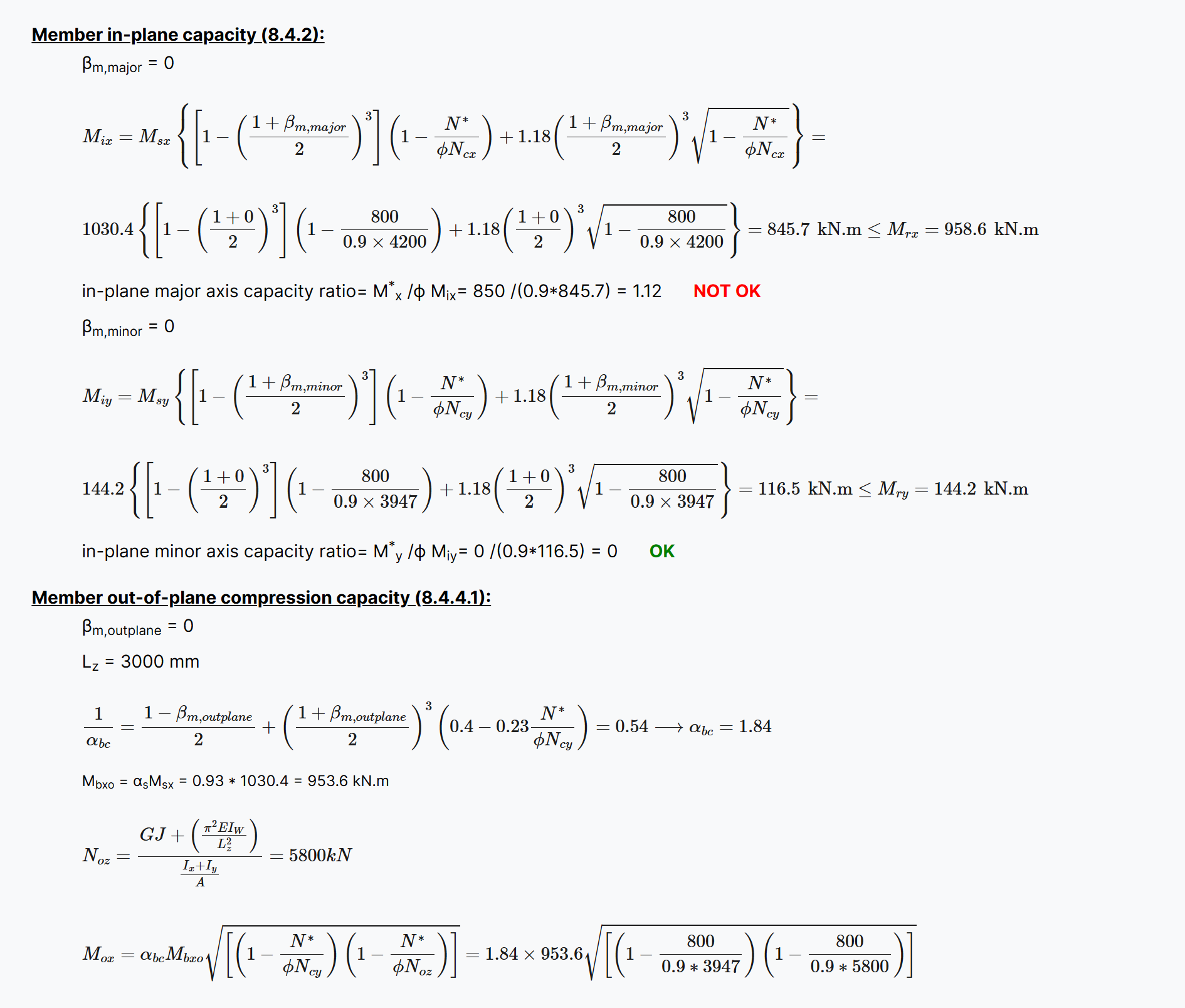

- Detailed Report: A comprehensive step-by-step report featuring intermediate calculations, capacity ratios, and equations presented in scientific notation for full transparency and traceability.
The report’s header clearly identifies the critical segment, indicating which segment controls the design based on the highest utilization ratio and related failure mode. Users can conveniently navigate through different segments’ results using intuitive controls.
Designed with clarity and efficiency in mind, this module empowers engineers to:
- Verify structural compliance against established codes.
- Reduce calculation errors with automated checks.
- Generate professional documentation suitable for submission and review.
Beam Calculator
Designed for both engineers and students, this Beam Calculator quickly and accurately analyzes steel, concrete, wood, or any custom cross-section. It’s a powerful tool for structural design, verification, and professional documentation.

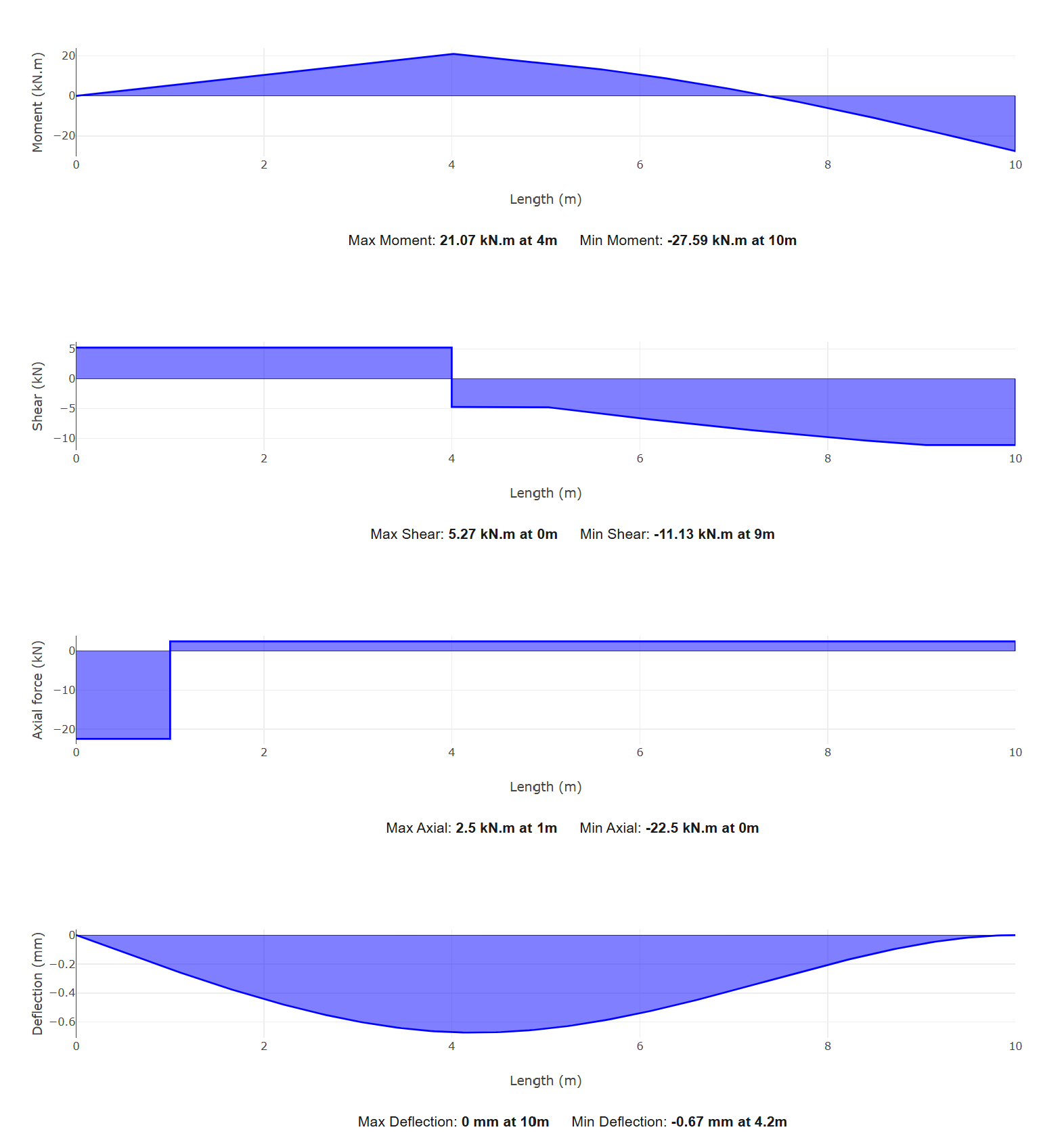

- Generate precise bending moment and shear force diagrams
- Calculate support reactions and beam deflections with confidence
- Analyze both determinate and indeterminate beam configurations
- Work with standard steel sections or input custom section properties
Define beam geometry, supports, and loads with ease. Instantly visualize results through real-time diagrams and evaluate beam performance on the fly.
Compatible with Australian and New Zealand steel sections by default, yet fully flexible to accommodate custom sections from anywhere worldwide.
Export professional-grade PDF reports featuring detailed calculations and clear visualizations—perfect for project submissions and record-keeping.
