StructUpro is a comprehensive structural engineering application designed to streamline your design workflow. Whether you're analyzing beams, designing steel members or connections, our tools provide accurate calculations with detailed reporting.
Beam Calculator
Calculate internal forces, moments, displacements, and reactions for beams of steel, concrete or any other material. Free with a StructUpro account.
Point loads, moments, and uniform or linearly varying distributed loads
Pinned, roller, fixed, and spring supports

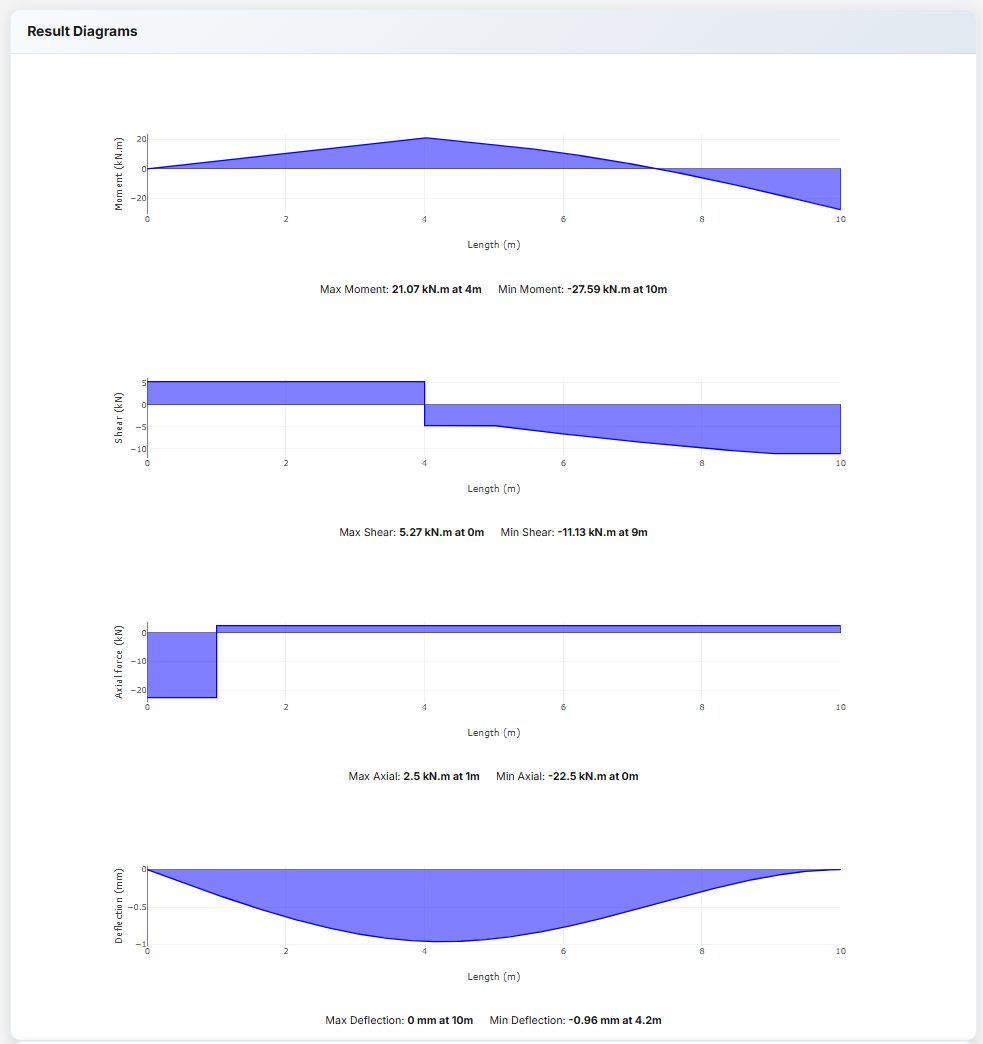

Live beam visualization and result diagrams

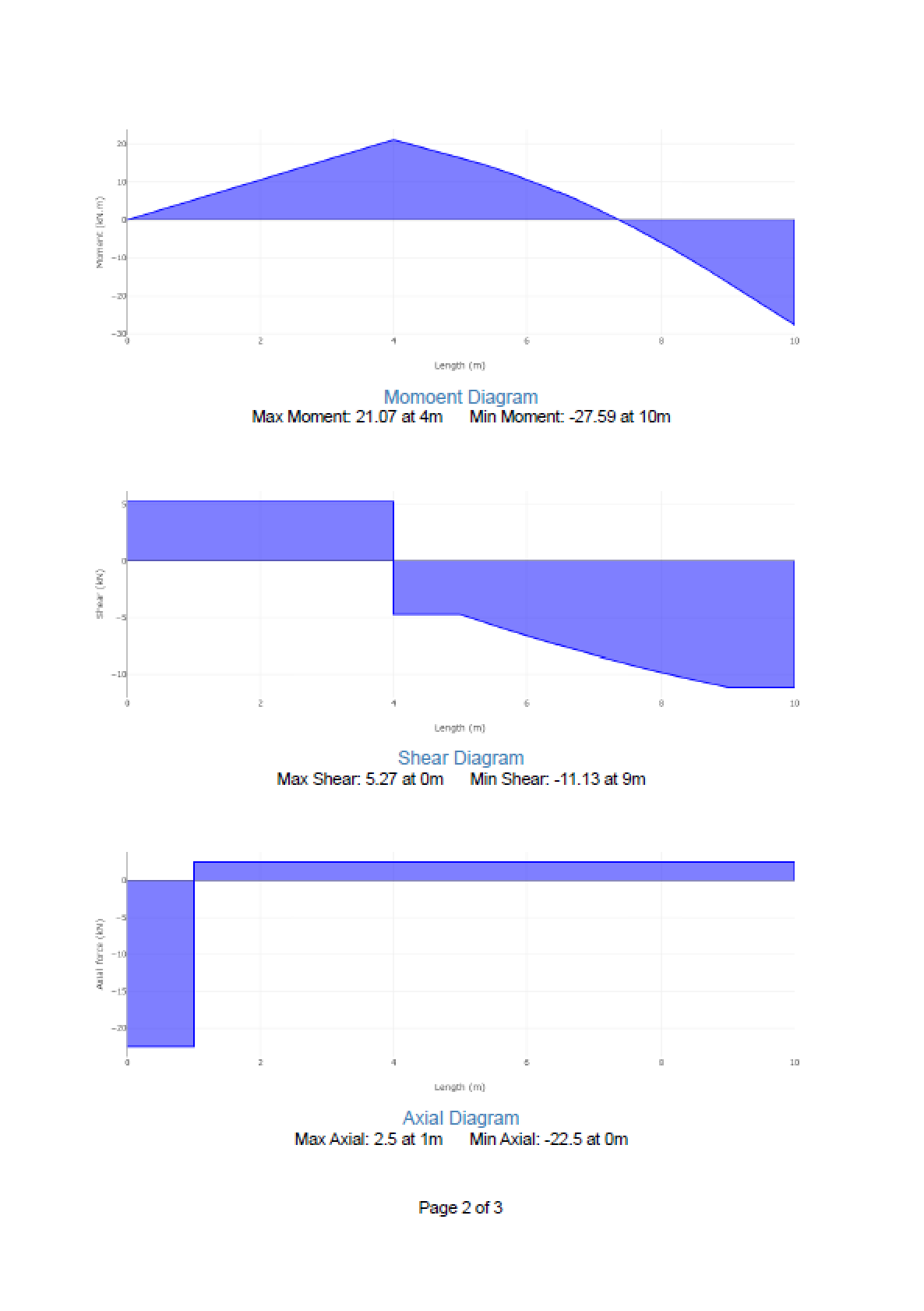

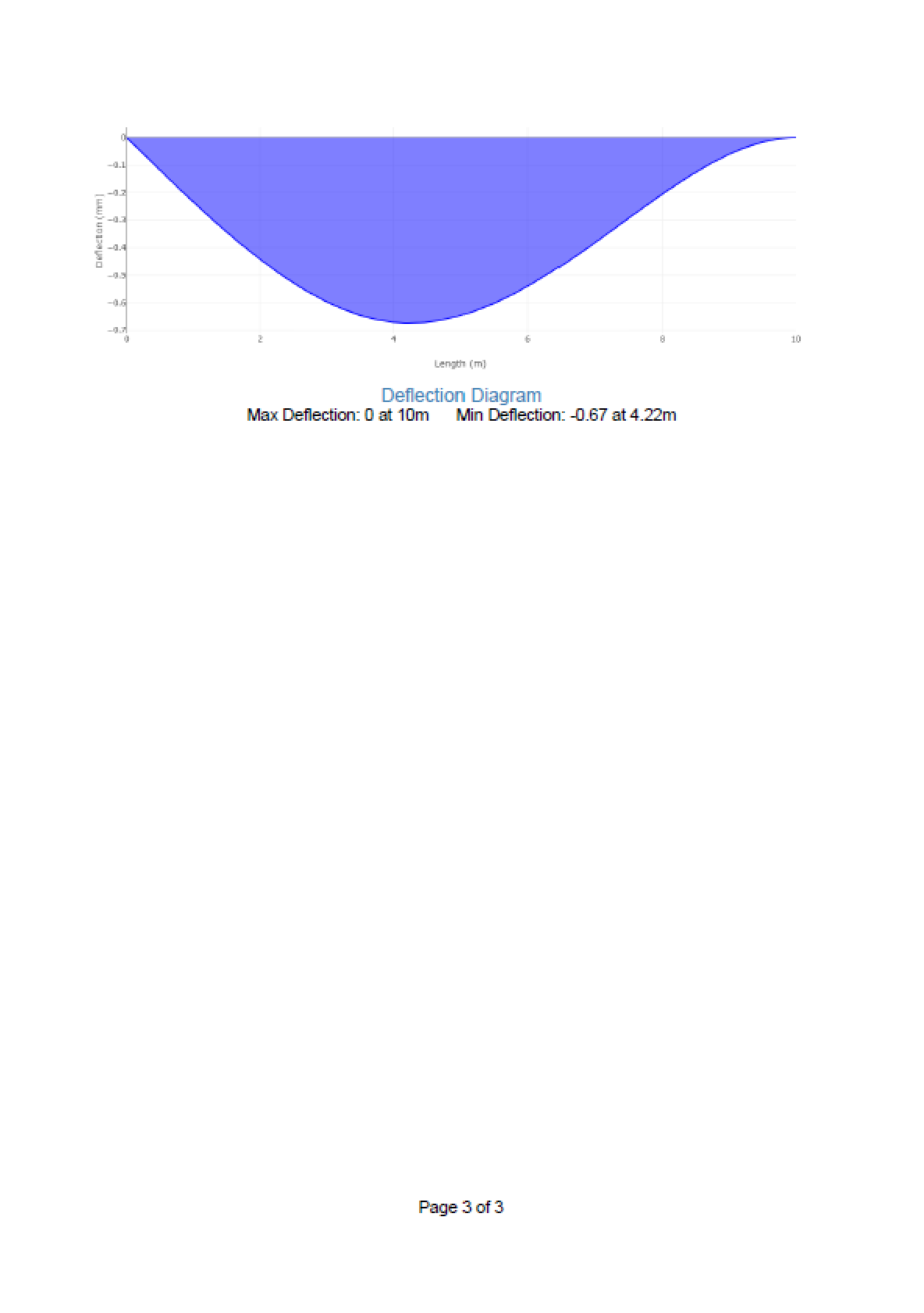

PDF export with detailed diagrams
Saved projects with a subscription, Student licence or trial
Steel Member Design
Design steel members of one or more segments to NZS 3404 and AS 4100, entering the forces yourself or importing them from an analysis model.
Multi-segment design capability
Member and force import from SAP2000 / ETABS analysis exports
Three report types: Summary, Standard, Detailed
Critical segment identification
Visual representation of the member, its segments and the force diagrams
Exports design results in PDF format
Automatically calculates relevant design factors

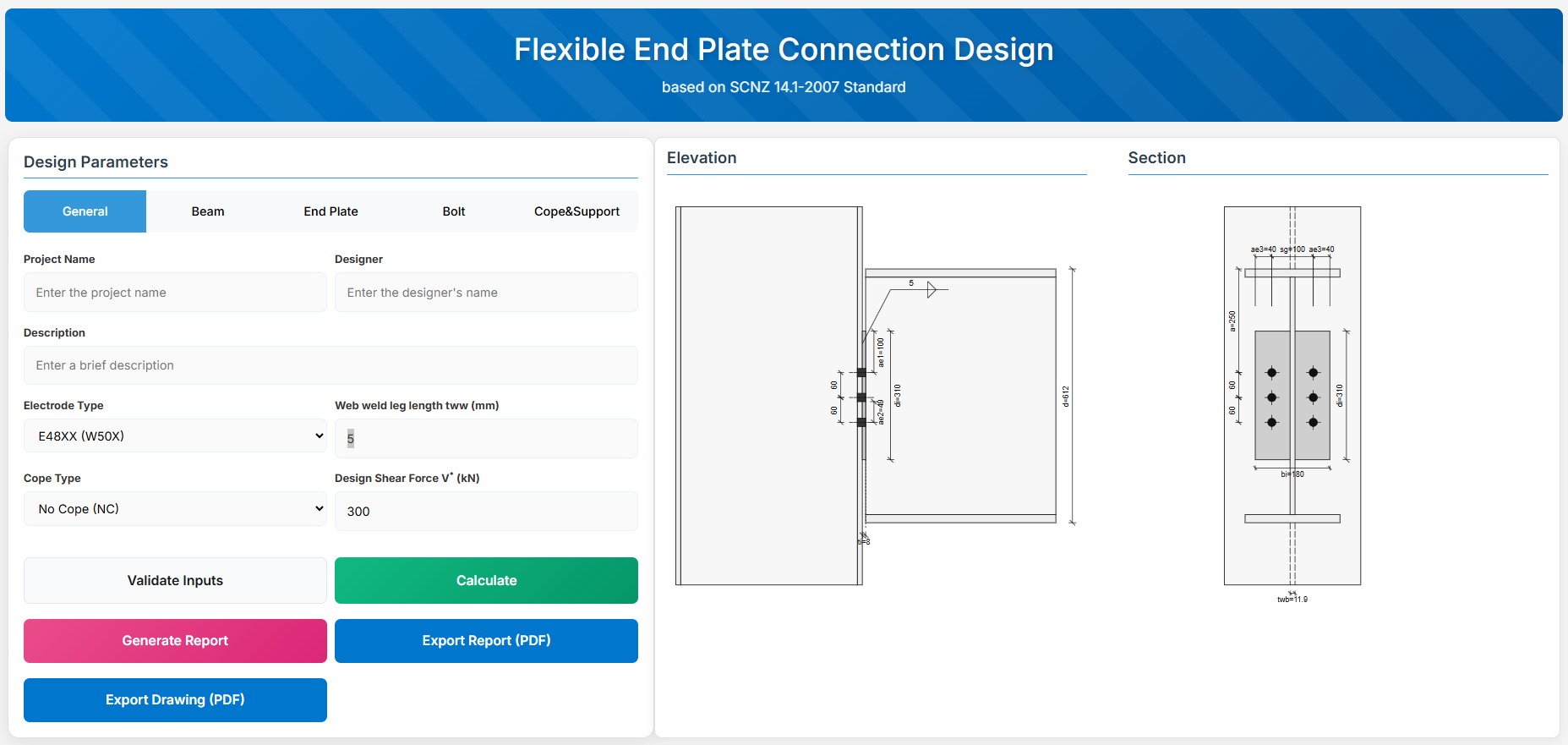

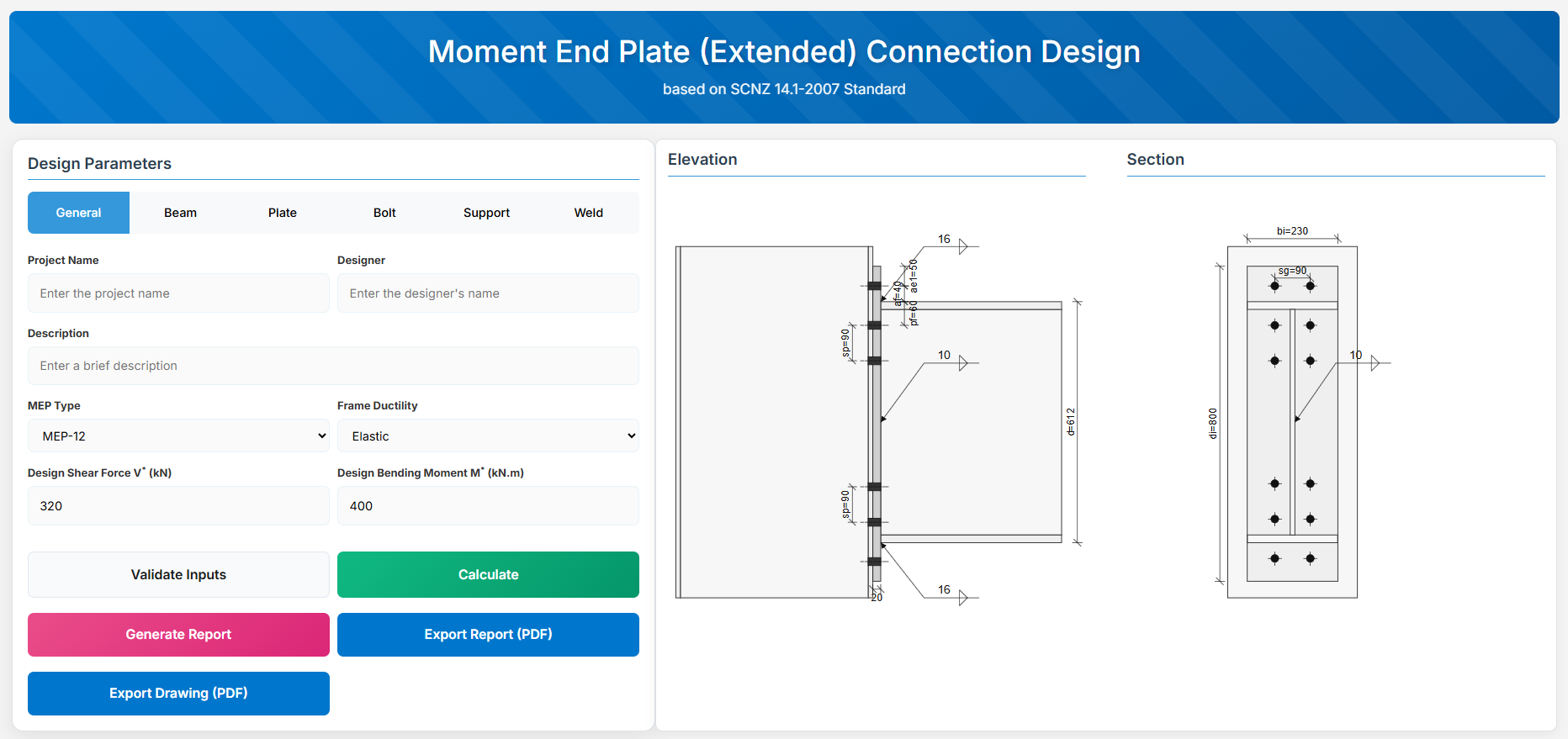

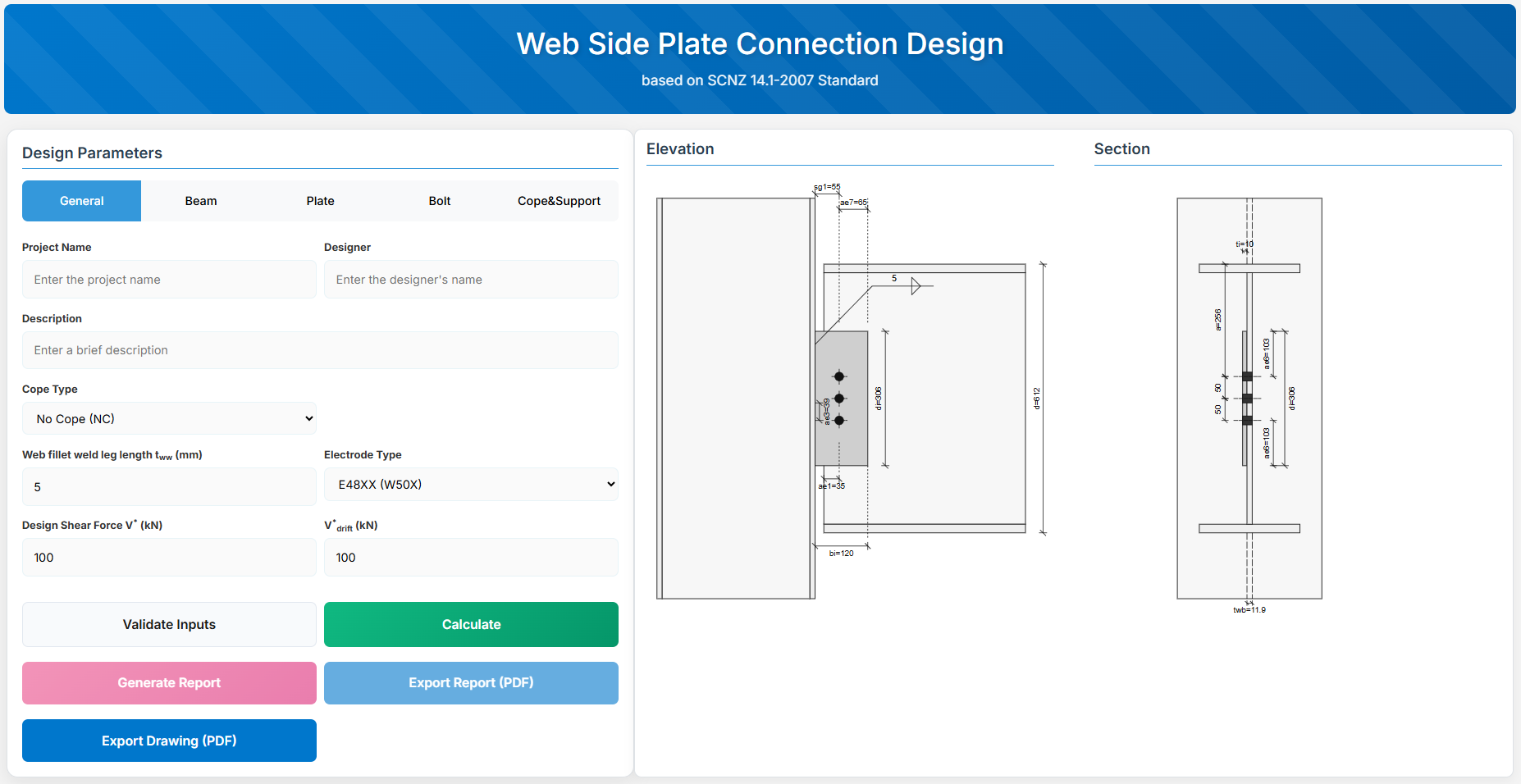

Connection Design
70 steel connection designs to five design codes: NZS 3404 (SCNZ 14.1), AS 4100 (ASI guides), AISC 360 / 341 / 358, BS 5950 (SCI P212 / P207) and EN 1993-1-8 (SCI P358 / P398).

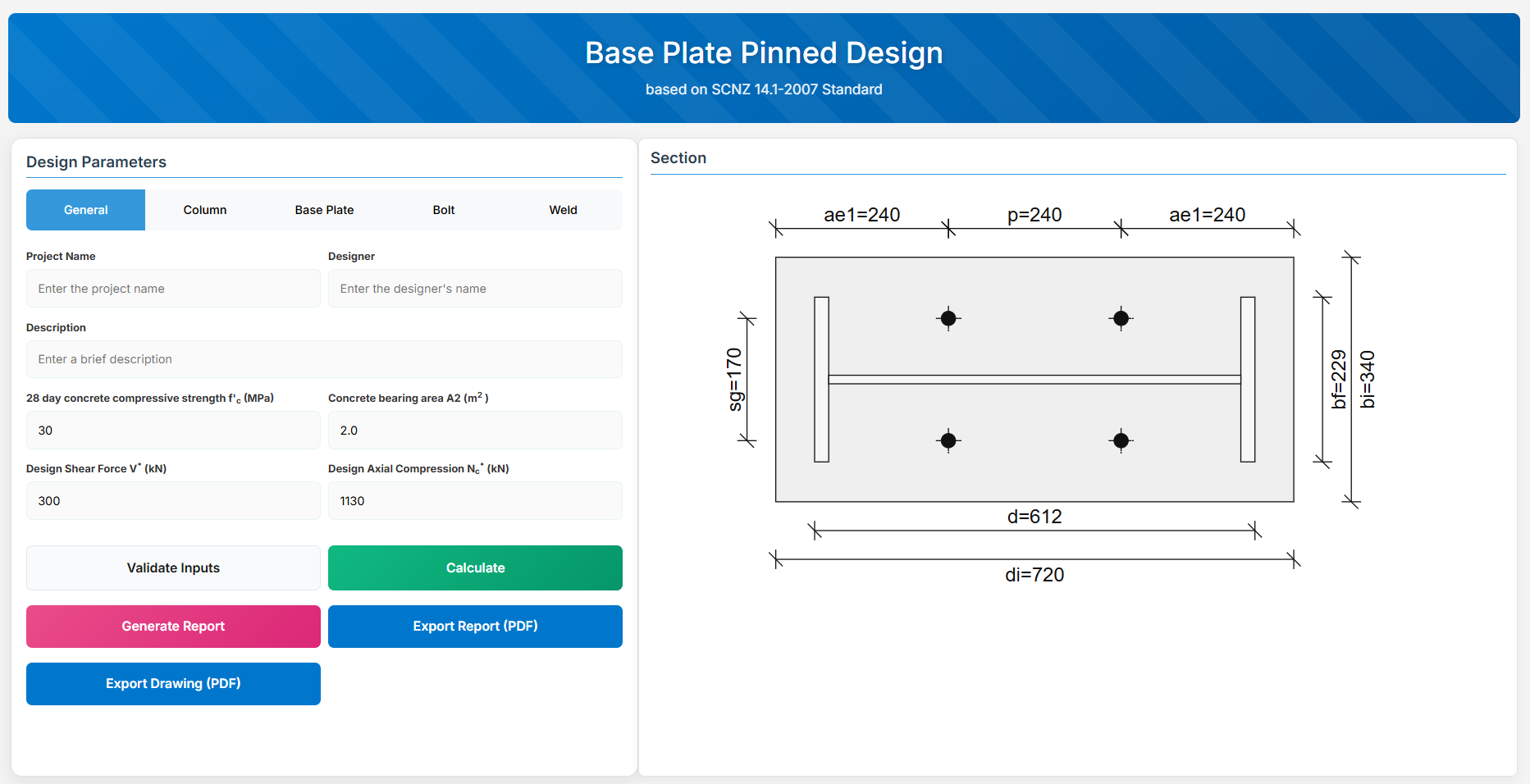

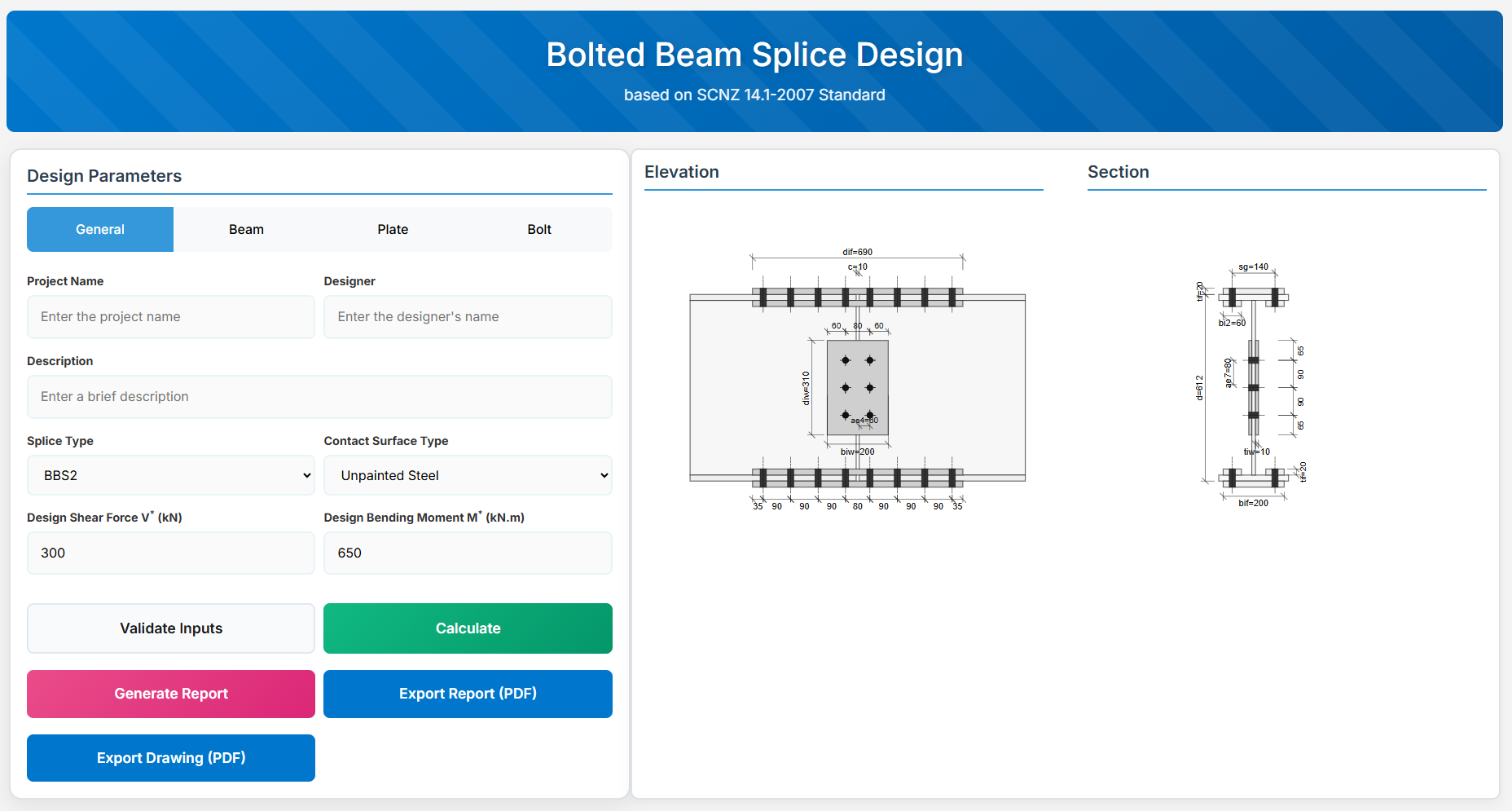

Simple shear, seated, moment, splice and column base connections

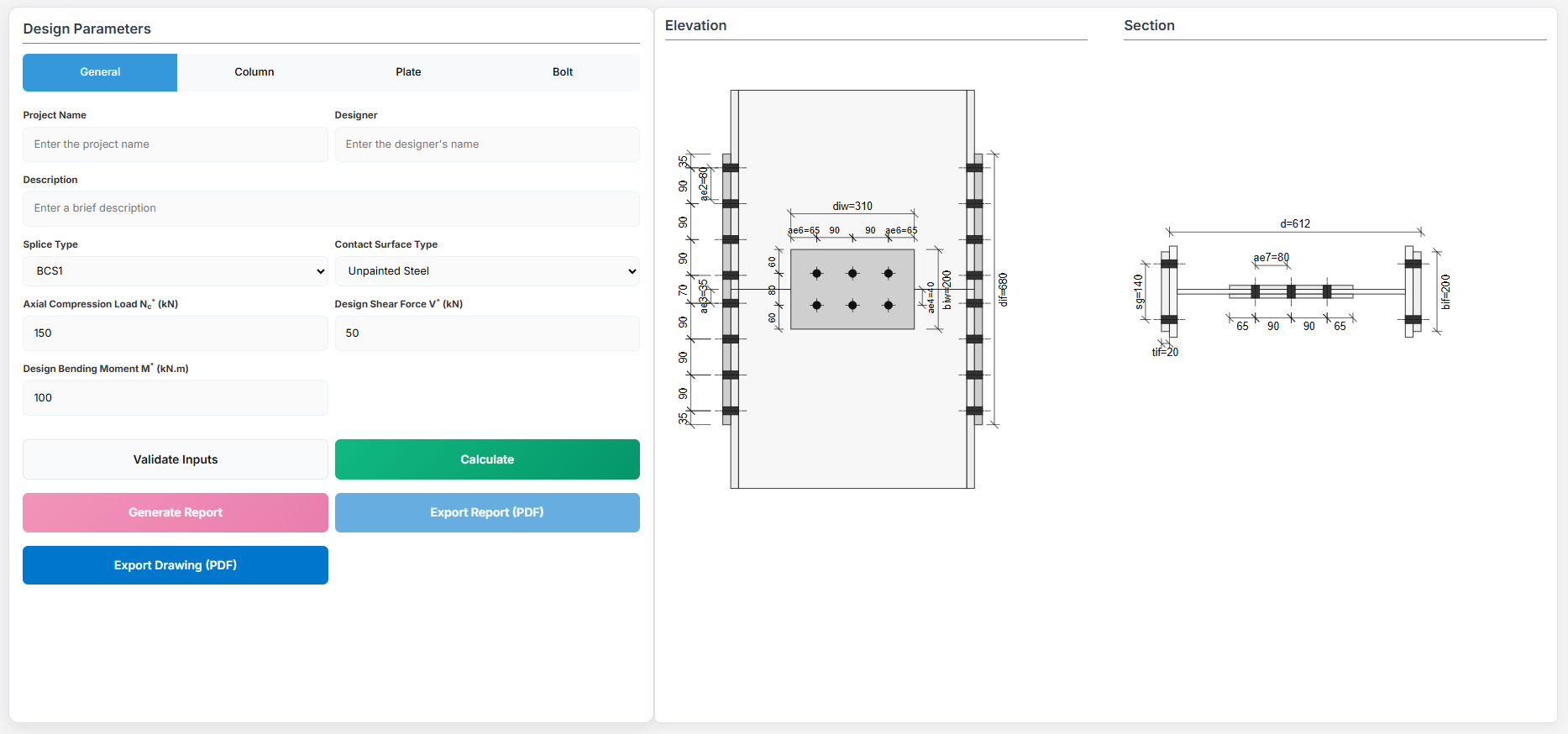

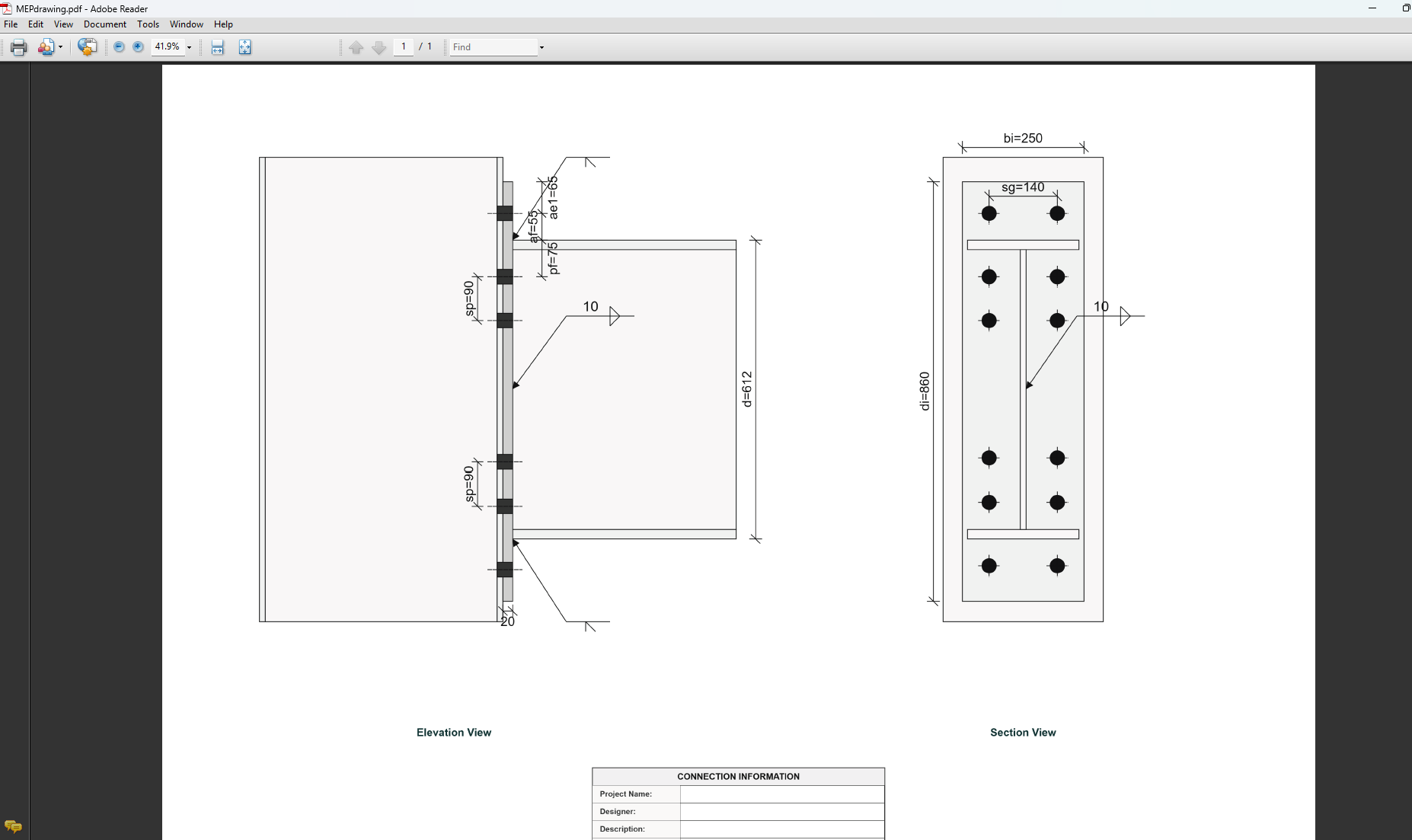

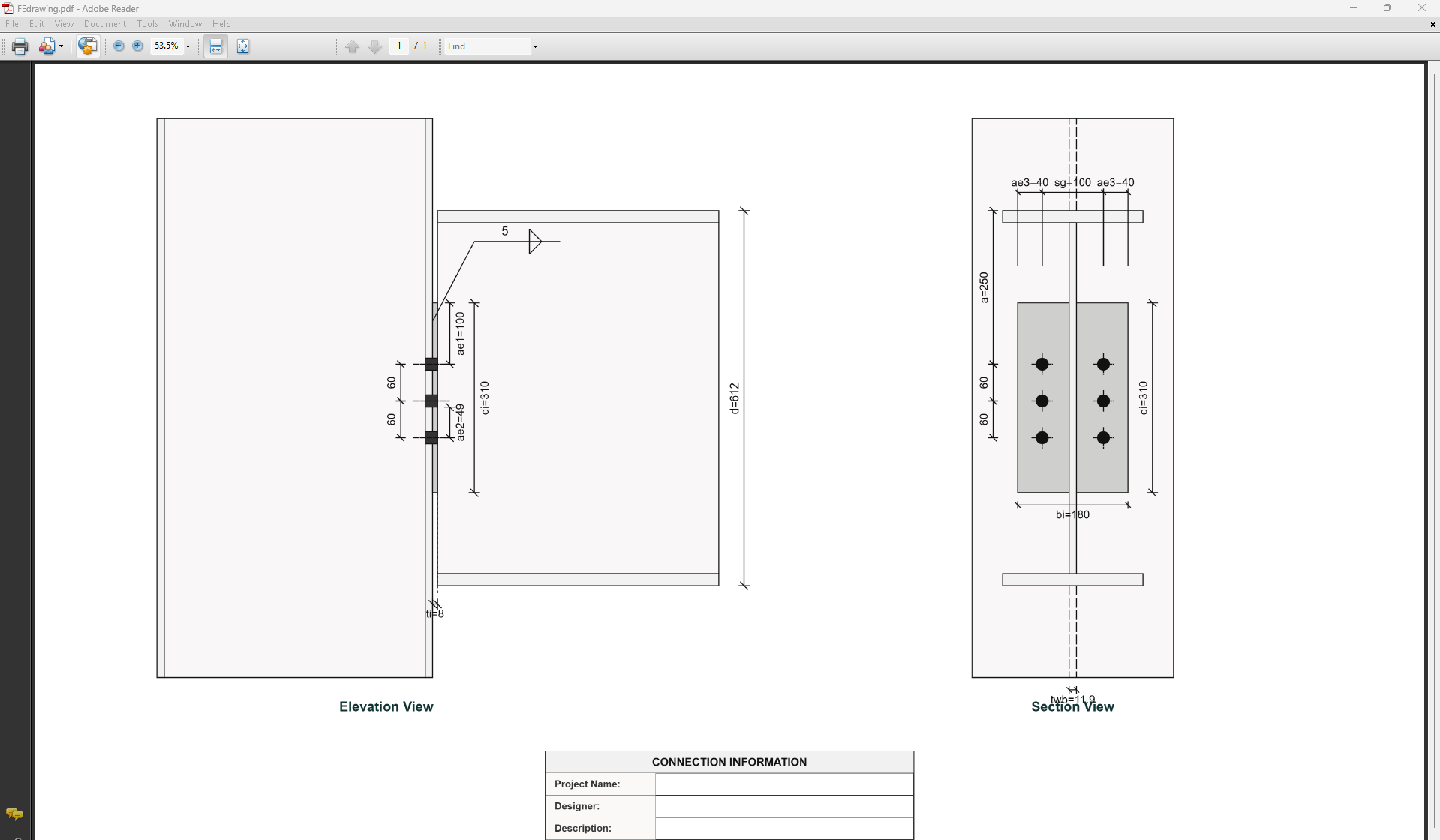

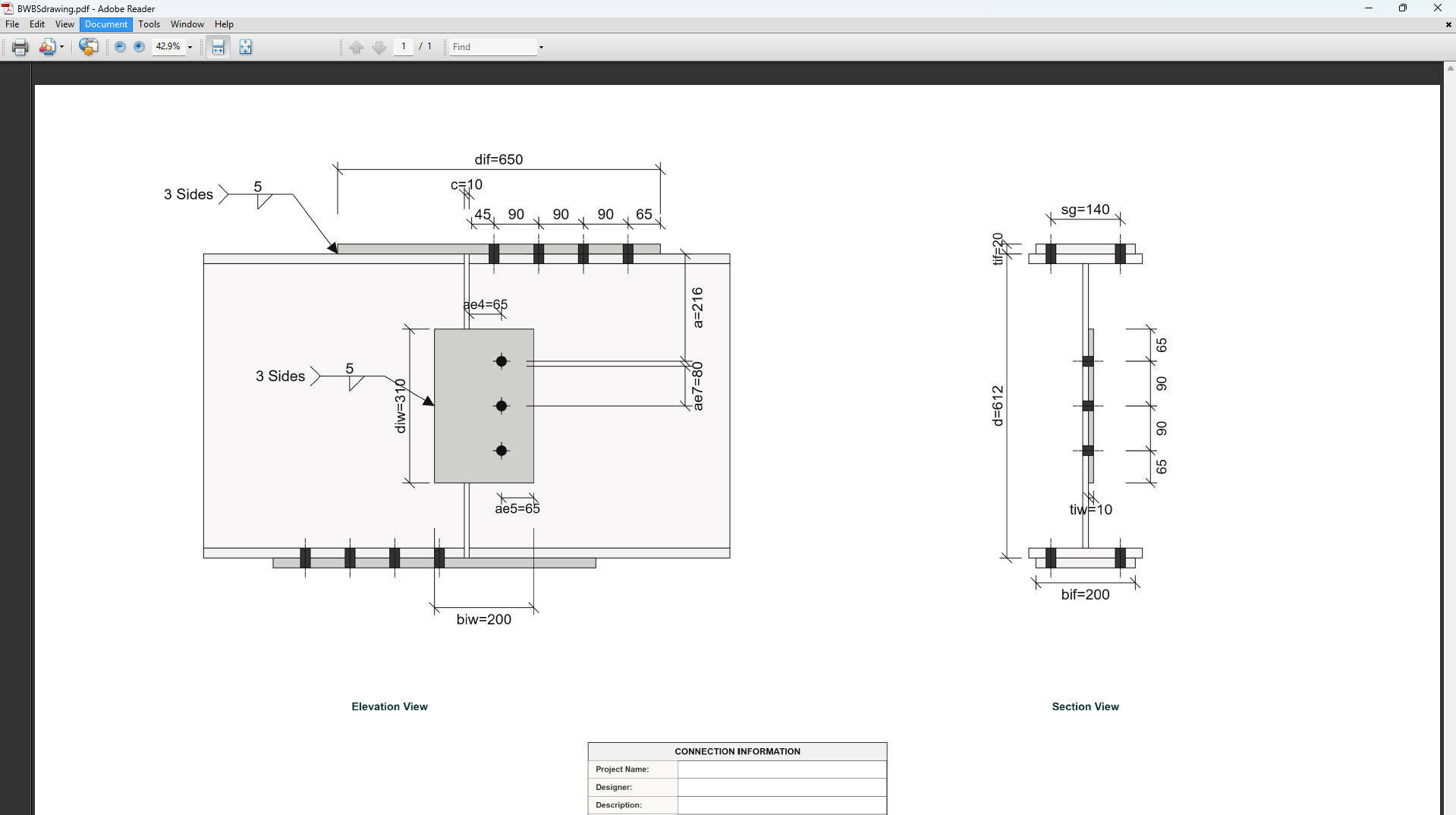

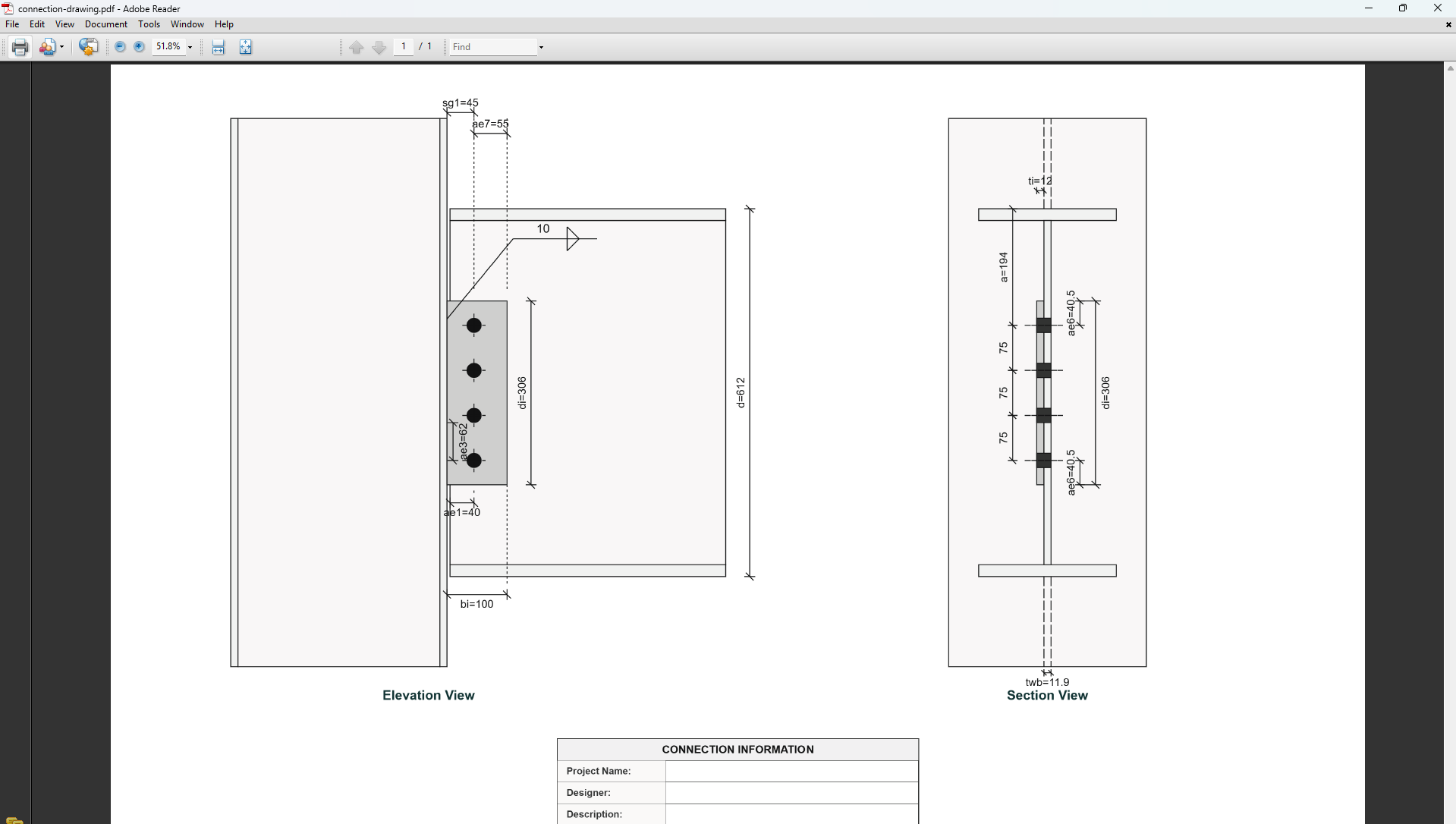

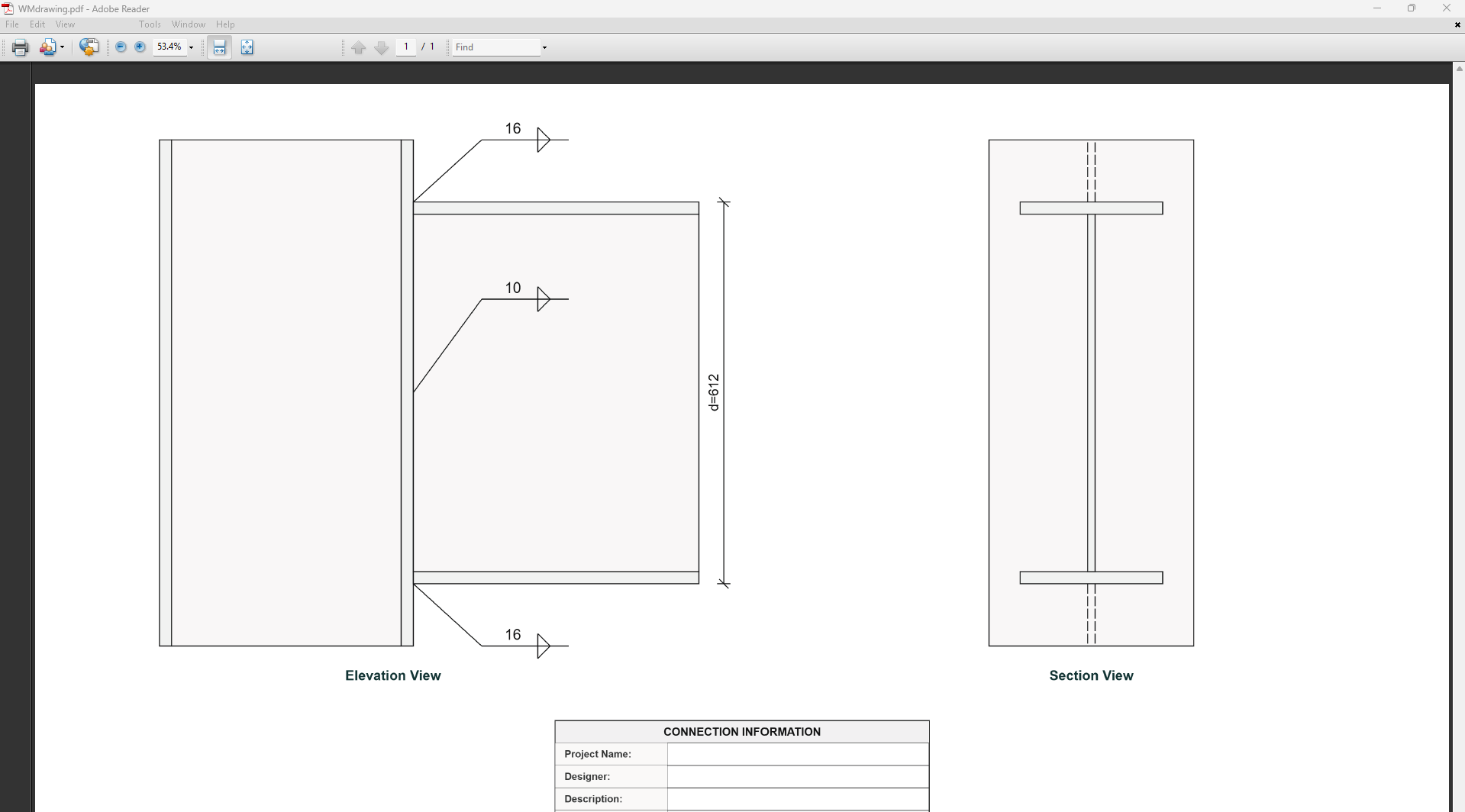

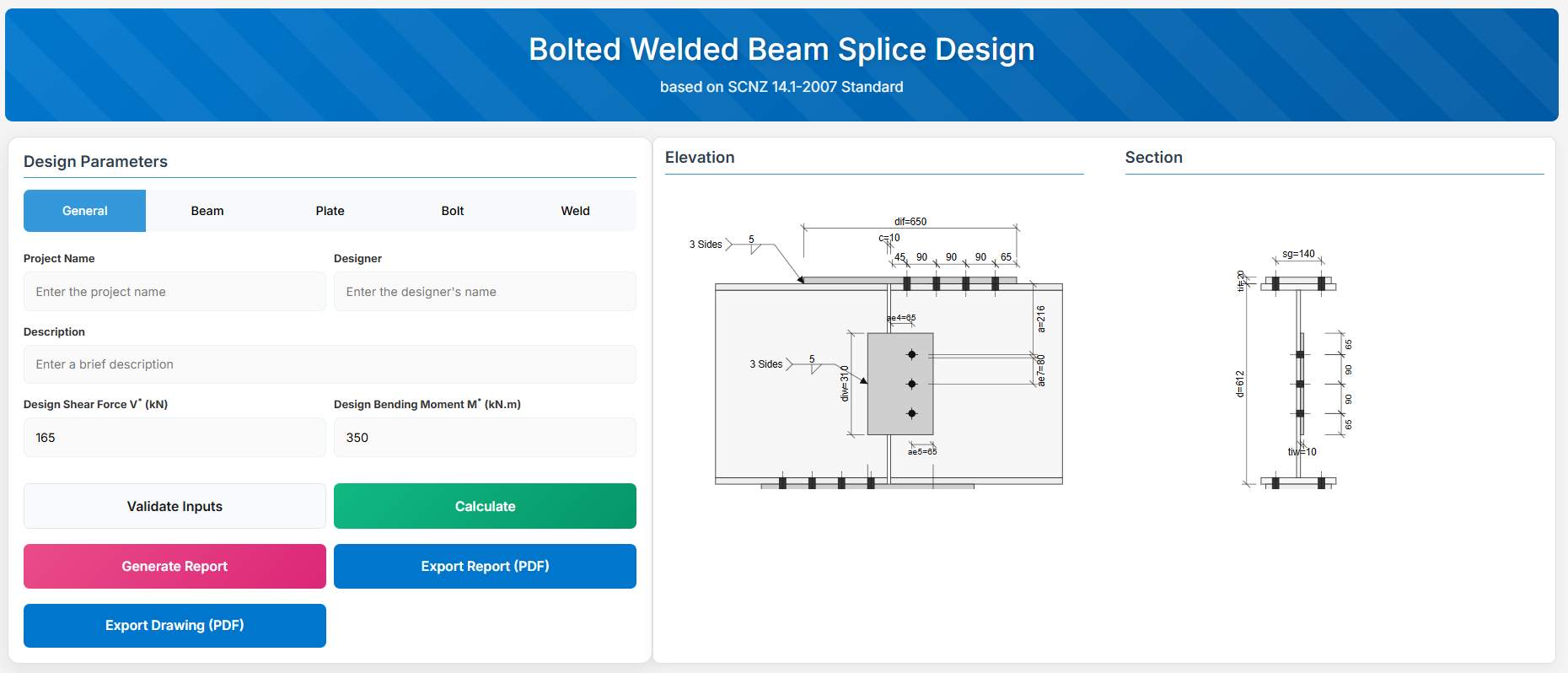

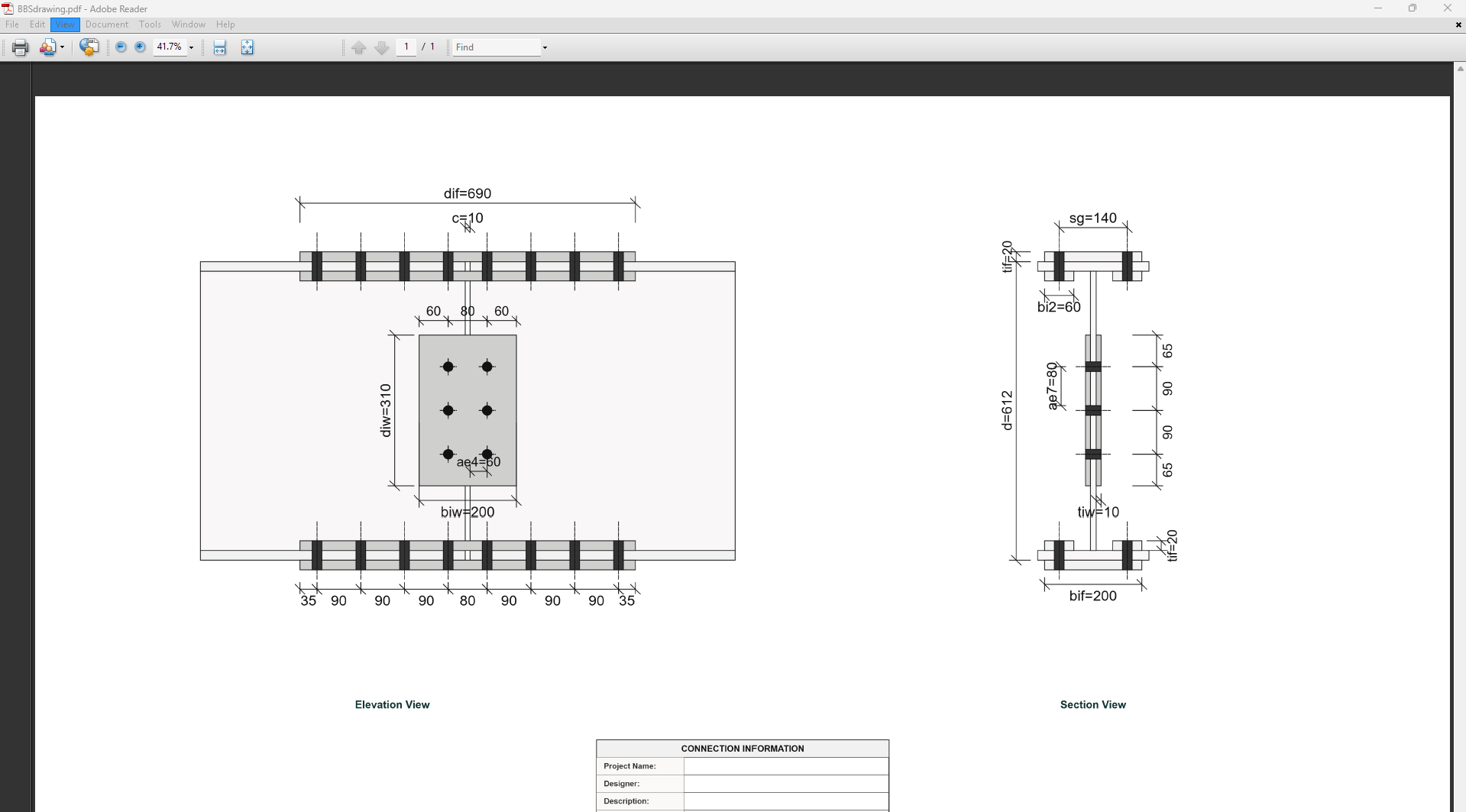

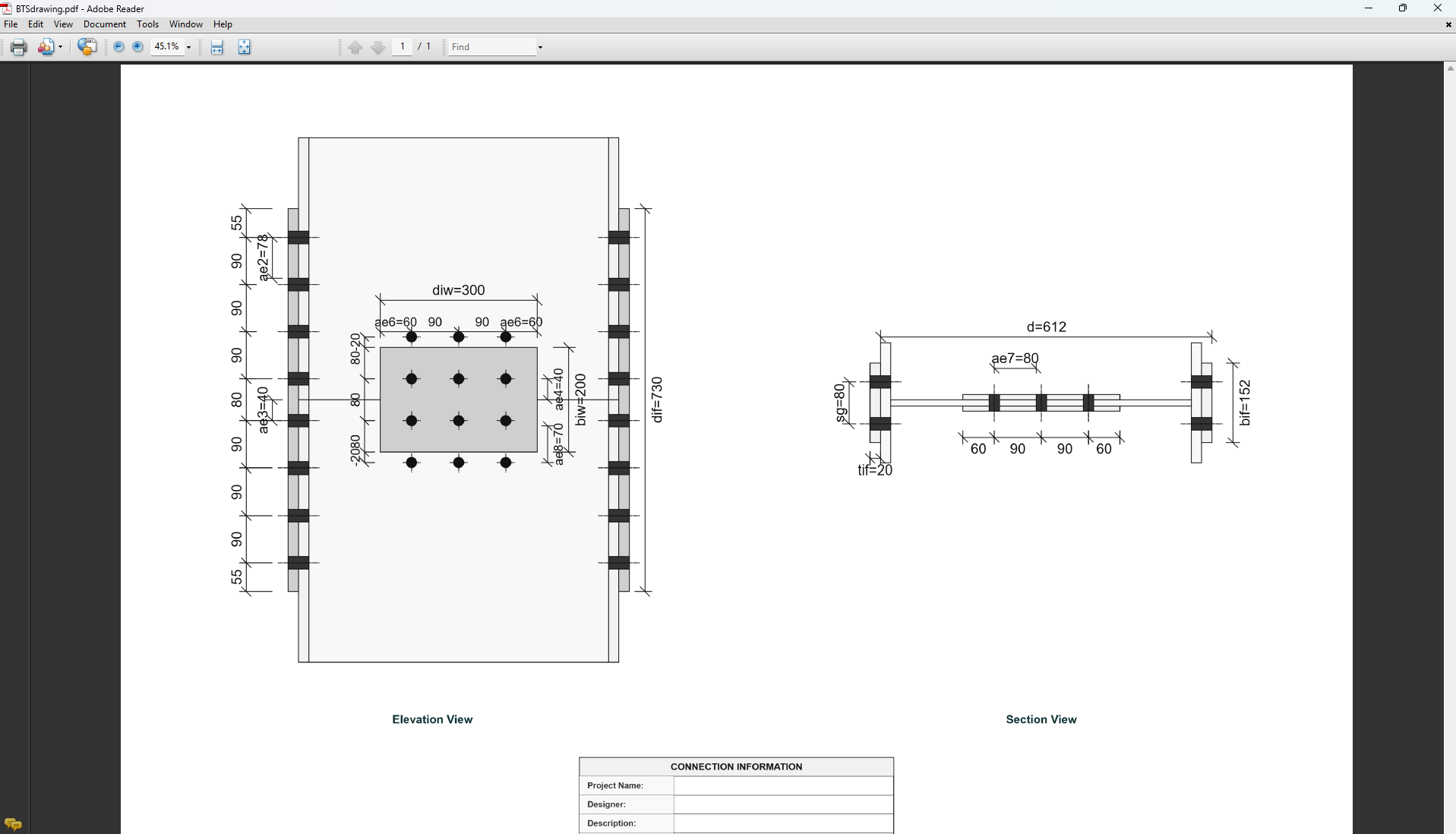

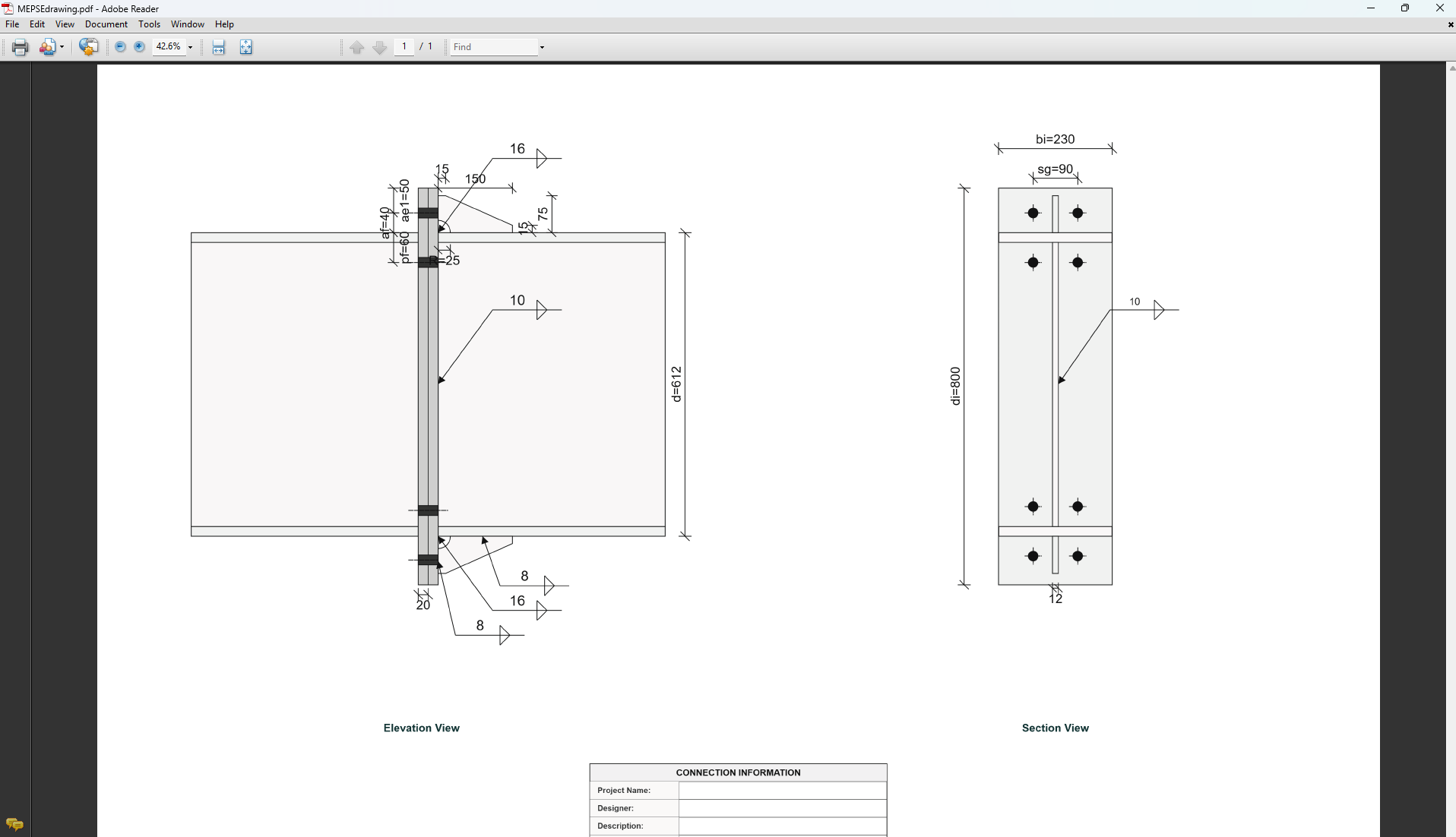

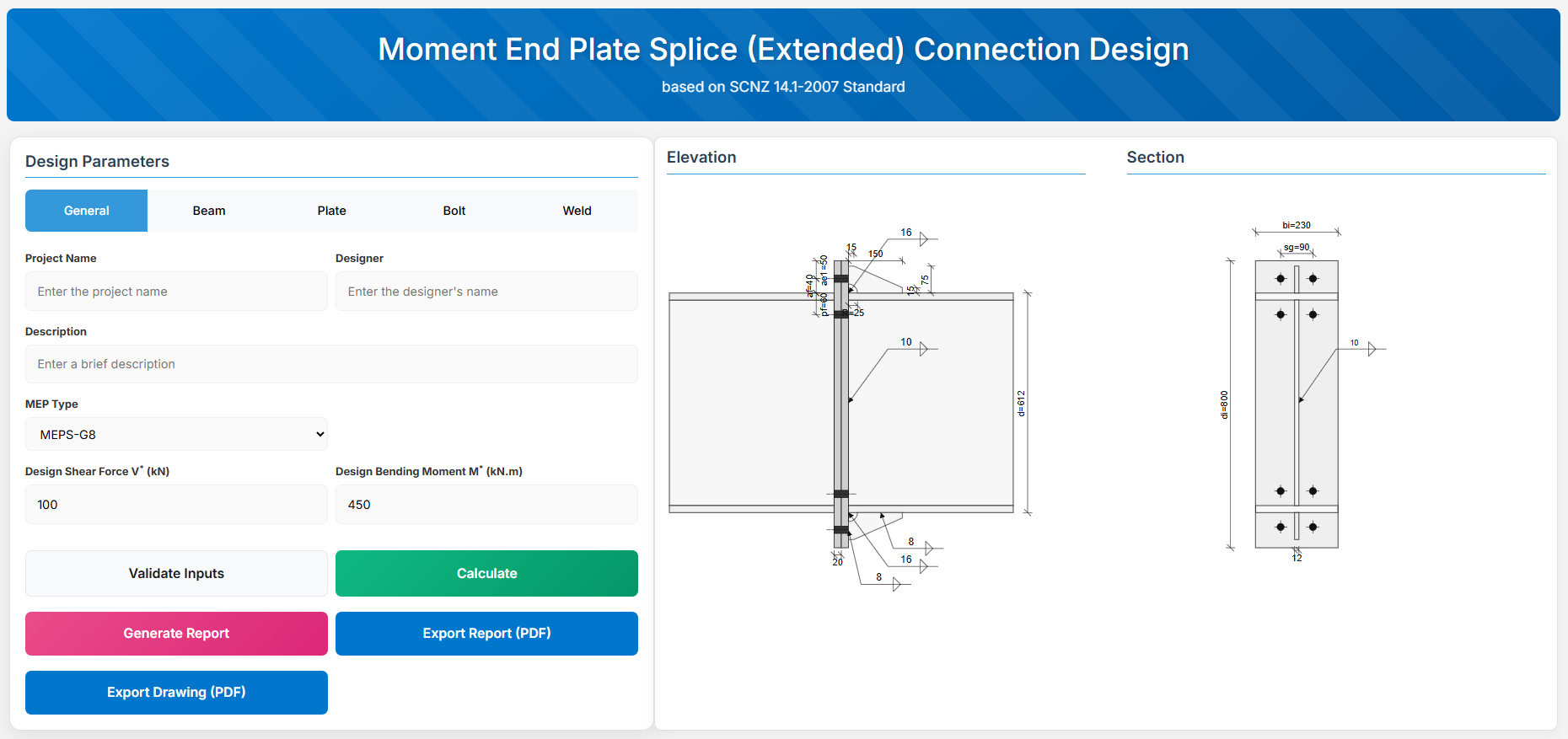

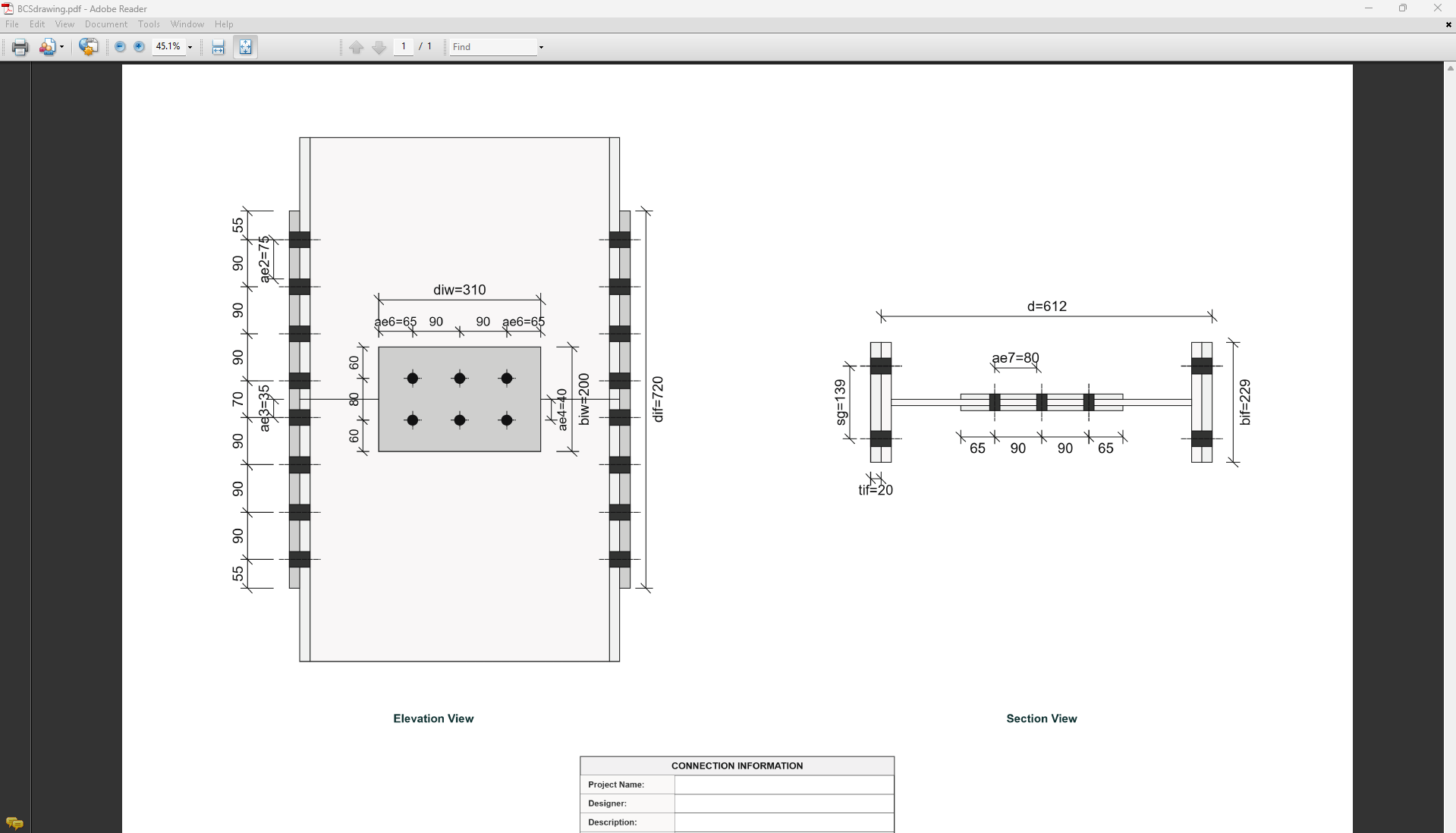

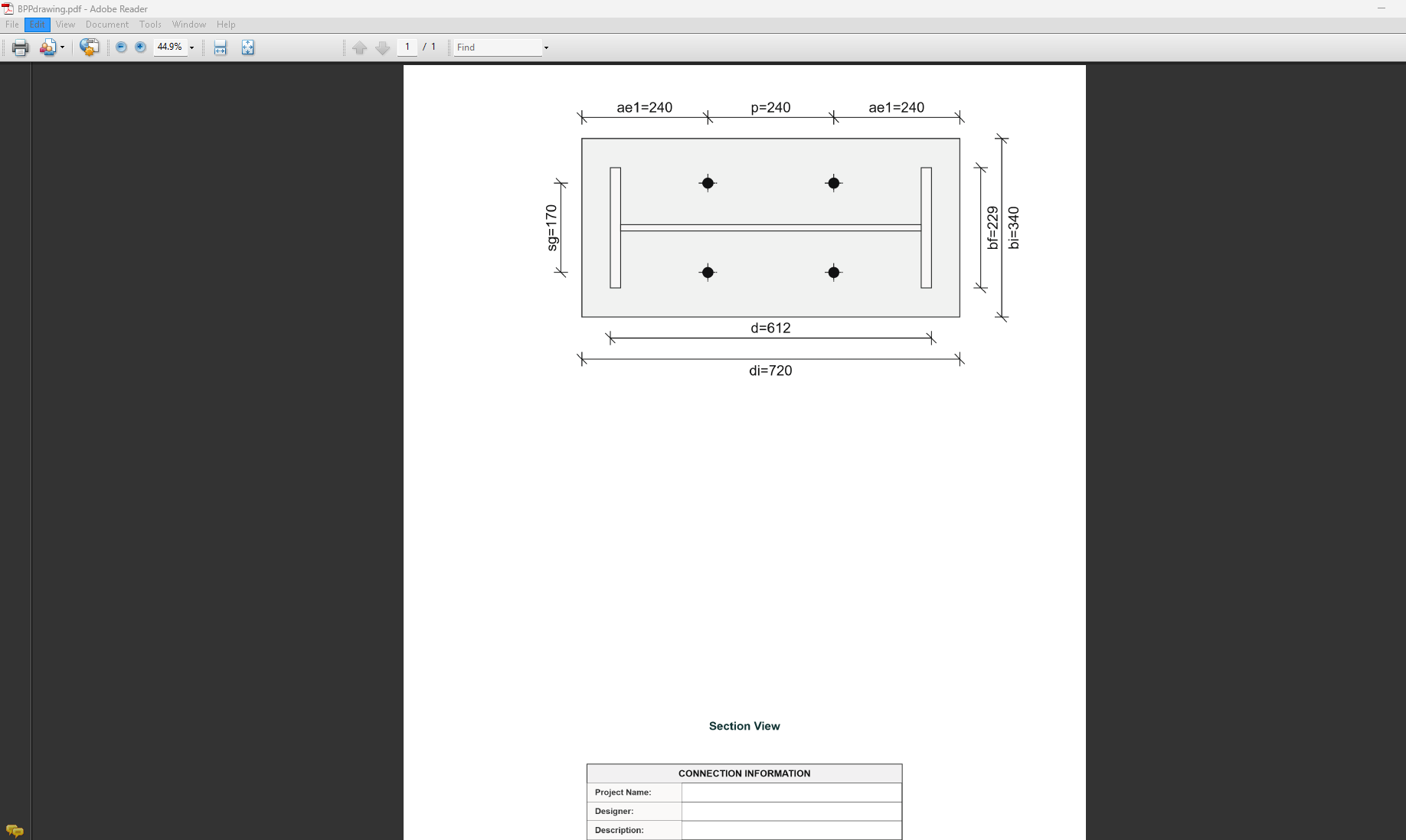

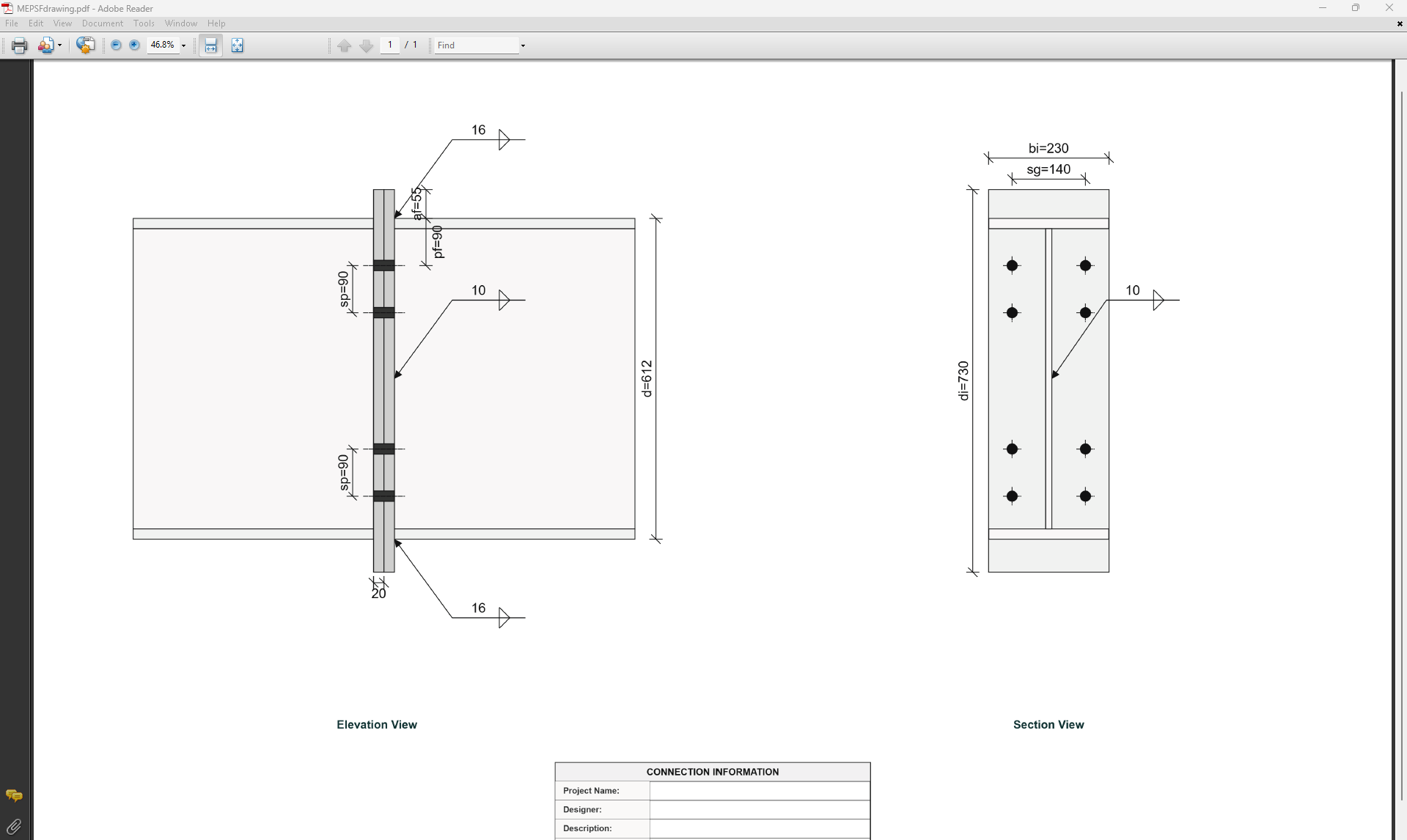

2D drawings and an interactive 3D model that follow your inputs
Real-time design checks with pass/fail indicators

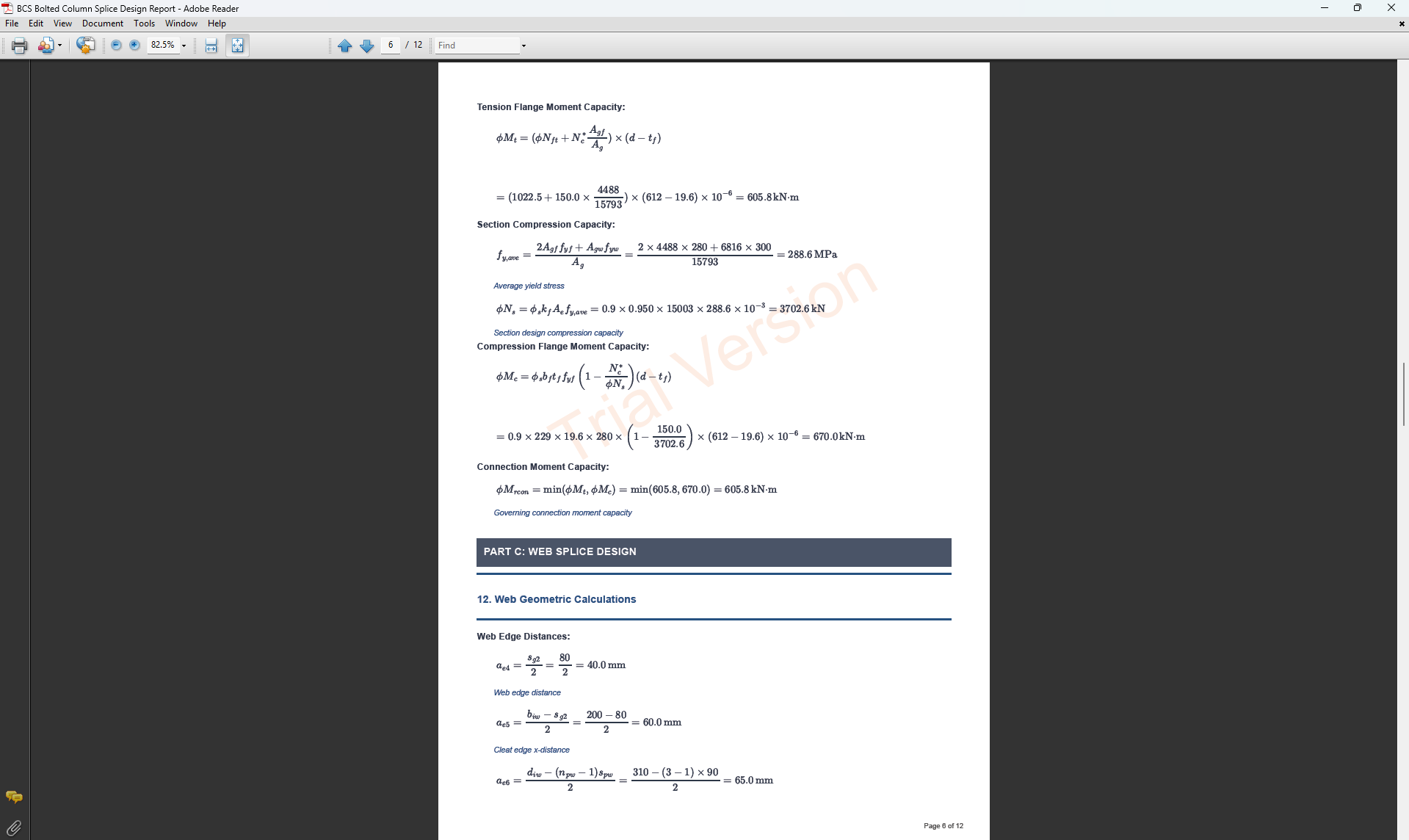

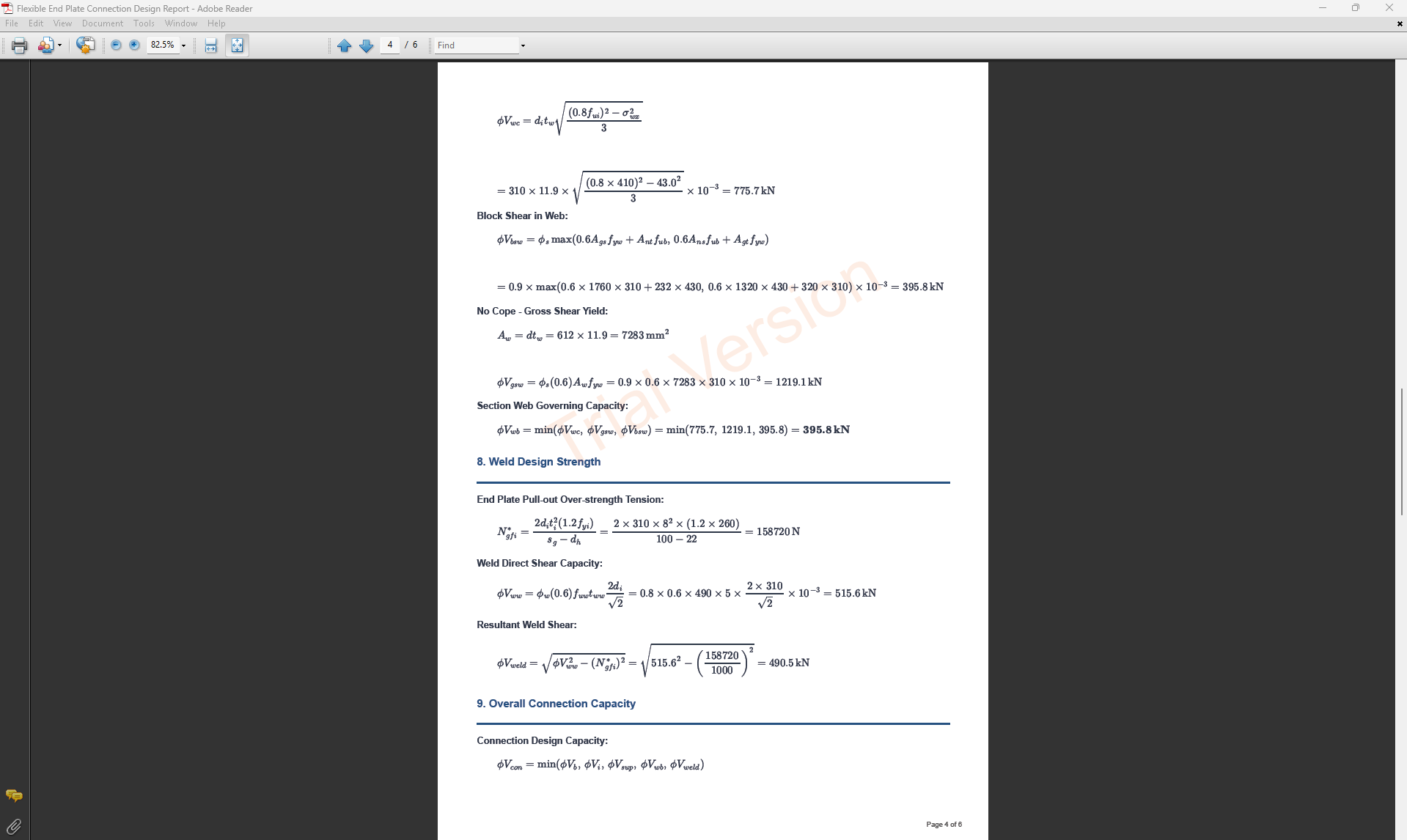

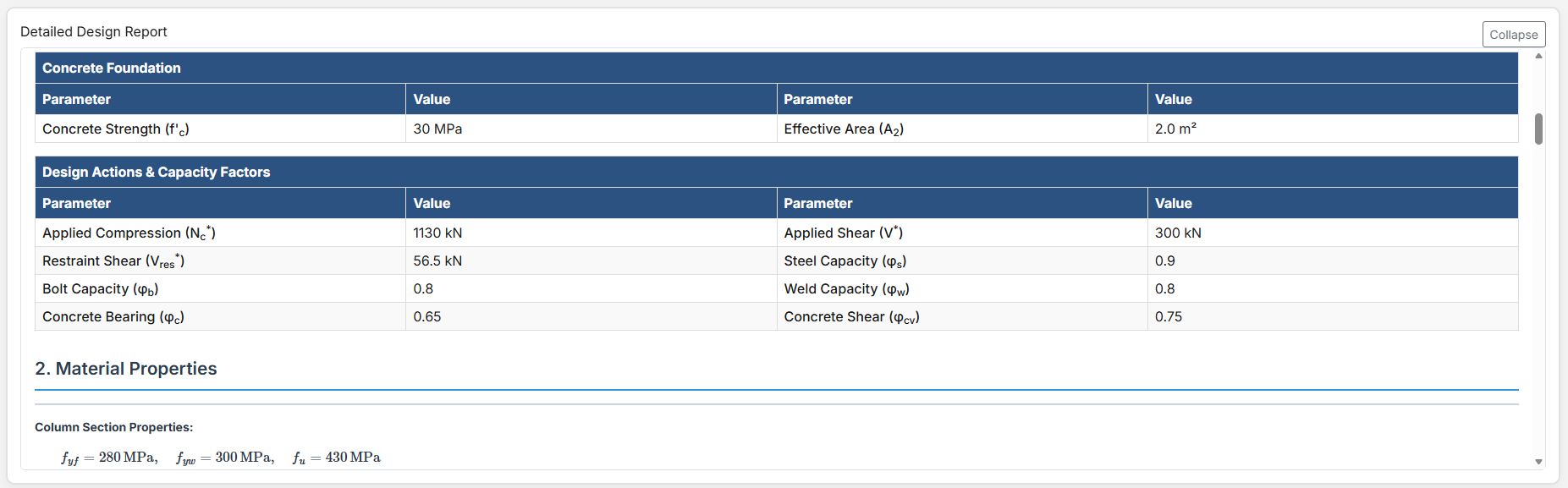

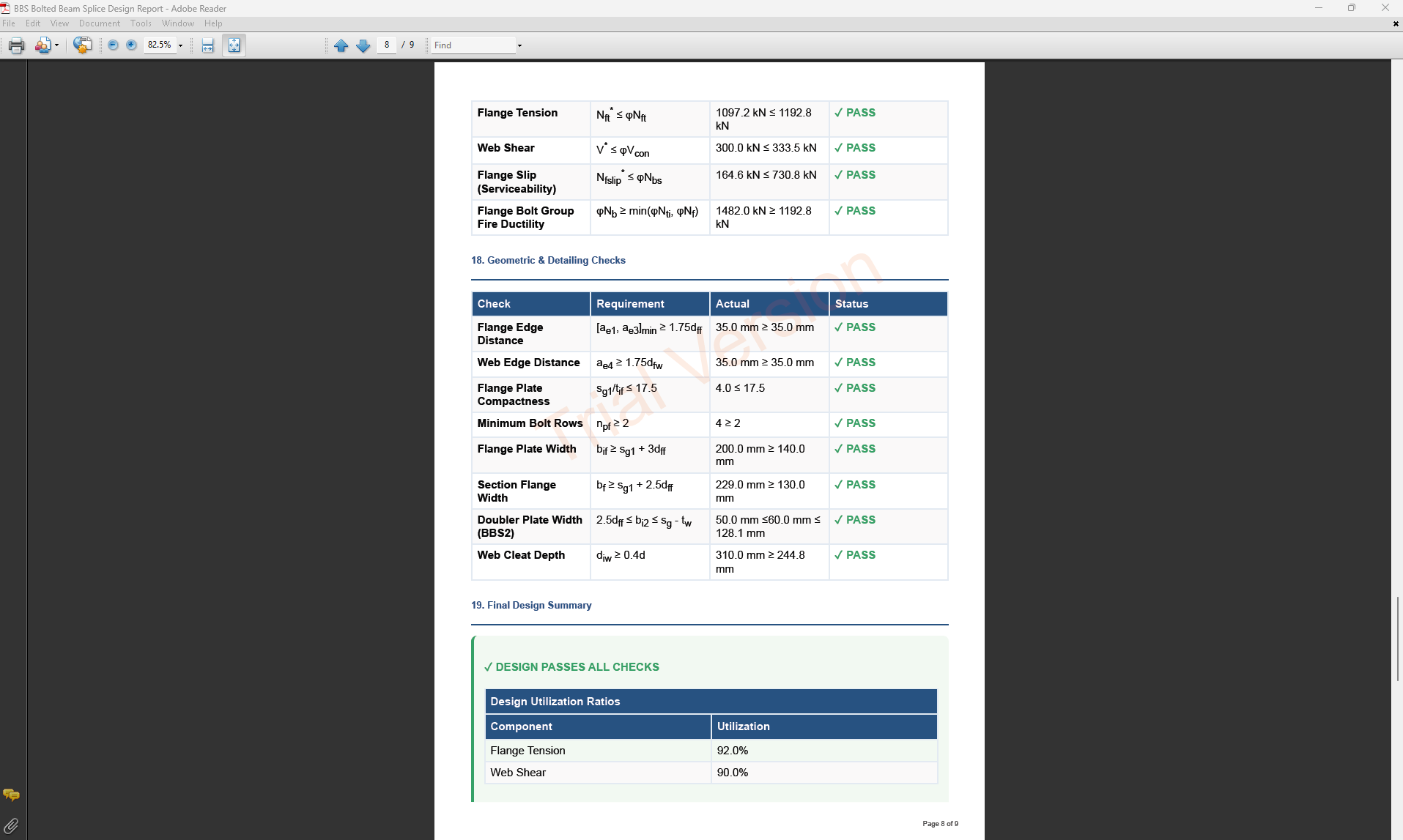

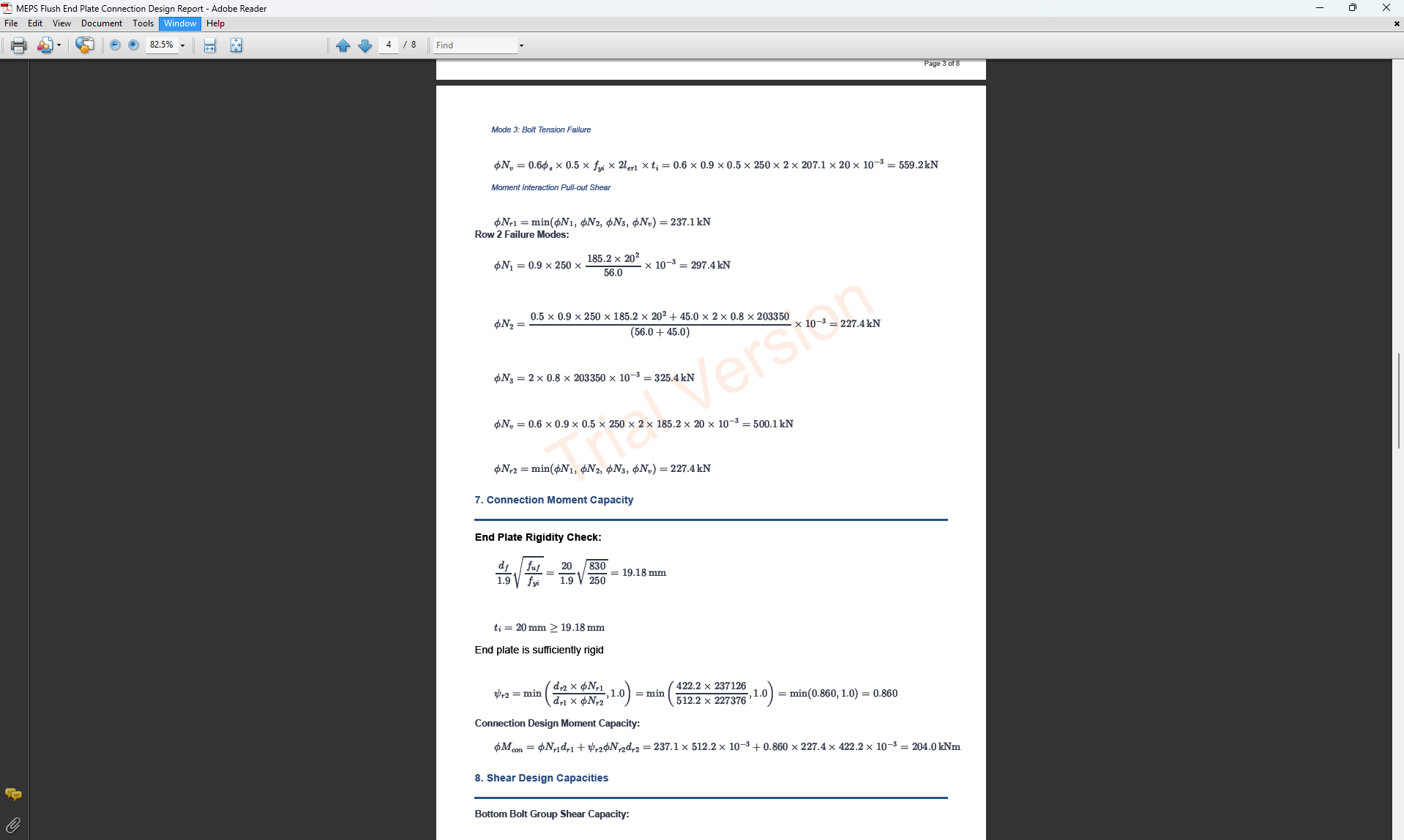

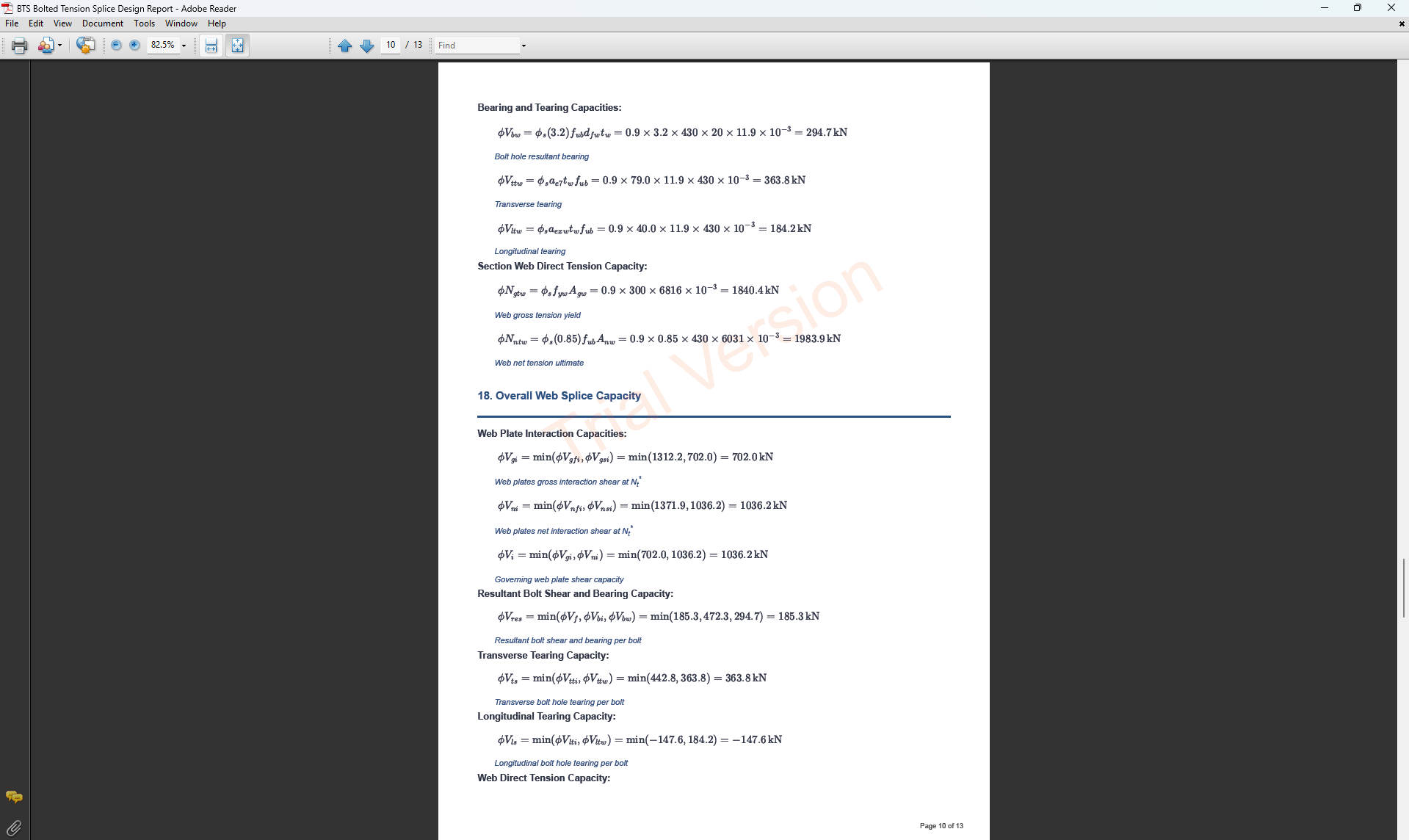

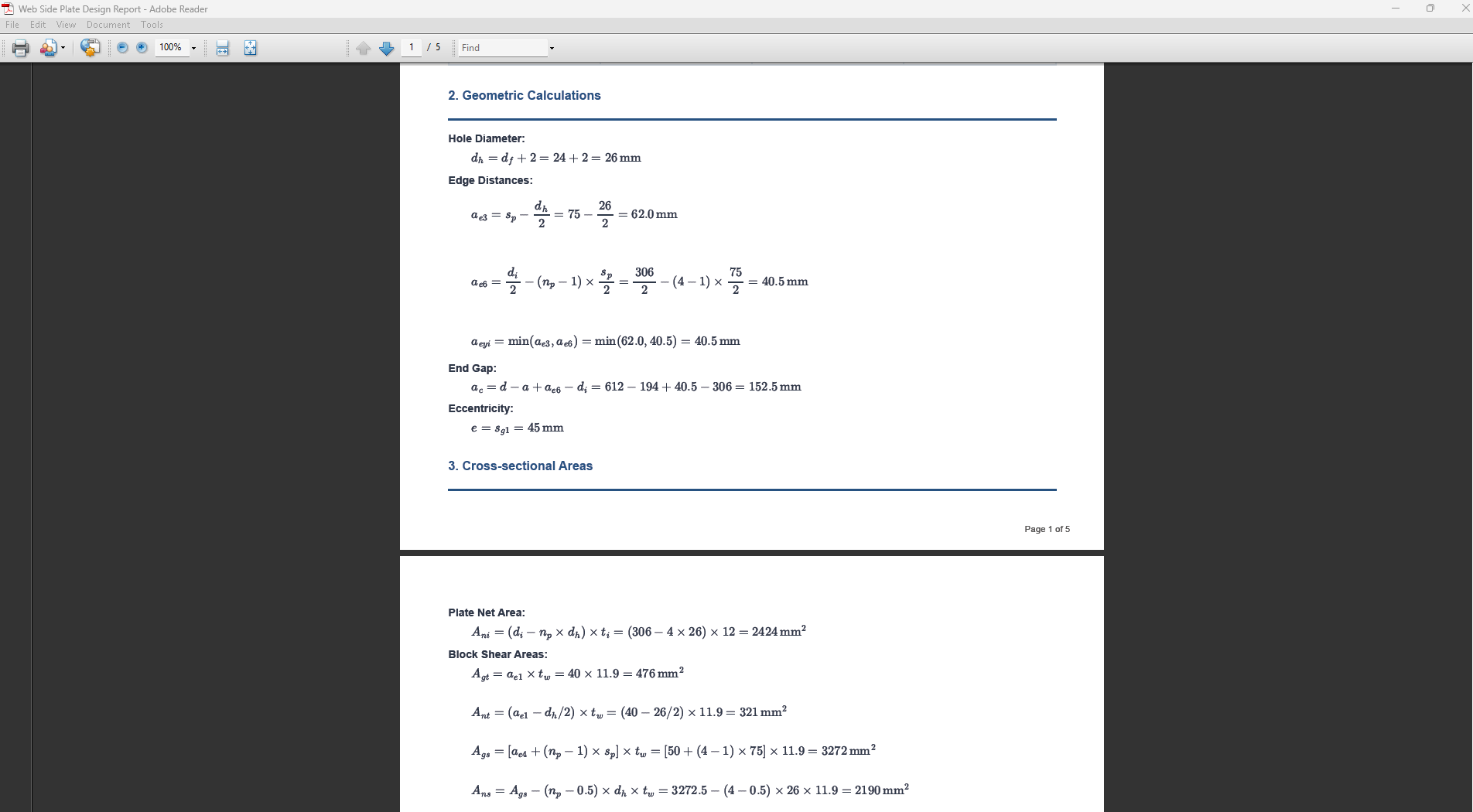

Comprehensive PDF reports with all calculations
Quick Start Guide
Choose your module: Beam Calculator, Member Design or Connection Design
Enter project details and specifications
Define geometry, supports, and loading conditions
Run analysis and review results
Export comprehensive PDF reports and save the project
Quick Start Guide
Getting Started: This guide will walk you through the basic workflow of the modules.
Beam Calculator Workflow
General Setup: Define beam length, material properties, and section type
Add Supports: Place supports along the beam with appropriate restraints
Apply Loads: Add point loads, distributed loads, or moments

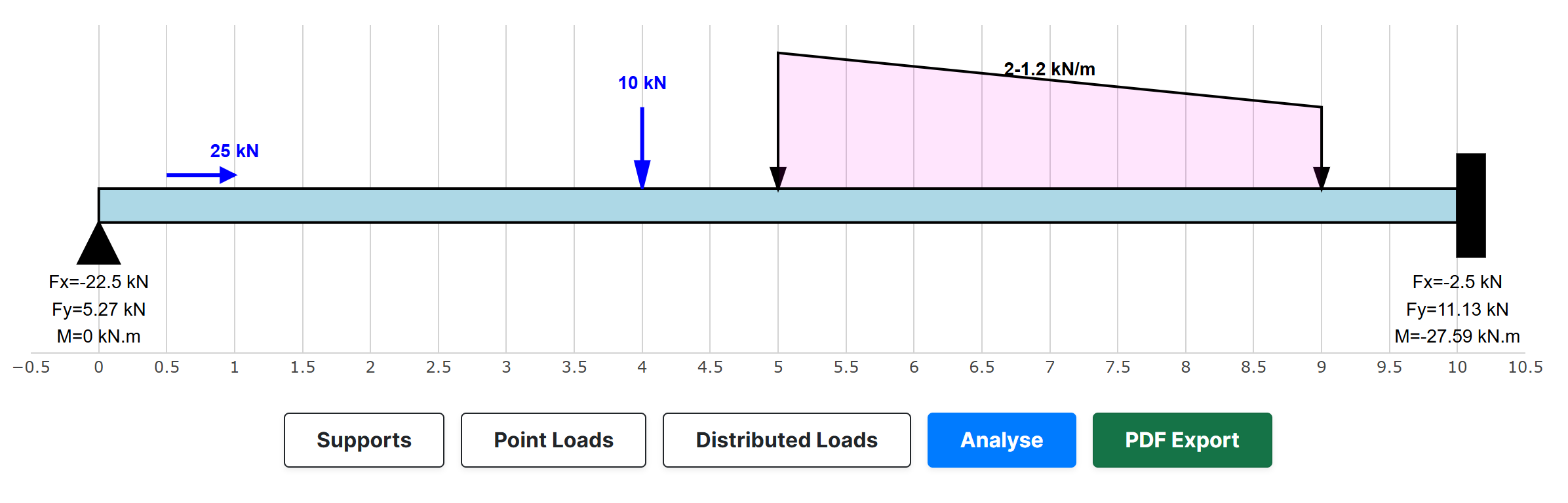

Calculate: Log in (free) and run the analysis to get the reactions and the force and deflection diagrams
Export: Download results as a PDF report, and save the beam as a project
Member Design Workflow
Project Details: Enter project information and metadata
Member Details: Enter the member yourself or import it from an analysis model, then define the section, segments and restraints
Forces: Input the forces at stations along the member or for each segment, or choose the imported load combinations
Design: Run the design check according to the selected standard
Results: Review capacity ratios, choose the report type and export the PDF

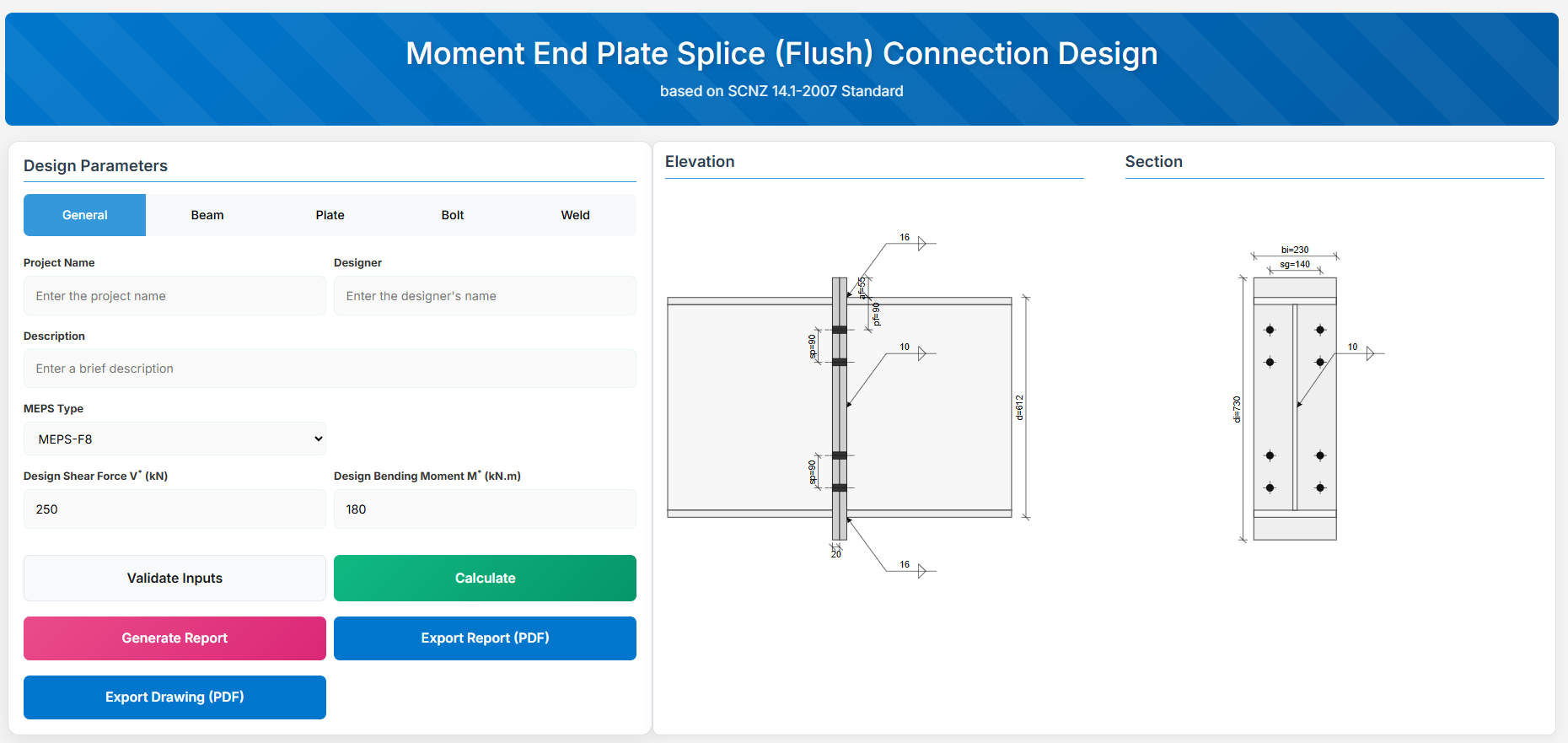

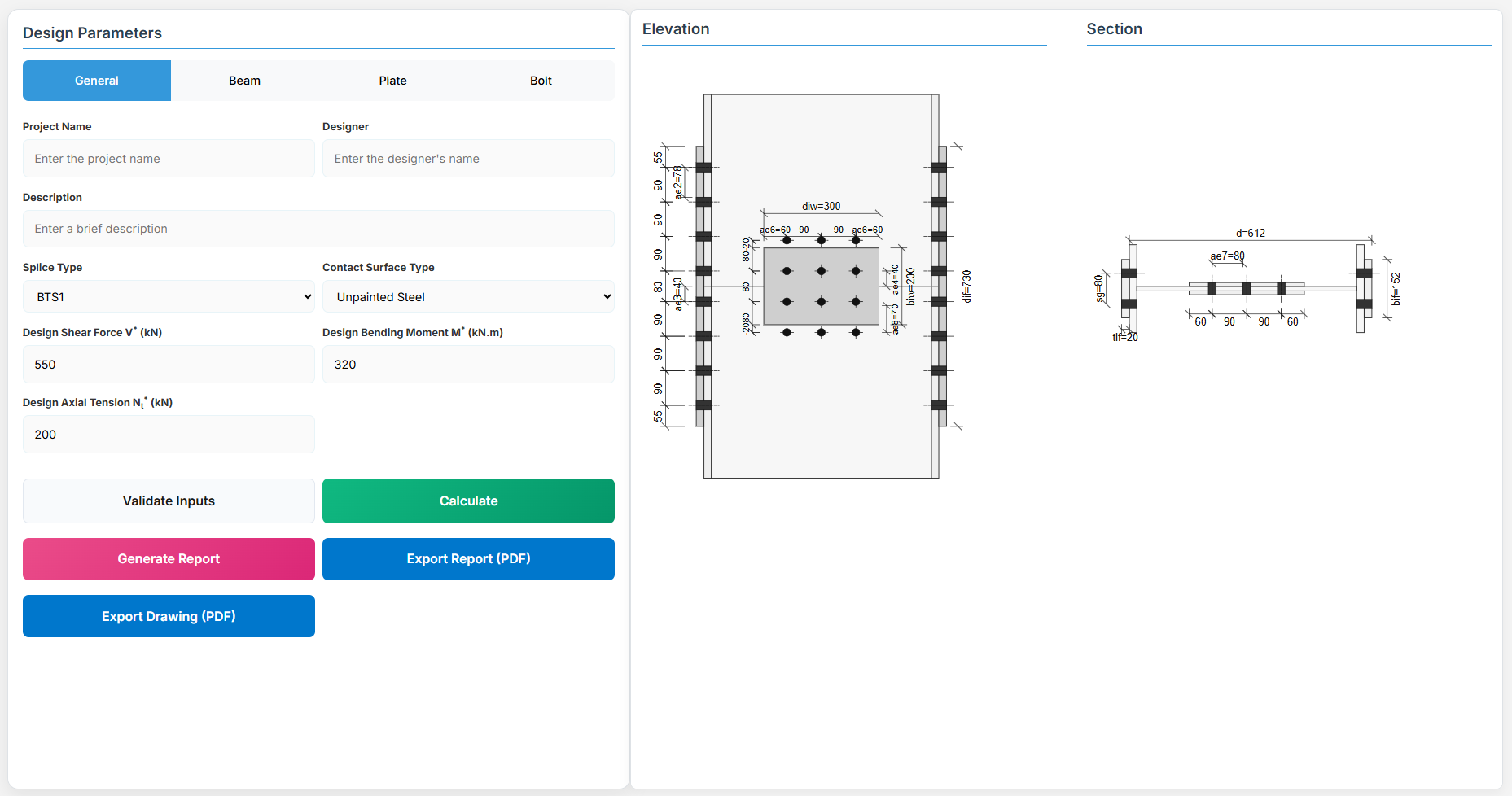

Connection Design Workflow

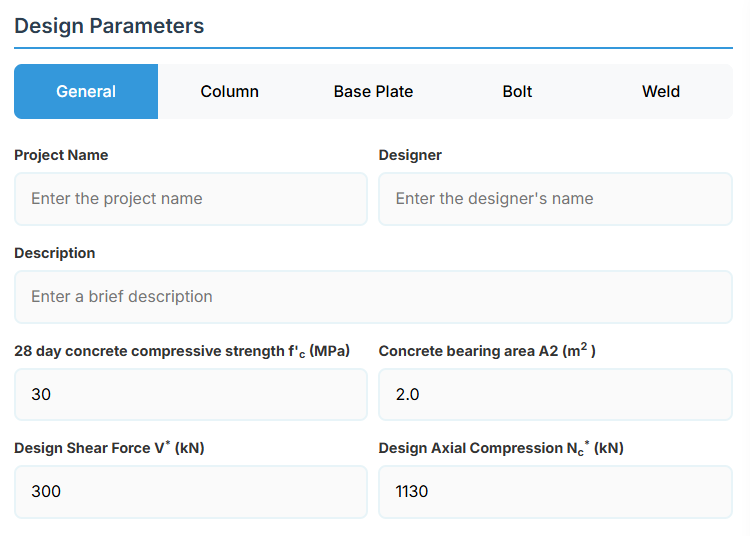

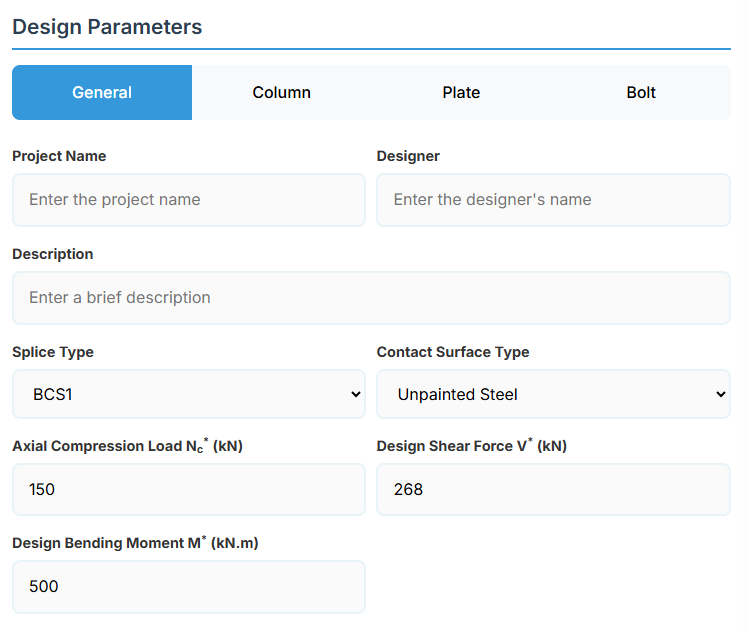

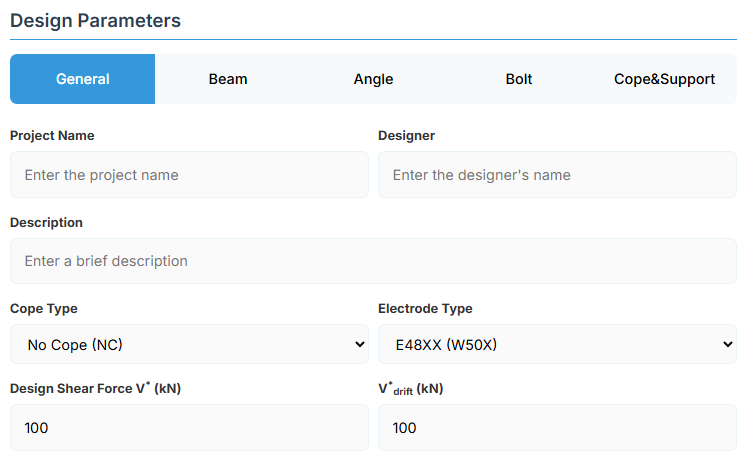

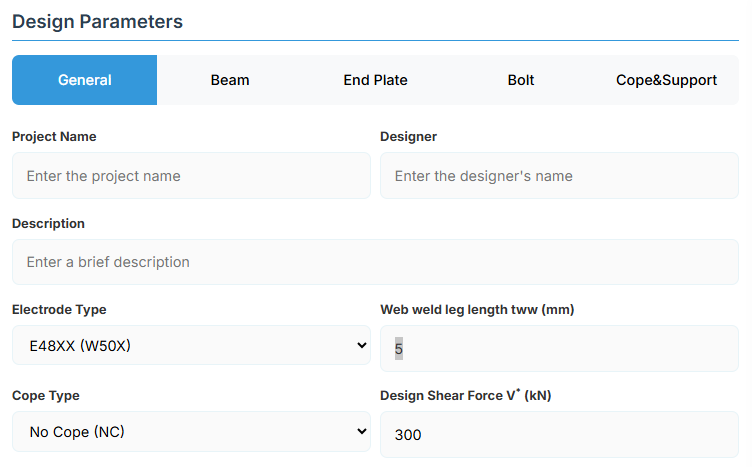

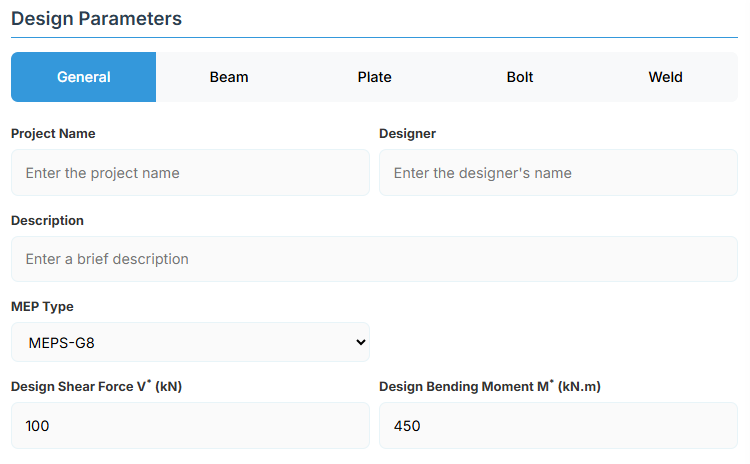

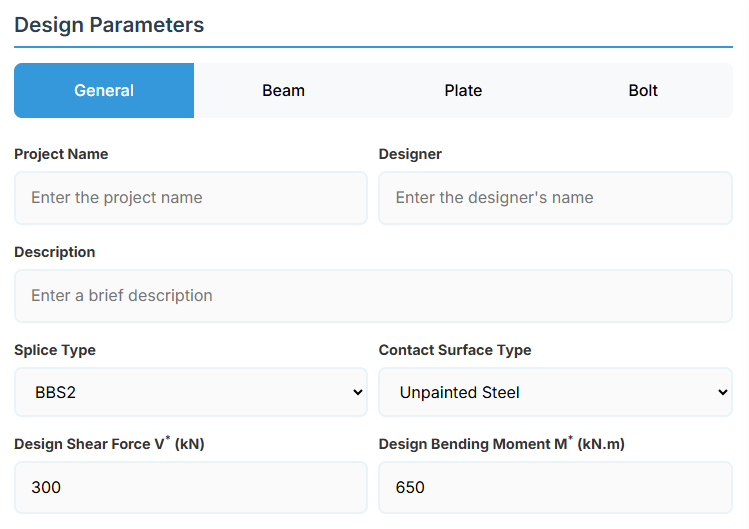

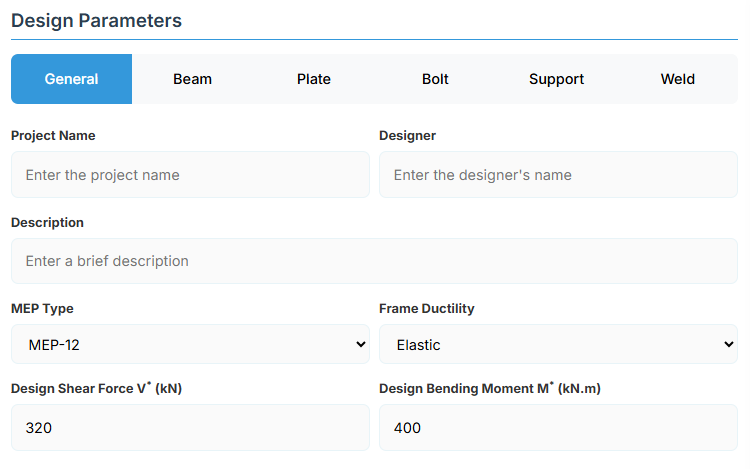

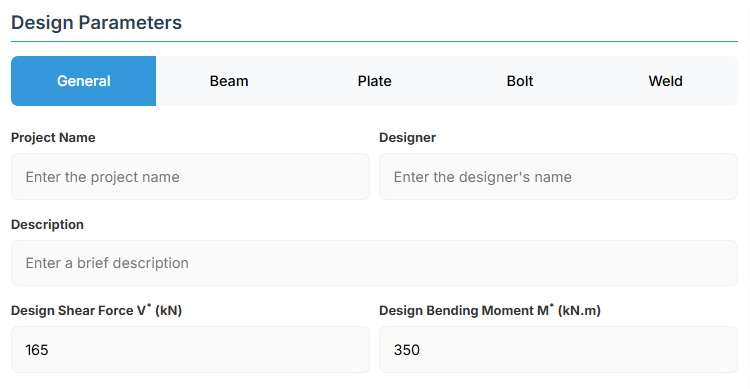

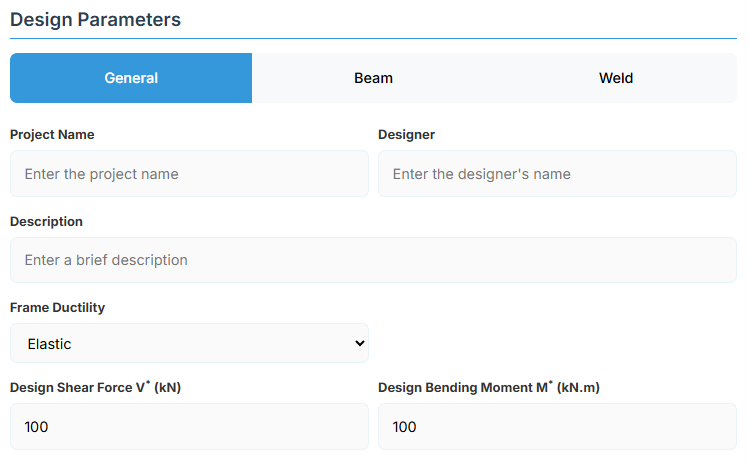

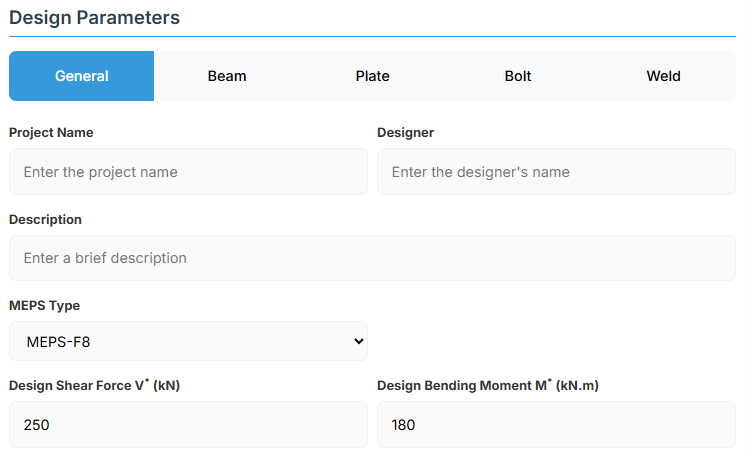

Connection: Choose the design code and the connection in the connection catalogue, then enter project details and design actions

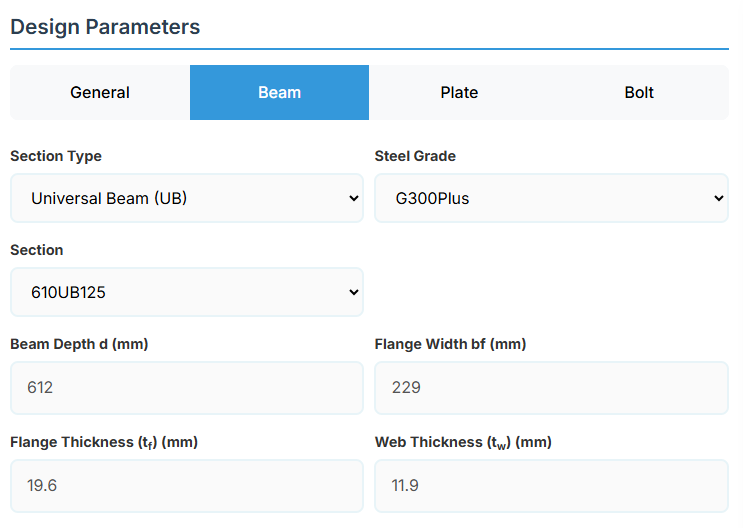

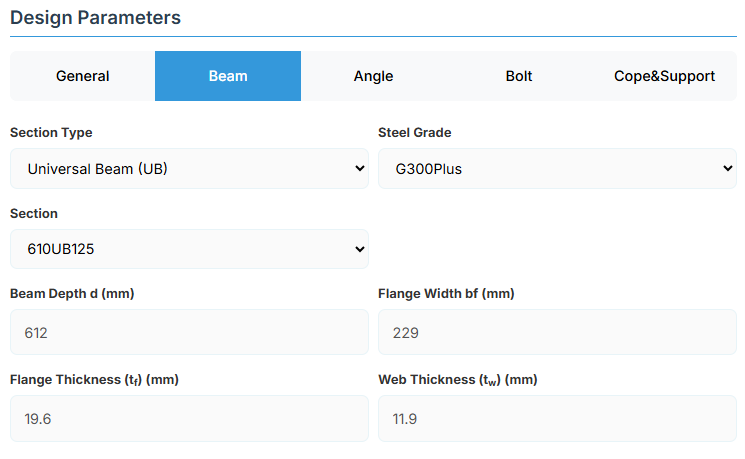

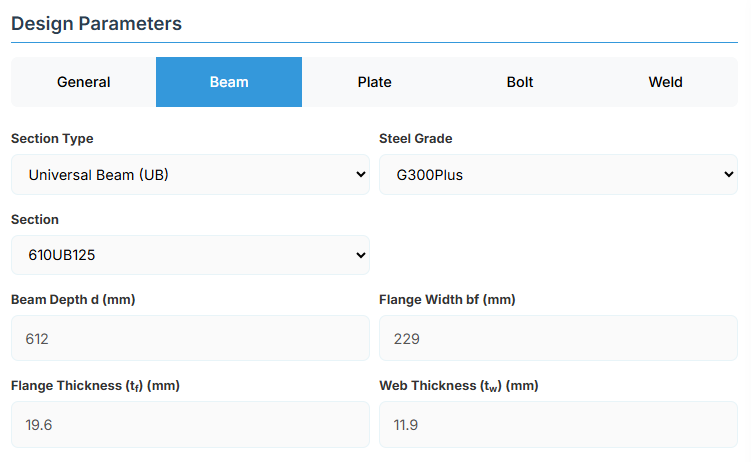

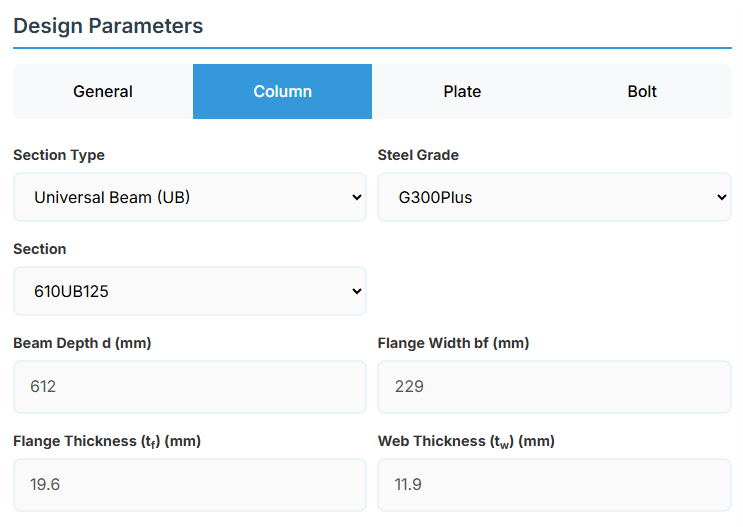

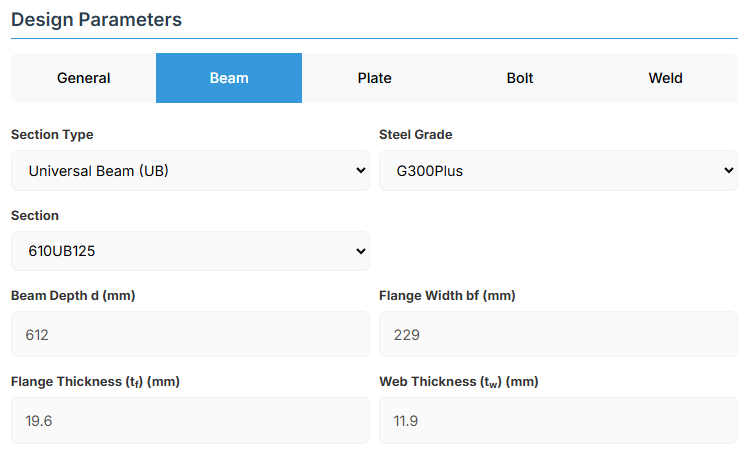

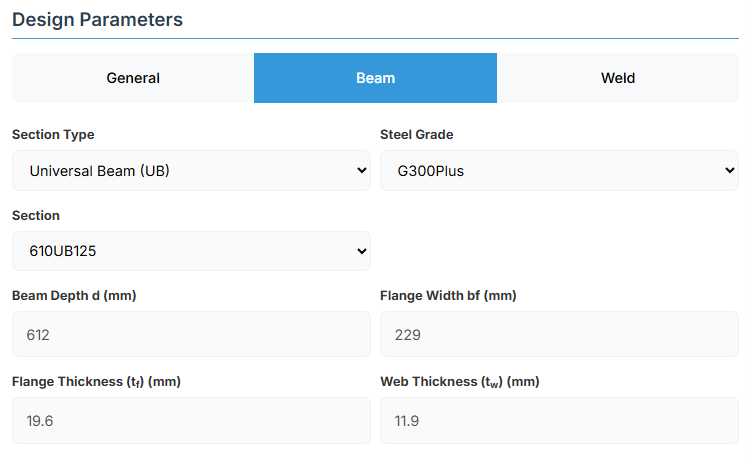

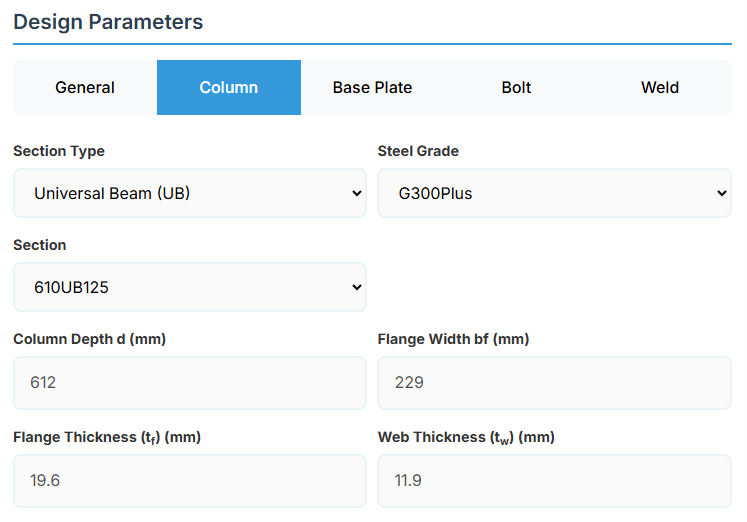

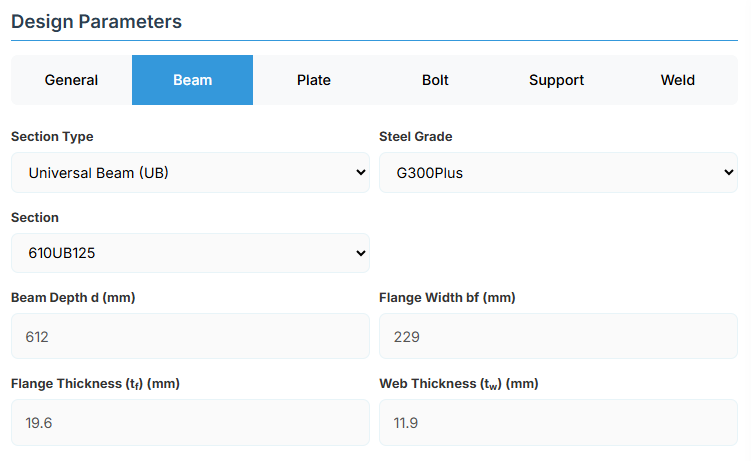

Member Properties: Select section type, grade, and dimensions for beam/column

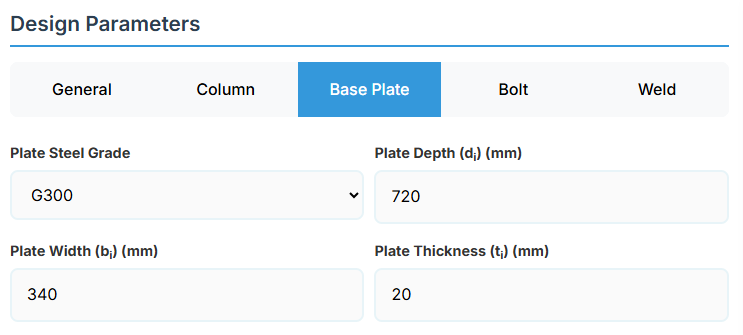

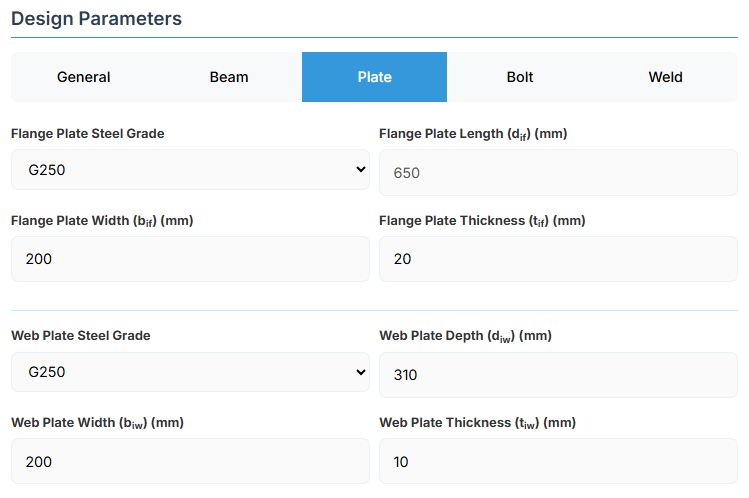

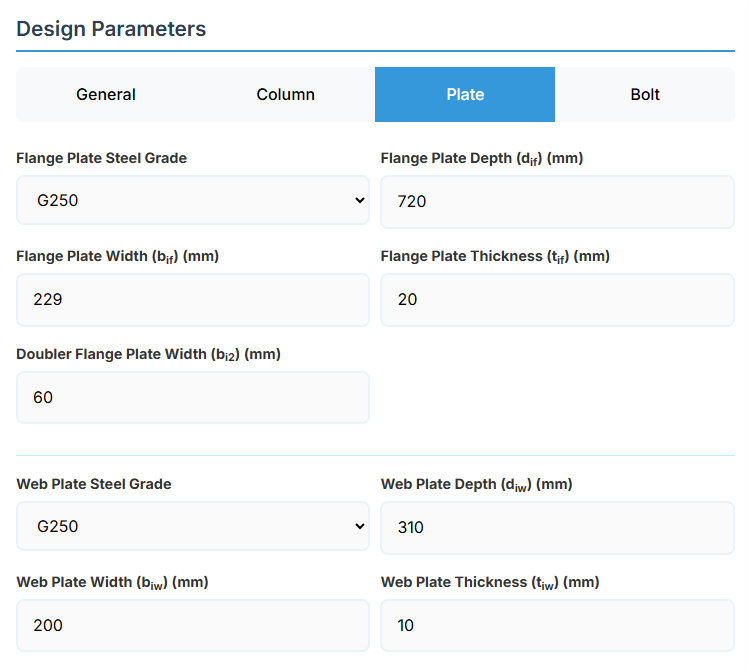

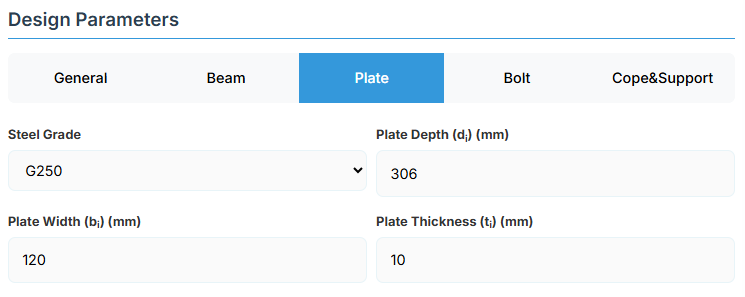

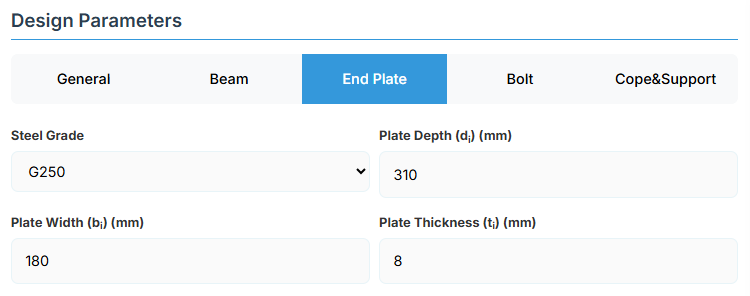

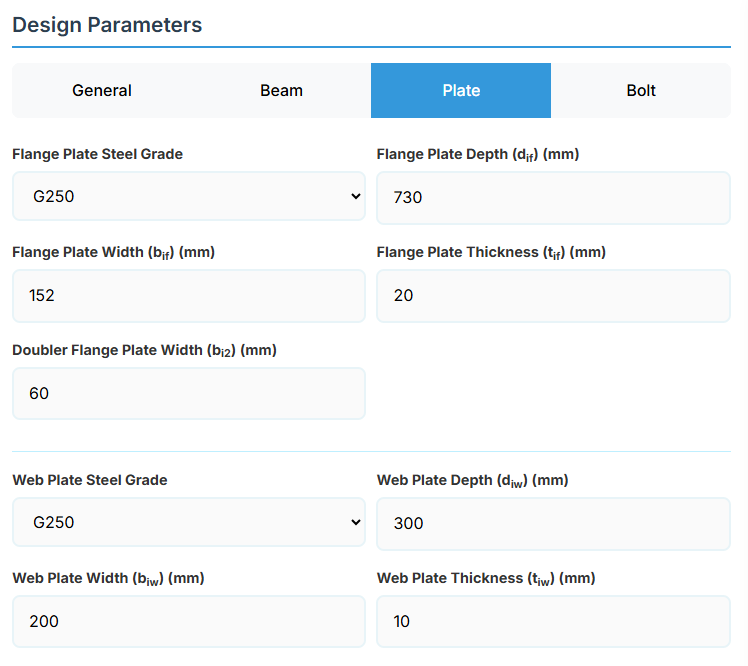

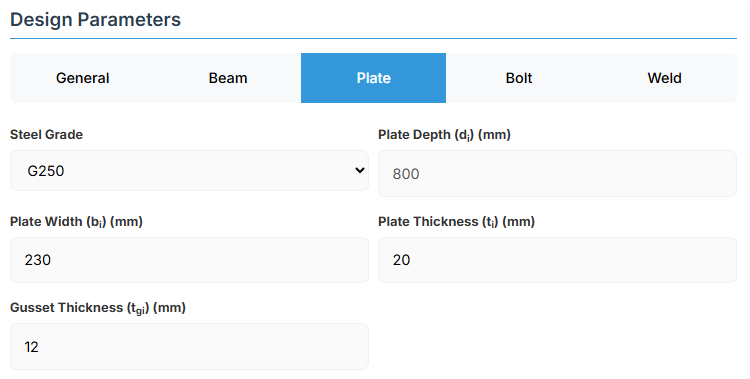

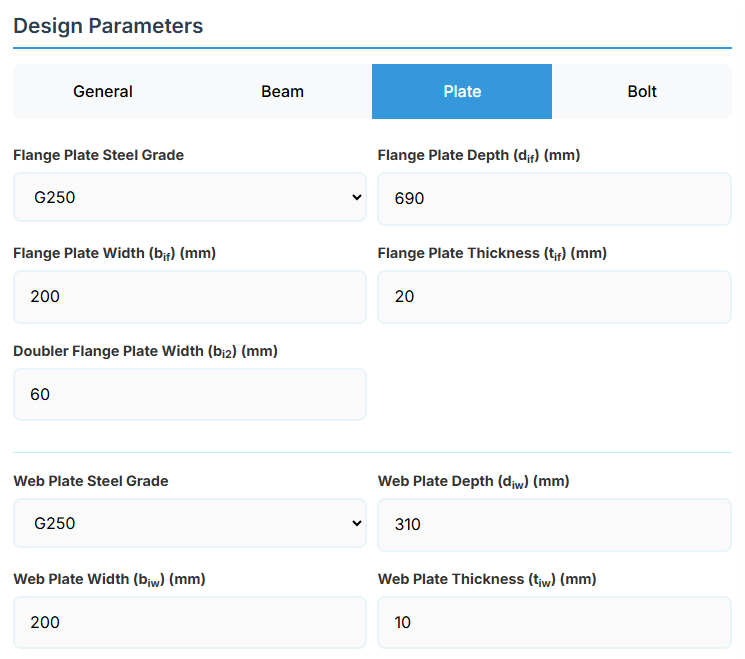

Plate Details: Specify plate grade, dimensions, and geometry

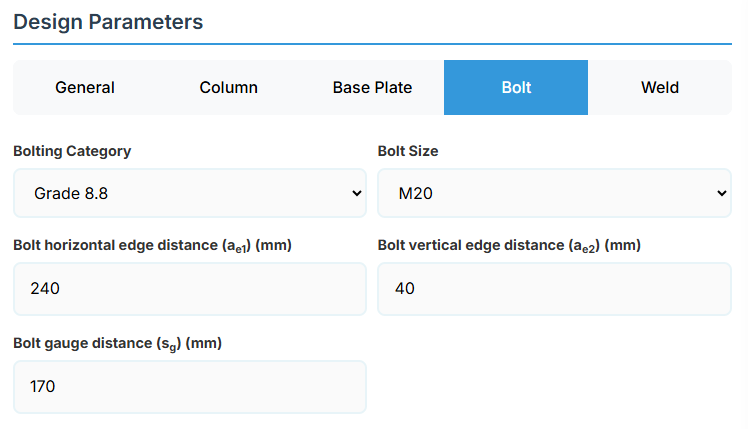

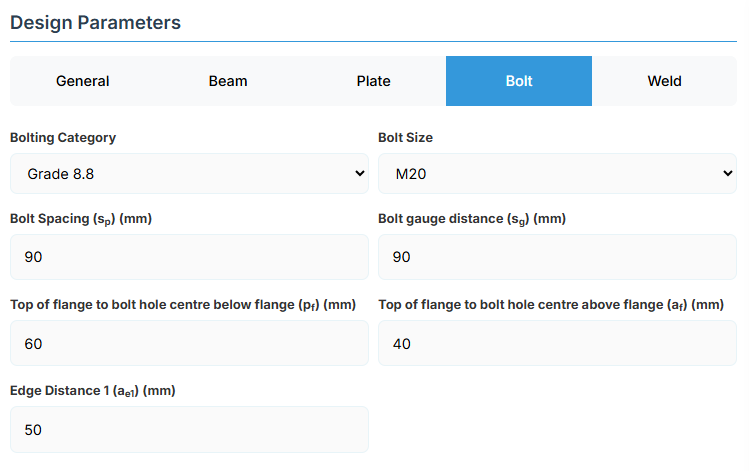

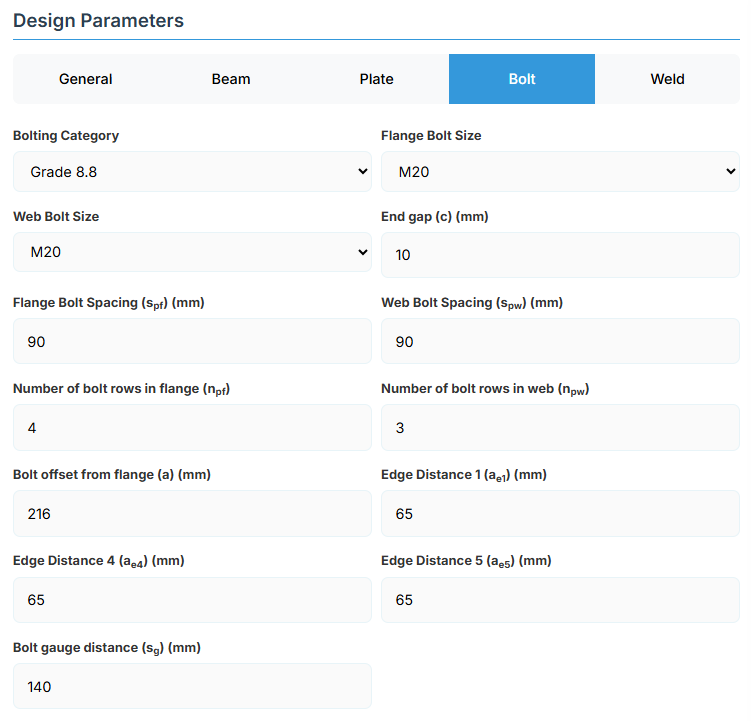

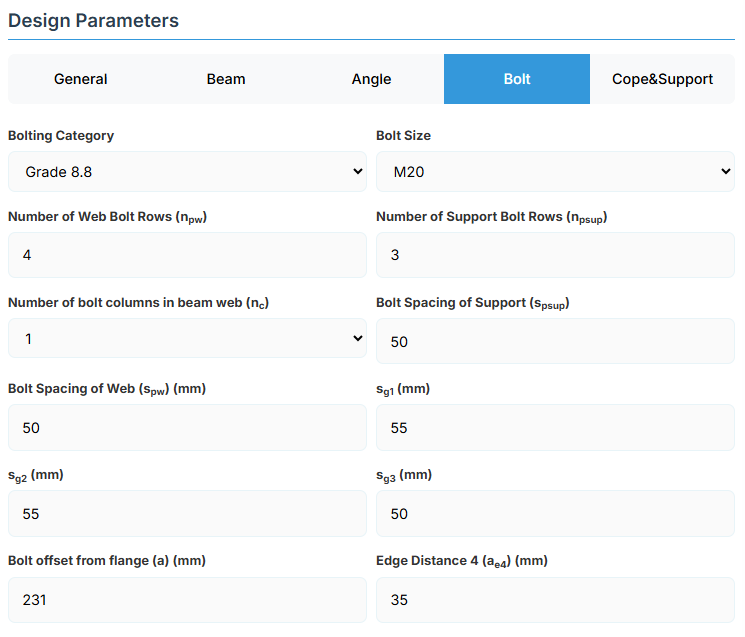

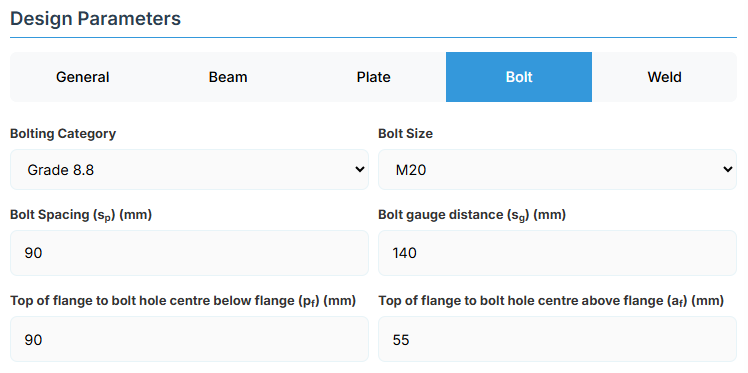

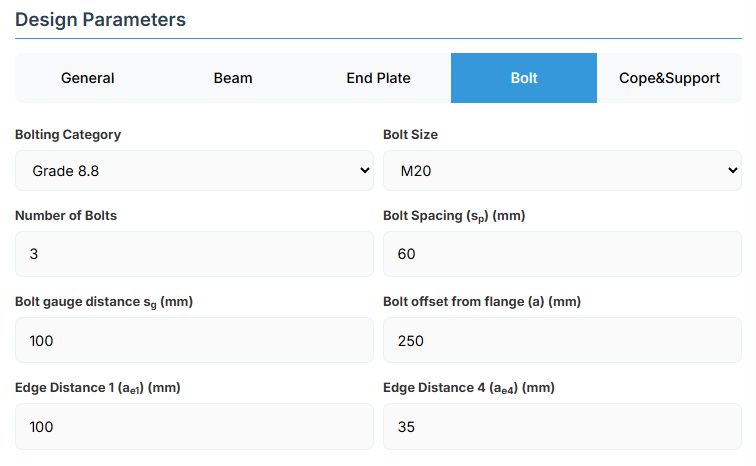

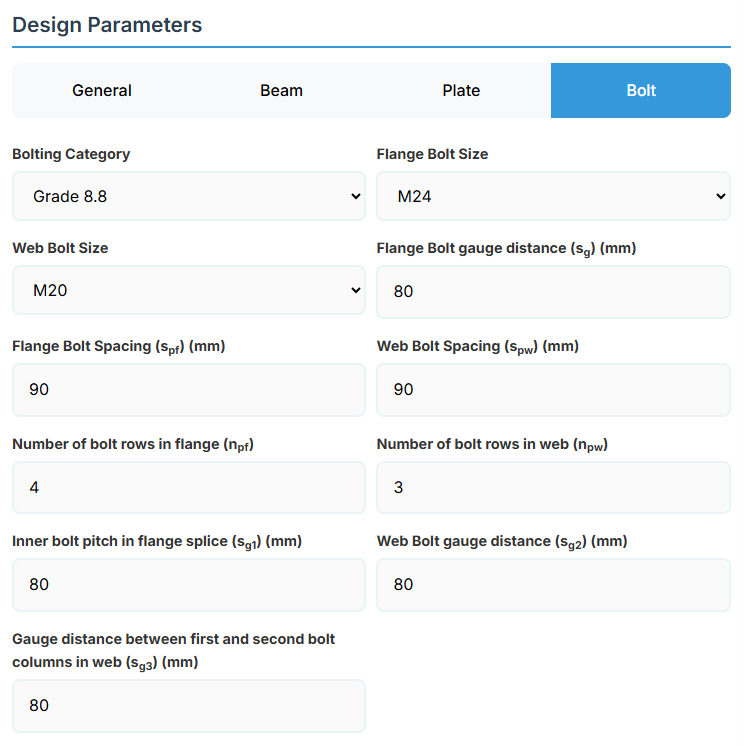

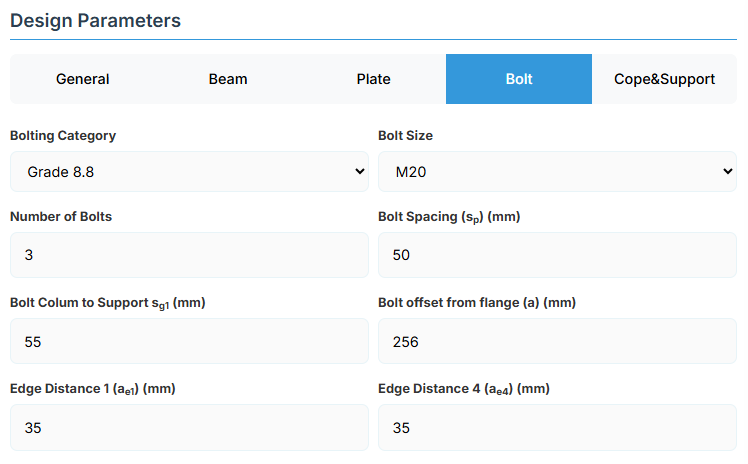

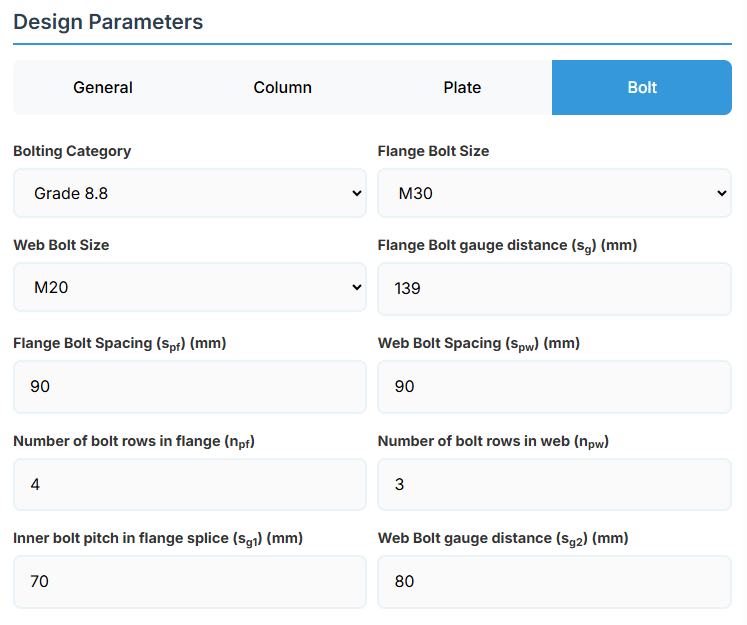

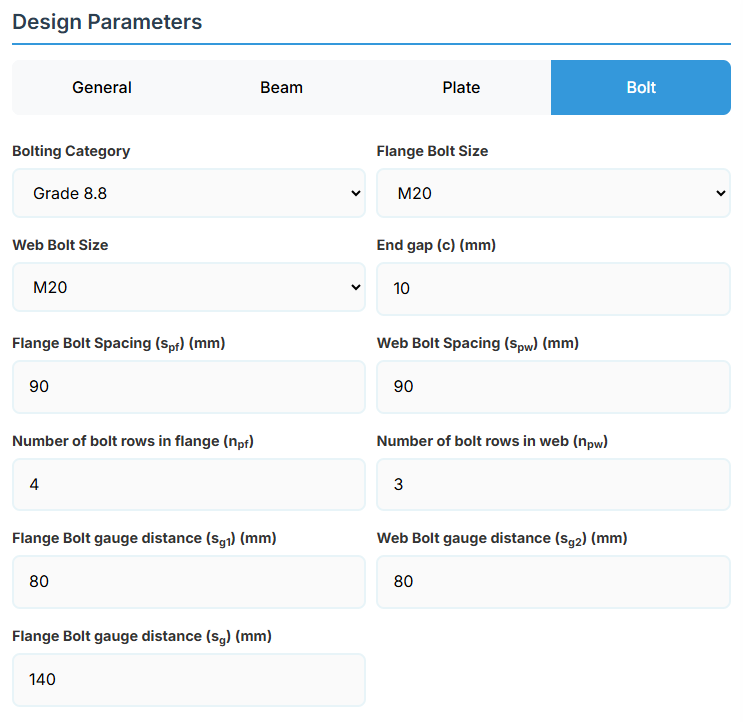

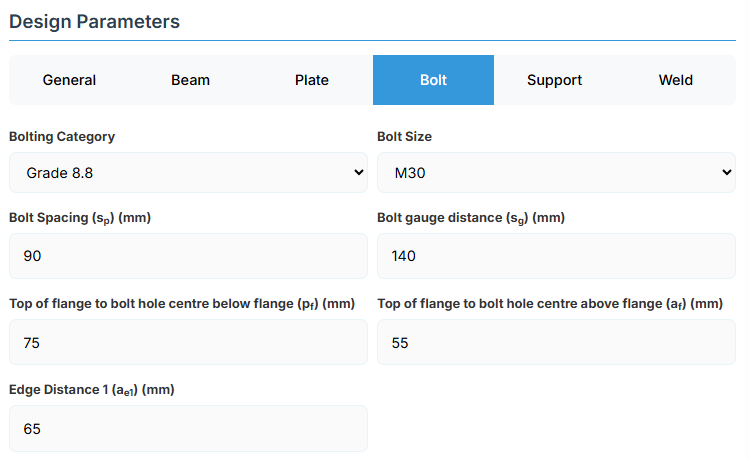

Bolt Configuration: Define bolting category, sizes, spacing, and layout

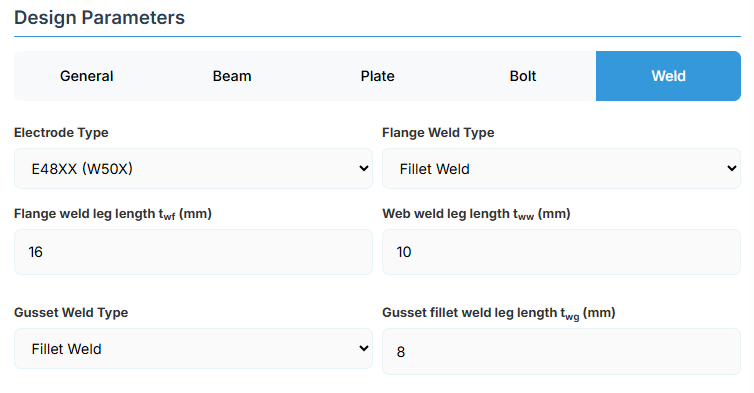

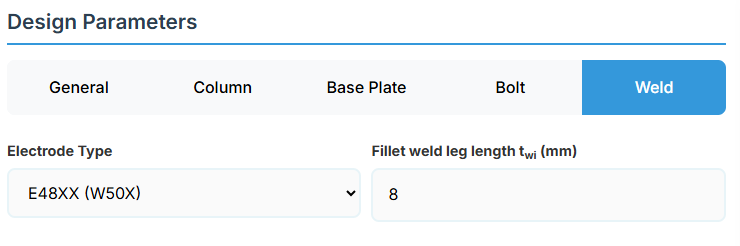

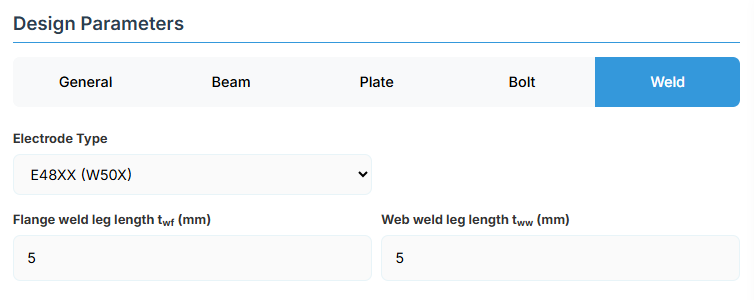

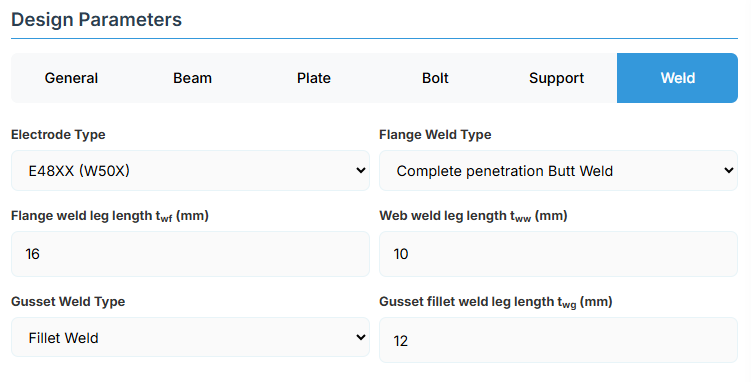

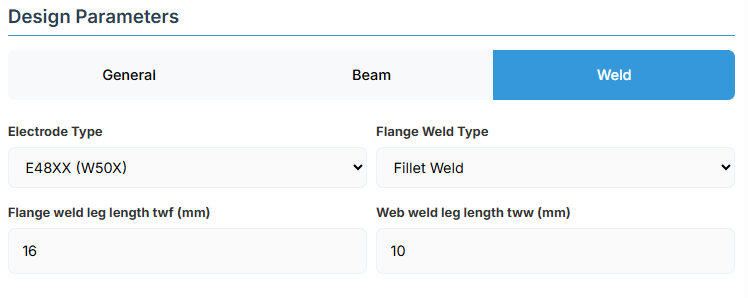

Weld Details: Select electrode type and weld sizes (if applicable)

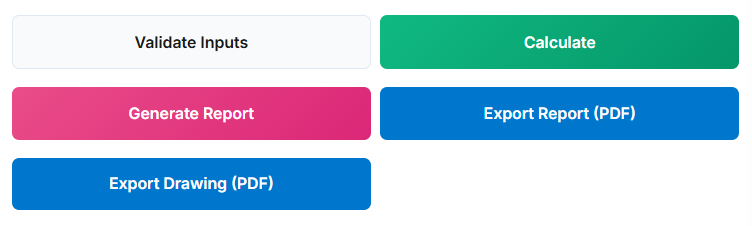

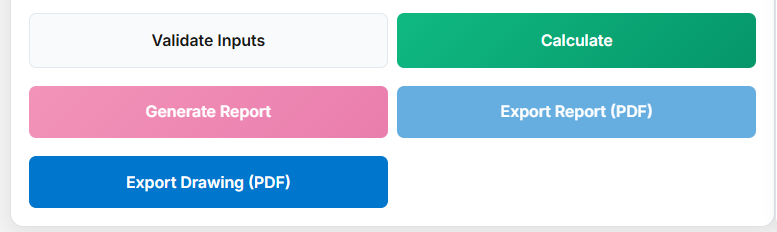

Design: Validate inputs and run the calculation to the selected design code

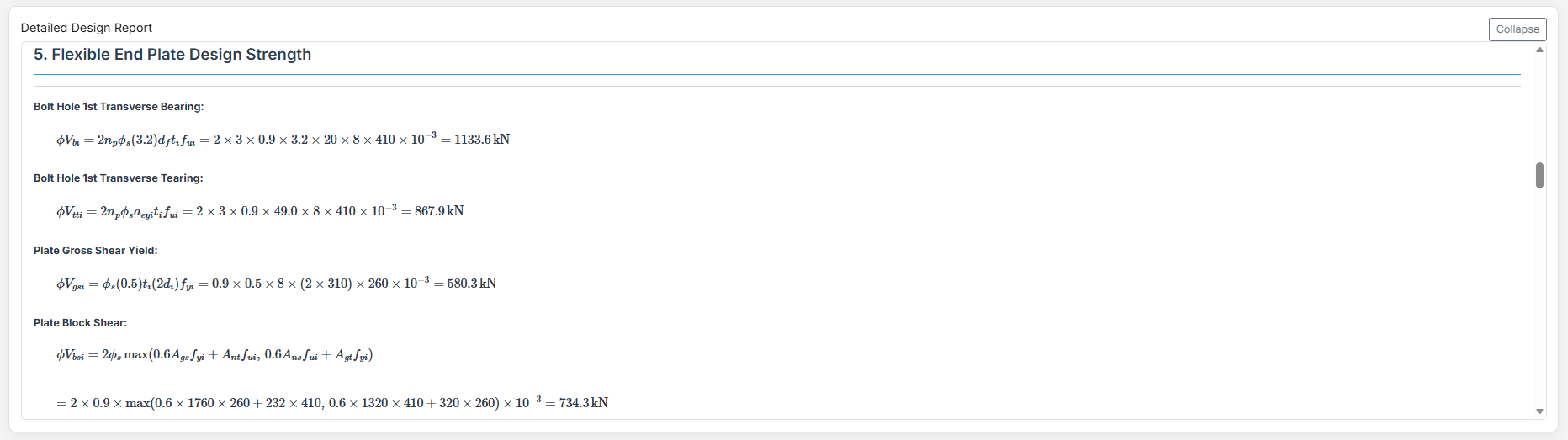

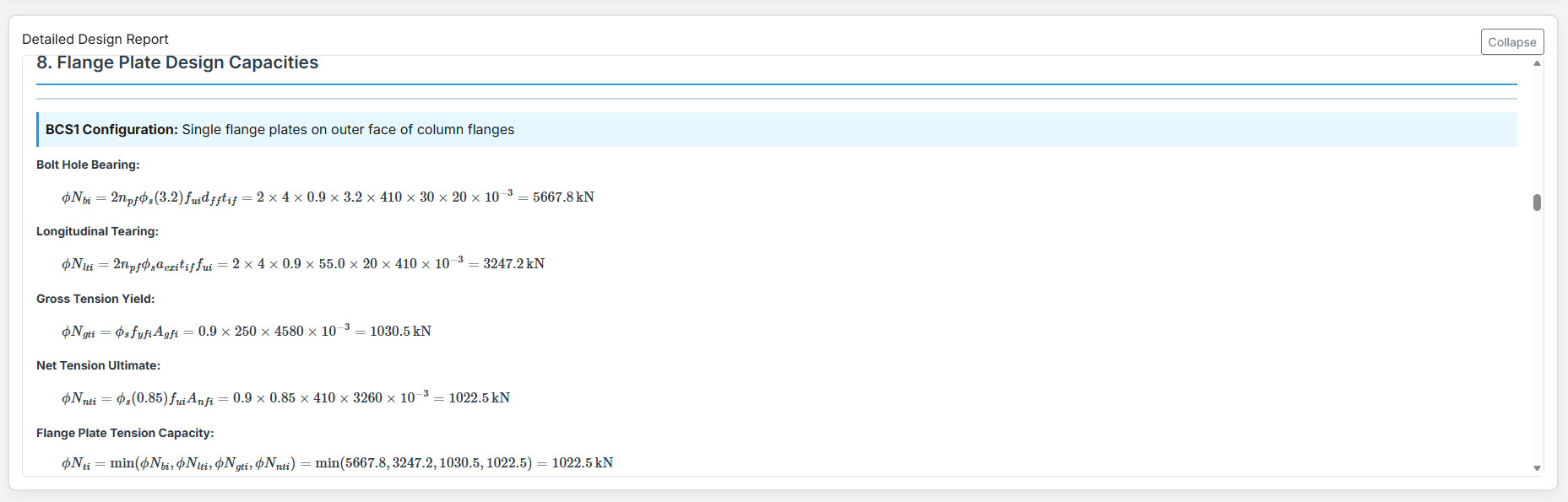

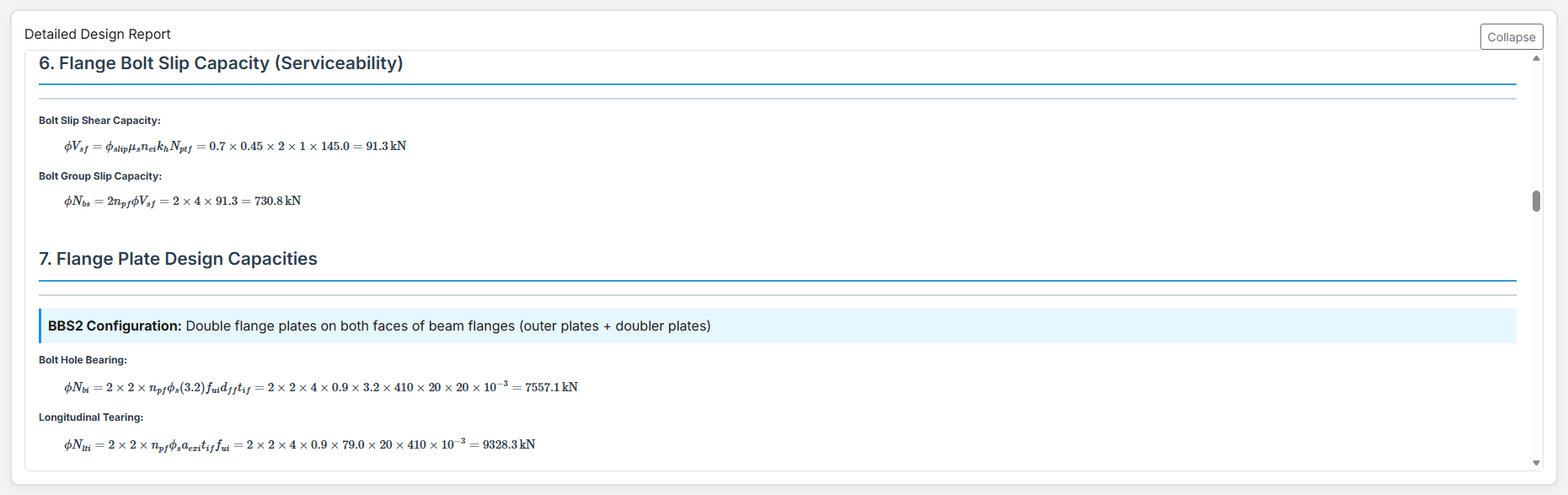

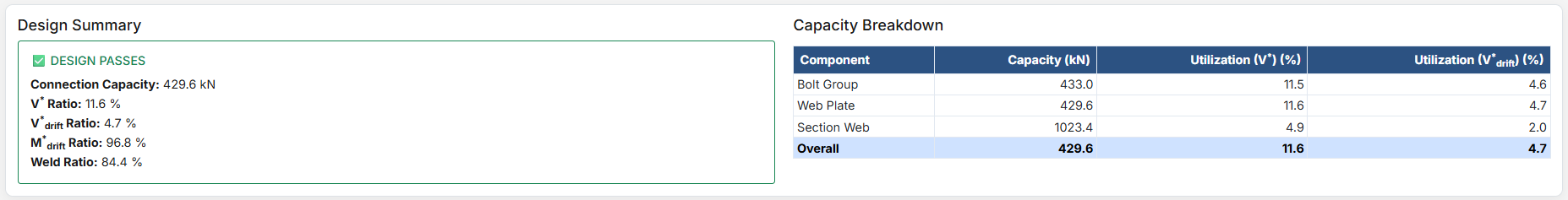

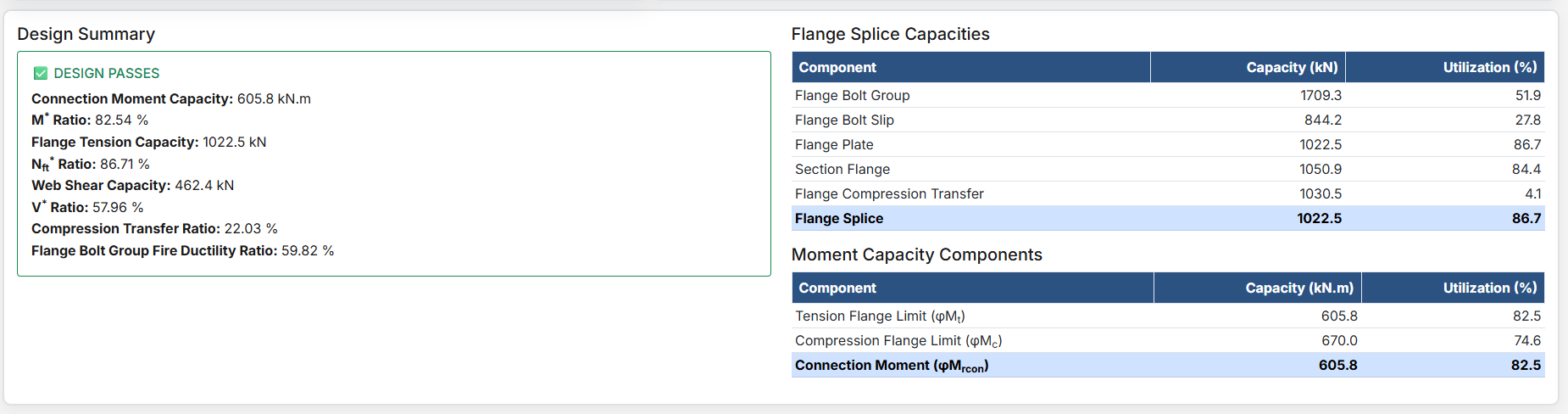

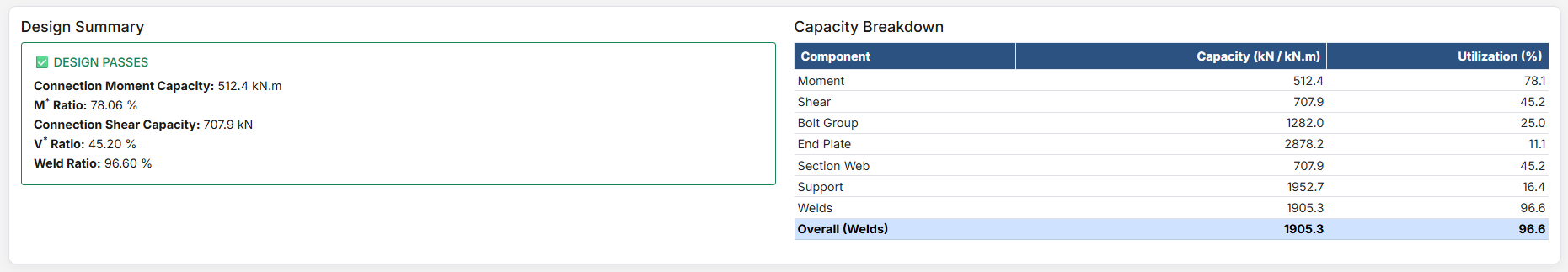

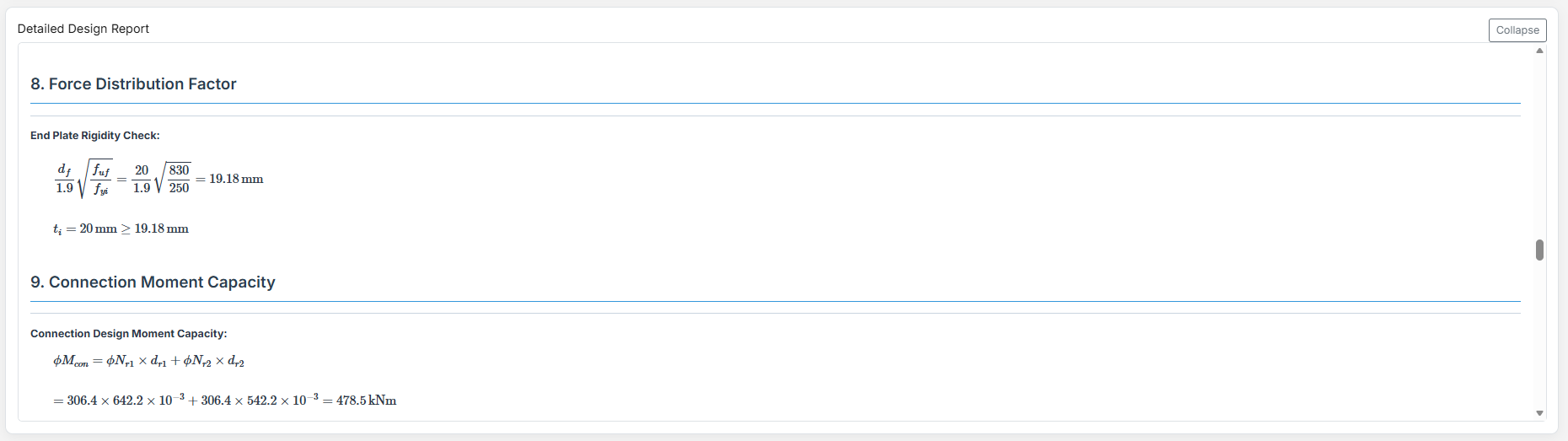

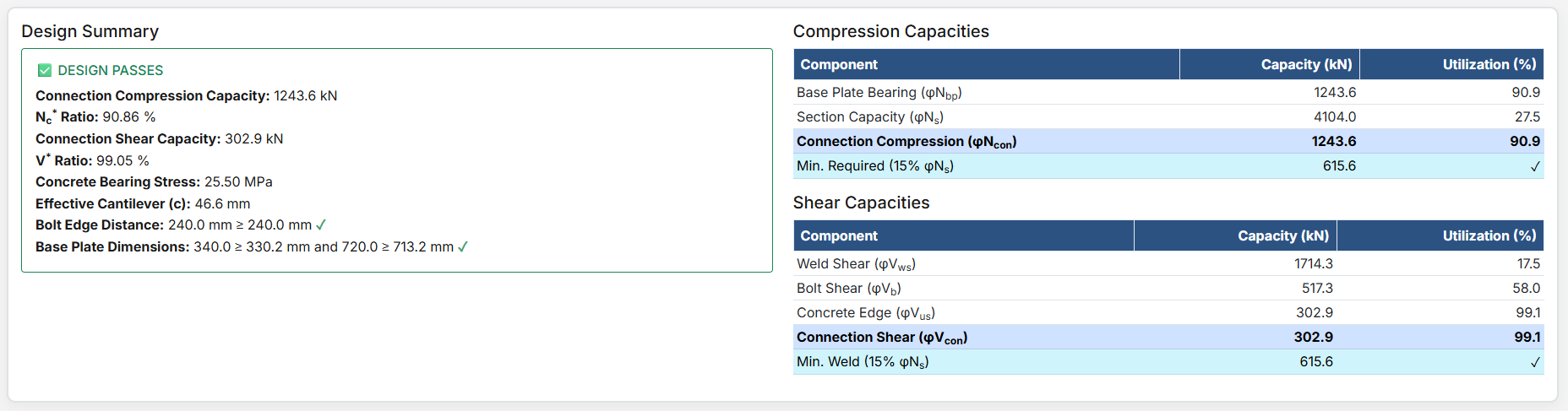

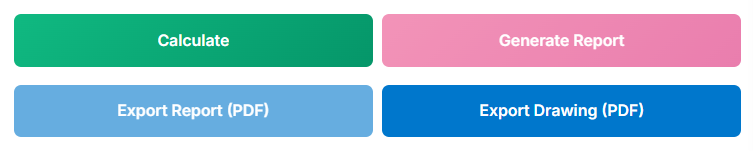

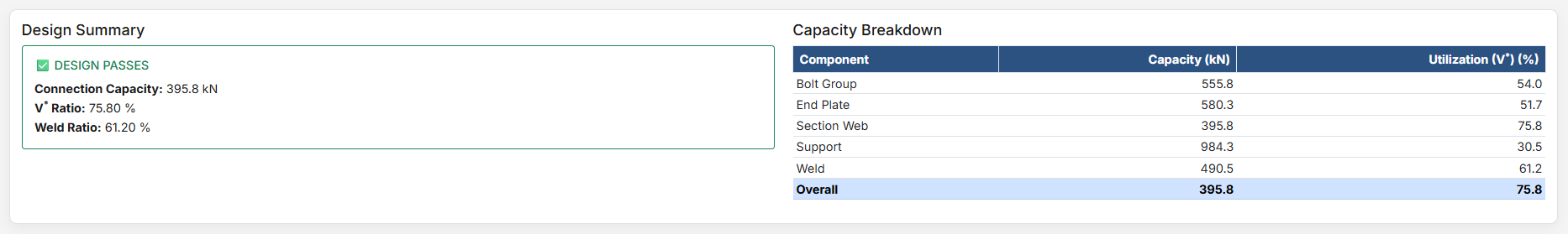

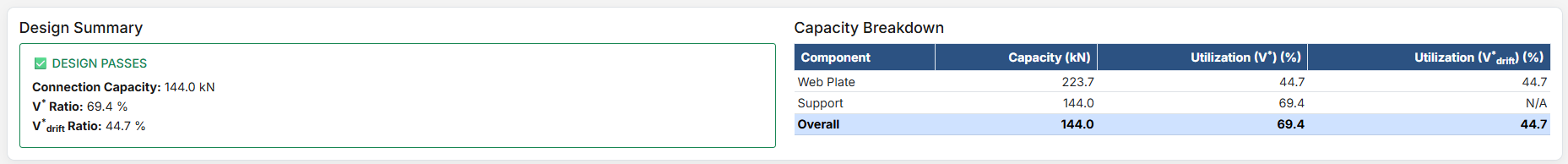

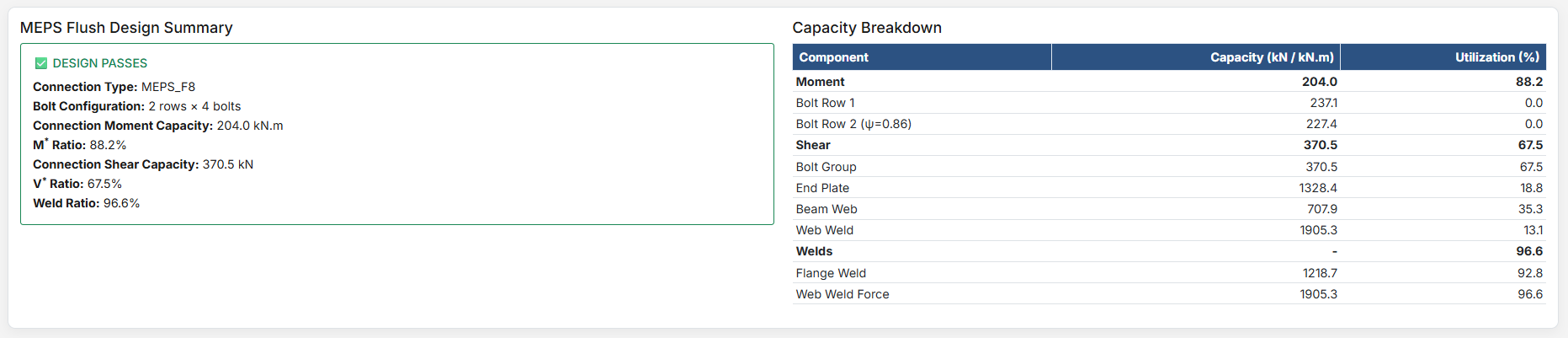

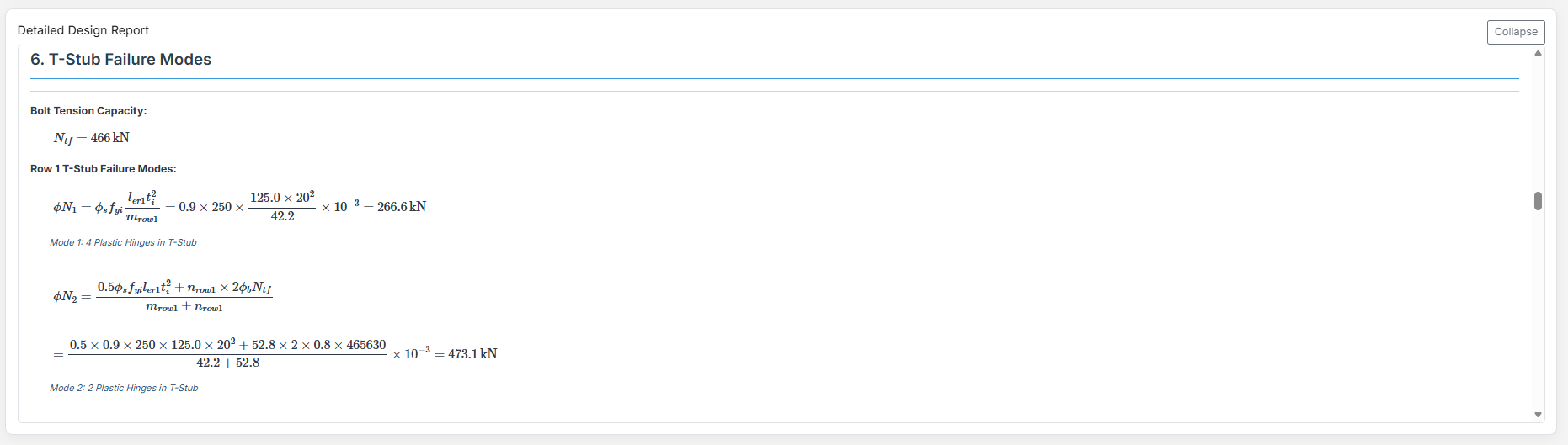

Results: Review capacity ratios, generate reports, and export documentation

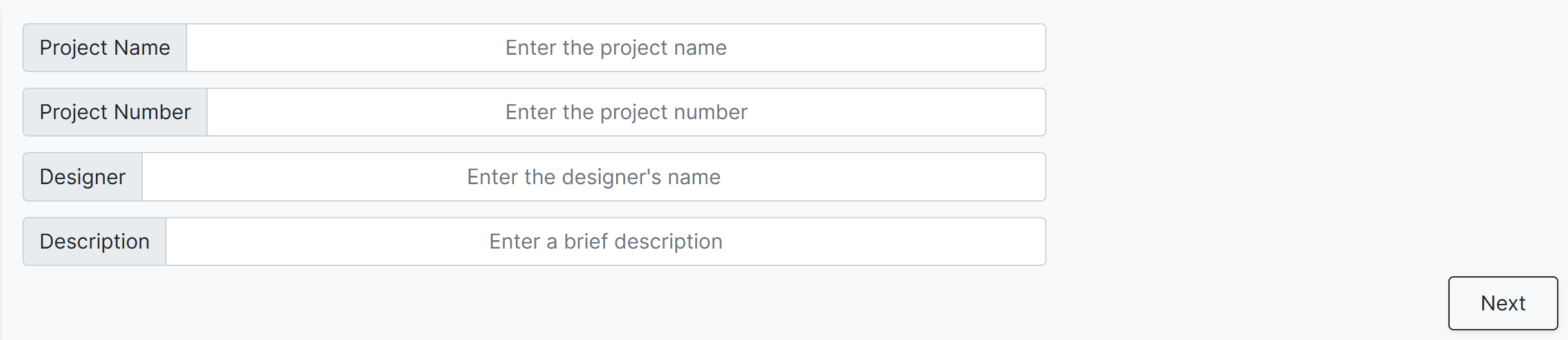

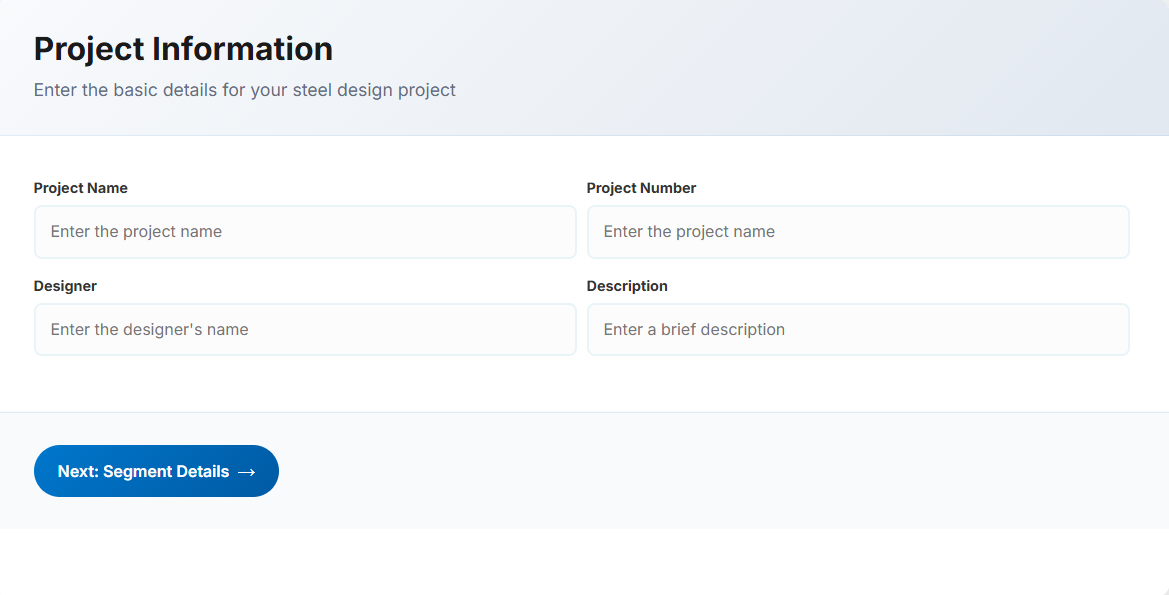

Member Design - Project Details
Member Design checks steel members of one or more segments to NZS 3404 or AS 4100. The page works in four steps - Project Details, Member Details, Forces and Results - listed in the Design Workflow panel. Click a step, or use the Next and Back buttons at the bottom of each step.
Input Fields
Project Name: The name of the project. It identifies the design and is required to save it.
Project Number: A code or number for project tracking and reference.
Designer: The person responsible for the design.
Description: A brief overview of the project or the purpose of the design.
Projects
Save: Saves the current inputs (and the imported analysis model, if any) to your account.
New: Clears the form and starts a new design.
Load: Opens the Saved Projects panel, where you can open or delete a saved design.
Save As: Saves the current design as a new project.
Tip: You need to be logged in to save and load projects. The project information appears in the header of the PDF reports.
Member Design - Member Details
This step defines the member: the design standard, the section, the member length and its segments, and the restraint of each segment.
a. Member input source
Manual: Enter the member properties and forces yourself.
Analysis output (SAP2000 / ETABS / SPACE GASS): Import members and their forces from an analysis export - see Importing from an analysis model below.
b. Member properties
Reference Standard: NZS 3404 or AS 4100.
Member Category: NZS 3404 only (hidden for AS 4100). Select Category 1 to 4; the section geometry is checked against the slenderness limits of that category (Table 12.5).
Member Length (mm): The total length of the member.
Segment Number: 1 for a single segment, or the number of segments of a multi-segment member. The segment table updates to match.
Section Type: New Zealand and Australian sections:
UB (Universal Beam), UC (Universal Column), PFC (Parallel Flange Channel) and TFB (Tapered Flange Beam) - Grades G300+ and G350
CHS (Circular Hollow Section) - Grades G250 and G350
RHS and SHS (Rectangular and Square Hollow Sections) - Grades G350 and G450
CWB (Custom Welded Beam) - user-defined dimensions in various grades
Steel Grade: The grades available for the selected section type.
Section: Select the section from the list for the chosen section type.

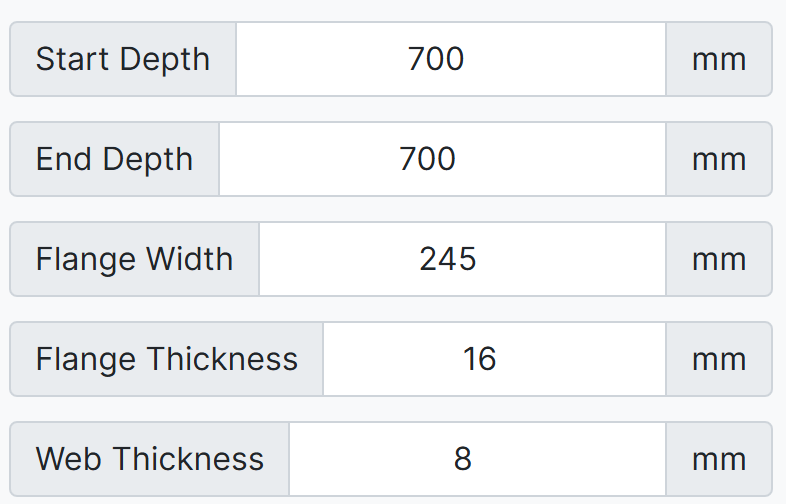

For CWB sections, enter the start and end depths (a tapered member when they differ), the flange width and the flange and web thicknesses.
Then select the critical section of each segment:
For Mbx: maximum moment-to-depth ratio, minimum depth, middle depth or maximum depth.
For Nc: middle depth or minimum depth.
The Member Visualization shows the member, its depth along the length and the segment boundaries.

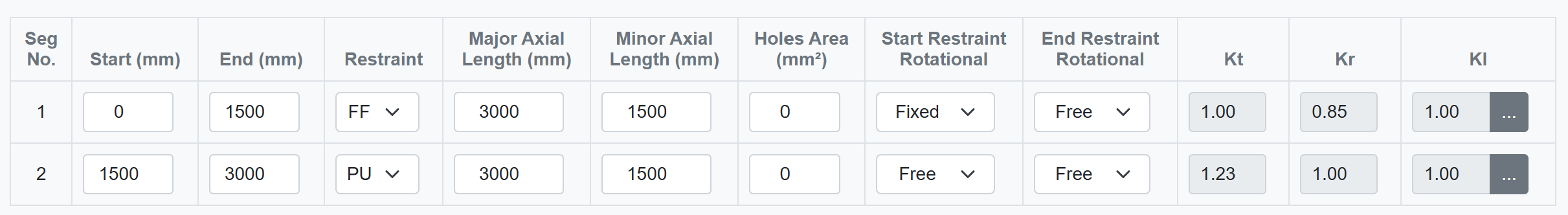

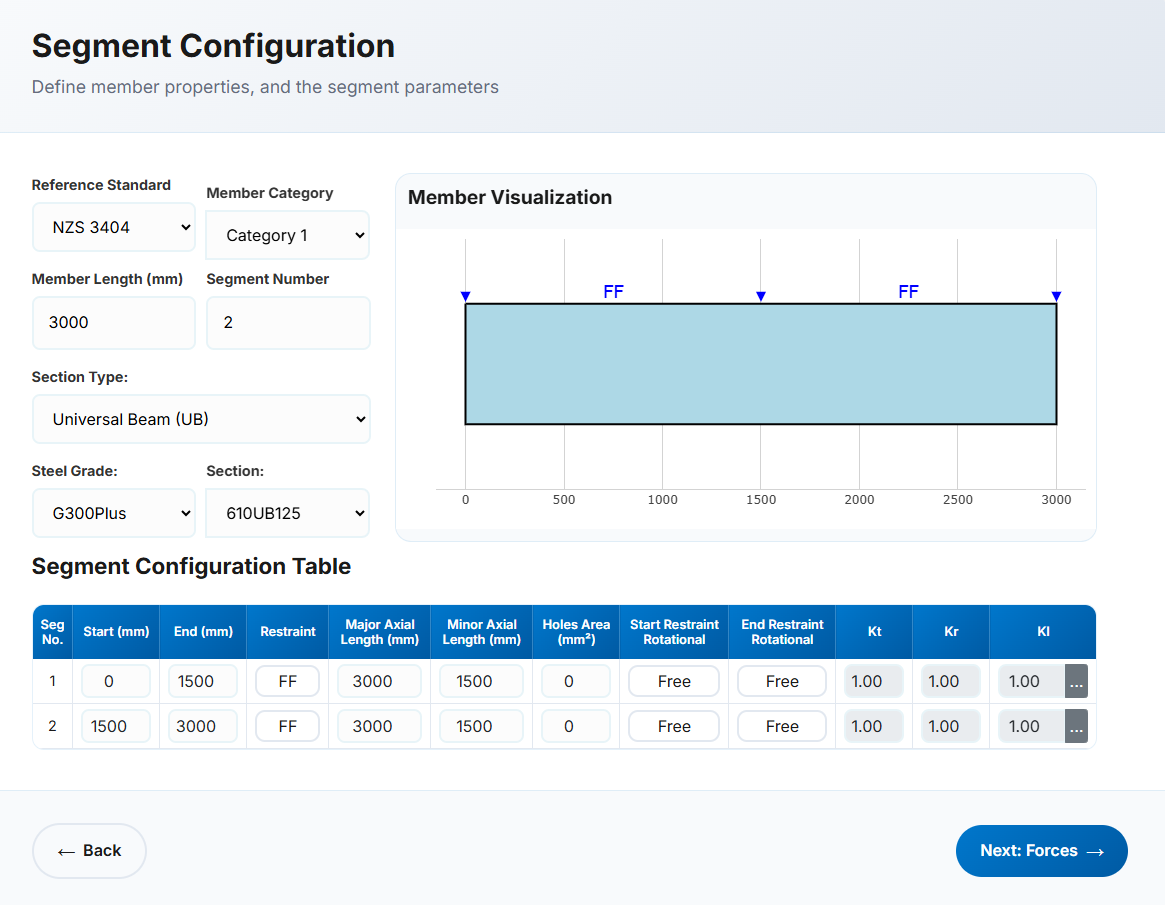

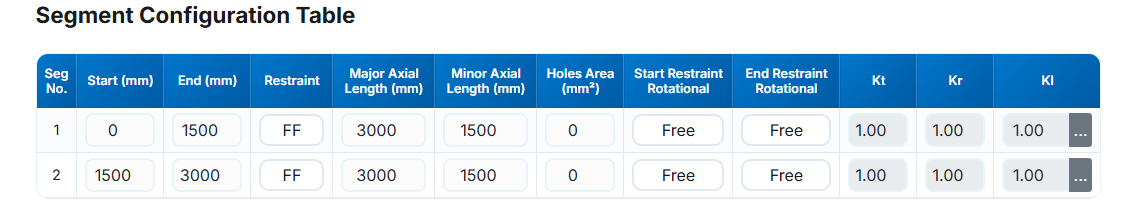

c. Segment Configuration Table
One row per segment; each segment can have its own restraints and lengths.
Seg No.: Segment number.
Start (mm): Distance of the segment start from the start of the member.
End (mm): Position of the segment end. It must be greater than the start and not less than the end of the previous segment.
Restraint: End restraints as per Clause 5.4.3 of NZS 3404 / AS 4100. Start and end are not distinguished; each segment is treated independently.
FF: Full restraint at both ends
FL: Full restraint at one end, lateral restraint at the other
LL: Lateral restraint at both ends
FU: Full restraint and unrestrained ends
FP: Full and partial restraint
PL: Partial and lateral restraint
PU: Partial restraint and unrestrained ends
PP: Partial restraint at both ends
Major Axial Length (mm): Length for buckling about the major axis (x-x). Defaults to the member length.
Minor Axial Length (mm): Length for buckling about the minor axis (y-y). Defaults to the segment length.
Holes Area (mm2): Total area of the holes within the segment.
Start / End Restraint Rotational: "Free" or "Fixed" per Clause 5.4.3.4; sets the rotational restraint factor kr.
Kt: Twist restraint factor. Calculated automatically; not editable.
Kr: Rotational restraint factor. Calculated automatically; not editable.

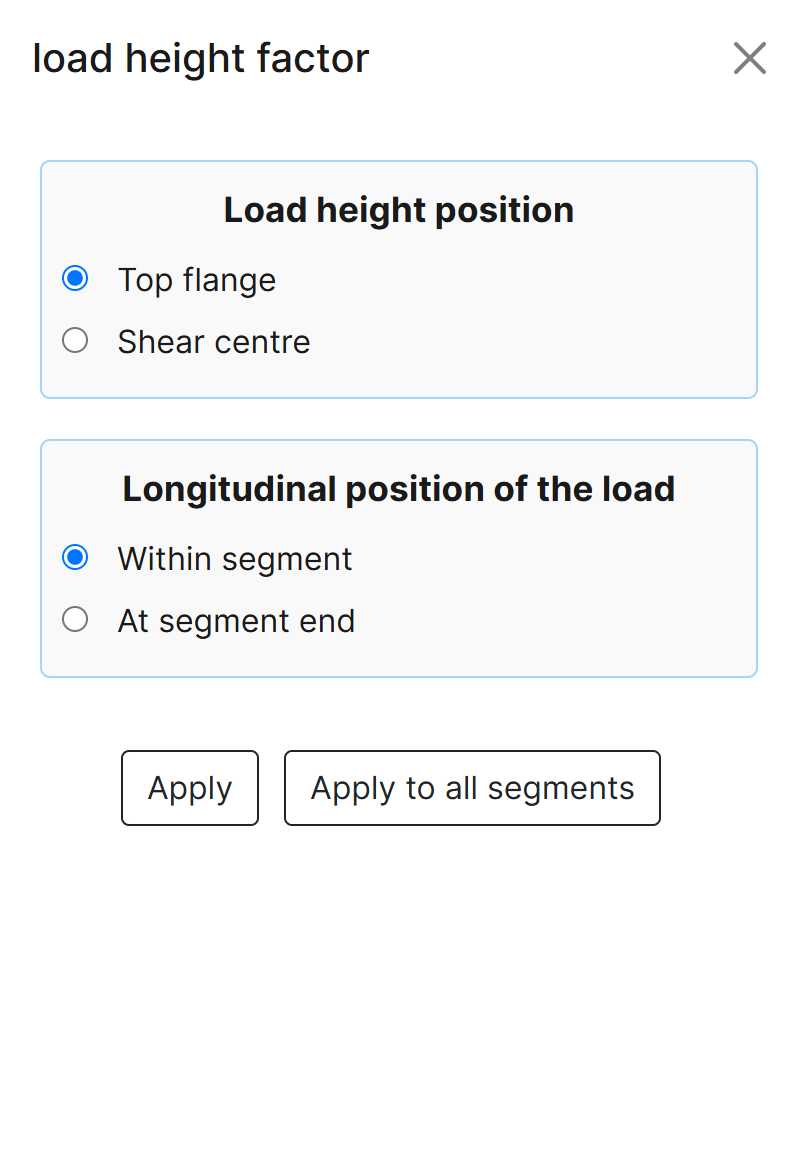

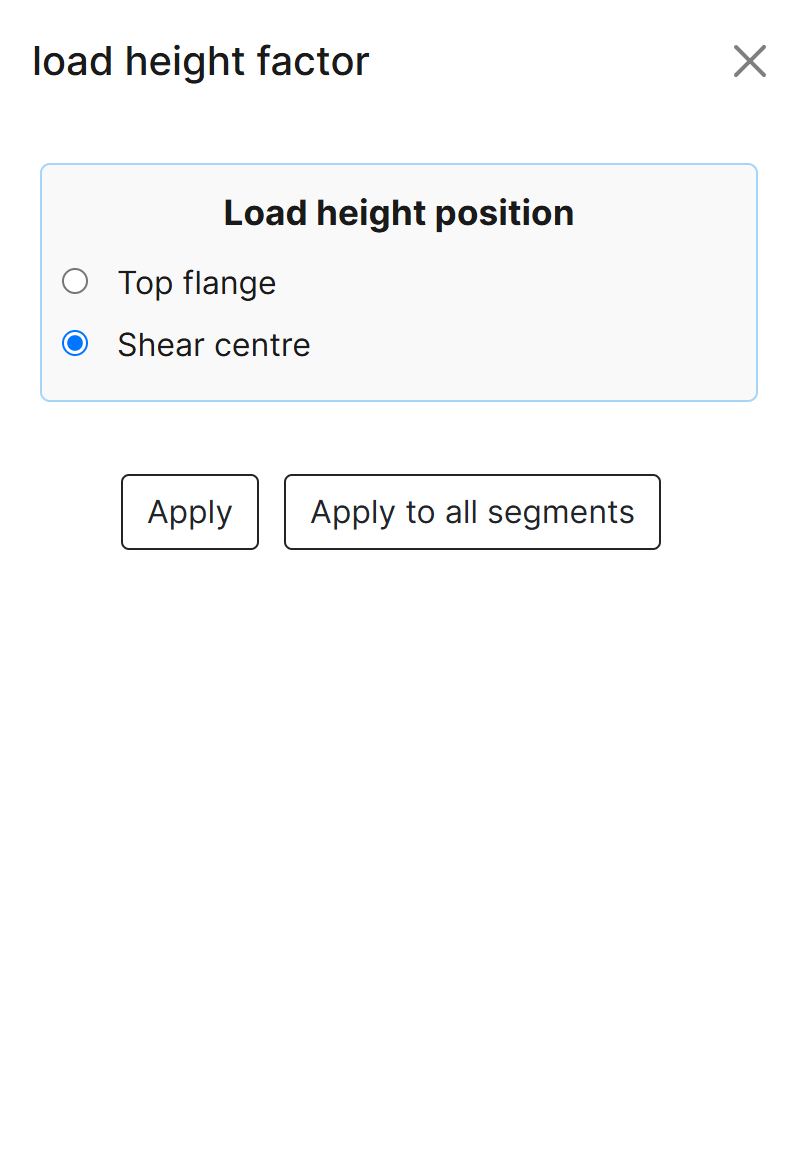

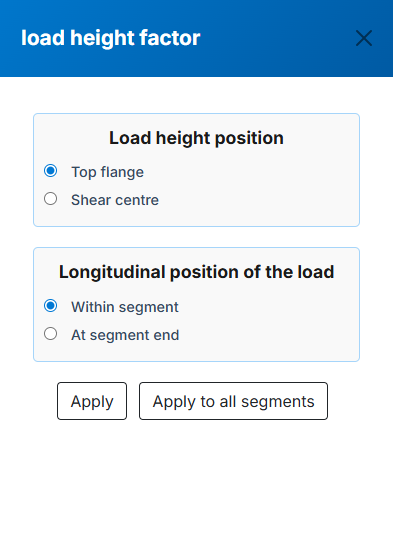

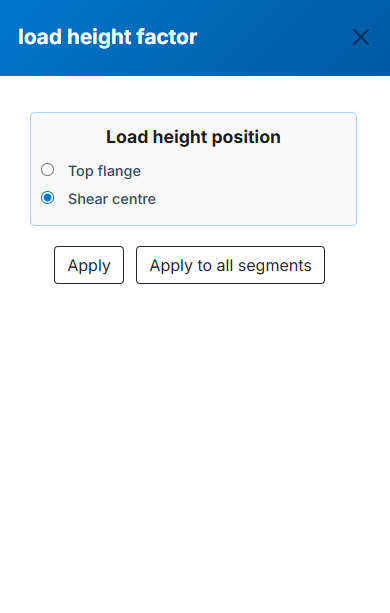

Kl: Load height factor. Press the ... button next to it to open the load height factor panel: choose the load height position (top flange or shear centre) and, for the restraint types where it applies, the longitudinal position (within the segment or at the segment end). Apply sets it for the segment; Apply to all segments sets it for every segment.
d. Importing from an analysis model
Select Analysis output (SAP2000 / ETABS / SPACE GASS) to design members straight from an analysis export.
Export the model with its member-force results, in kN and m. SAP2000 exports (.s2k or CSI-style .txt tables) and saved StructUpro .json files can be imported, up to 150 MB. ETABS results need to be converted to the same CSI table format first. The SAP2000 and ETABS export guide lists the tables to include.
Choose the file and press Import. The status line reports how many members were imported.
Select the Imported member (frame). Its length (as one segment), its section (when it matches a catalogue section) and its forces are filled in; check them, then set the segments and restraints as usual.
On the Forces step, choose the load combinations for the design (see Forces).
Each imported member keeps its own inputs and results, so you can switch between members and design them one by one. Importing another file replaces the model and clears its member designs - save the project first to keep them.
Access: Importing an analysis model requires an active paid subscription or a Student licence; trial accounts cannot upload analysis files.
Member Design - Forces

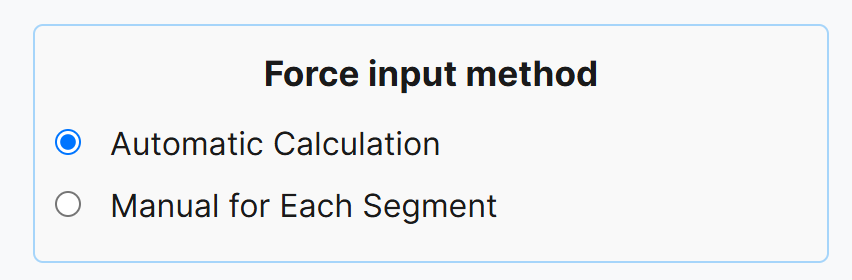

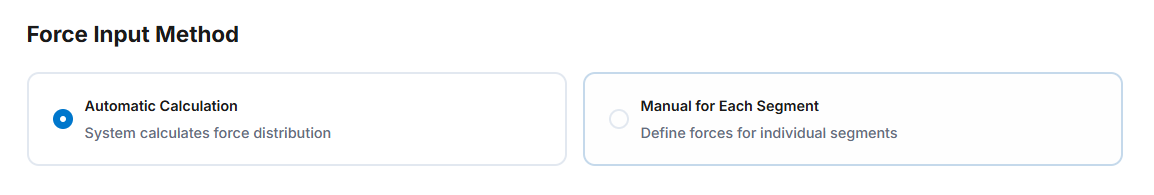

The design actions can be entered in two ways. Select the Force Input Method:
Automatic Calculation: Enter the forces at stations along the member, wherever the segments are. The forces of each segment and its βm values are calculated automatically. Best for members with several segments.
Manual for Each Segment: Enter the design forces, αm and βm of each segment directly. Best when you already have the forces per segment.

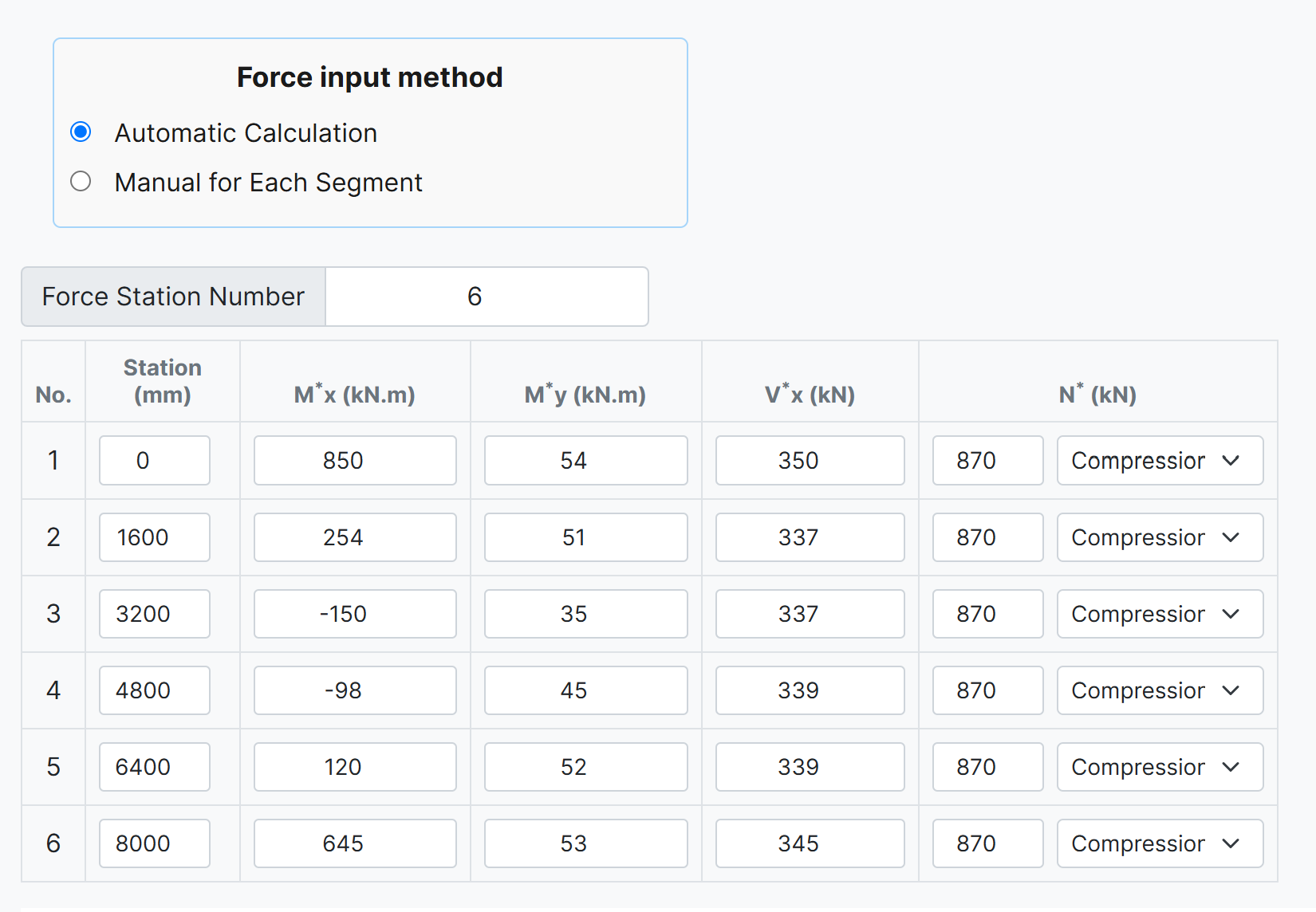

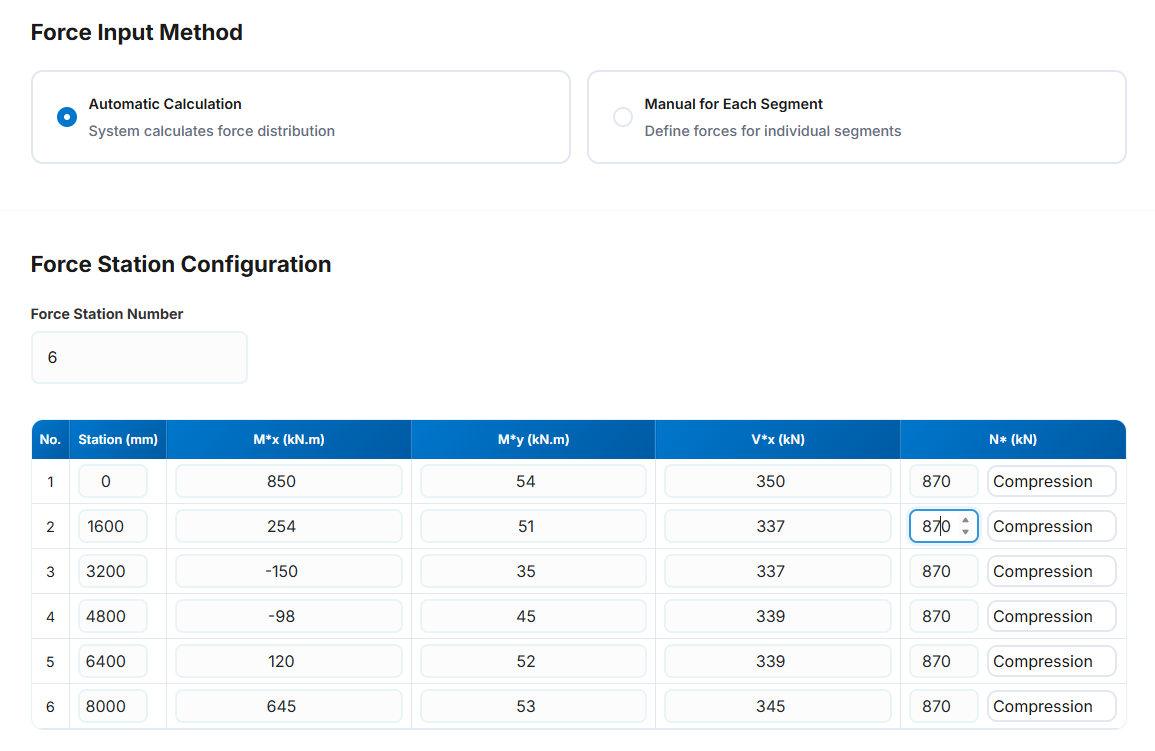

Method 1: Automatic Calculation
Force Station Number: The number of force stations (2 to 50). It does not have to match the number of segments; use as many stations as the force diagrams need - most analysis programs report forces at stations along each member.
No.: The station number.
Station (mm): The position of the station from the start of the member. Each station must be beyond the previous one, up to the member length.
Mx* (kN.m): The design bending moment about the major (x) axis. Can be negative.
My* (kN.m): The design bending moment about the minor (y) axis. Can be negative.
Vx* (kN): The design shear force. Enter a positive value.
N* (kN): The design axial force, as a positive value; choose compression or tension next to it.

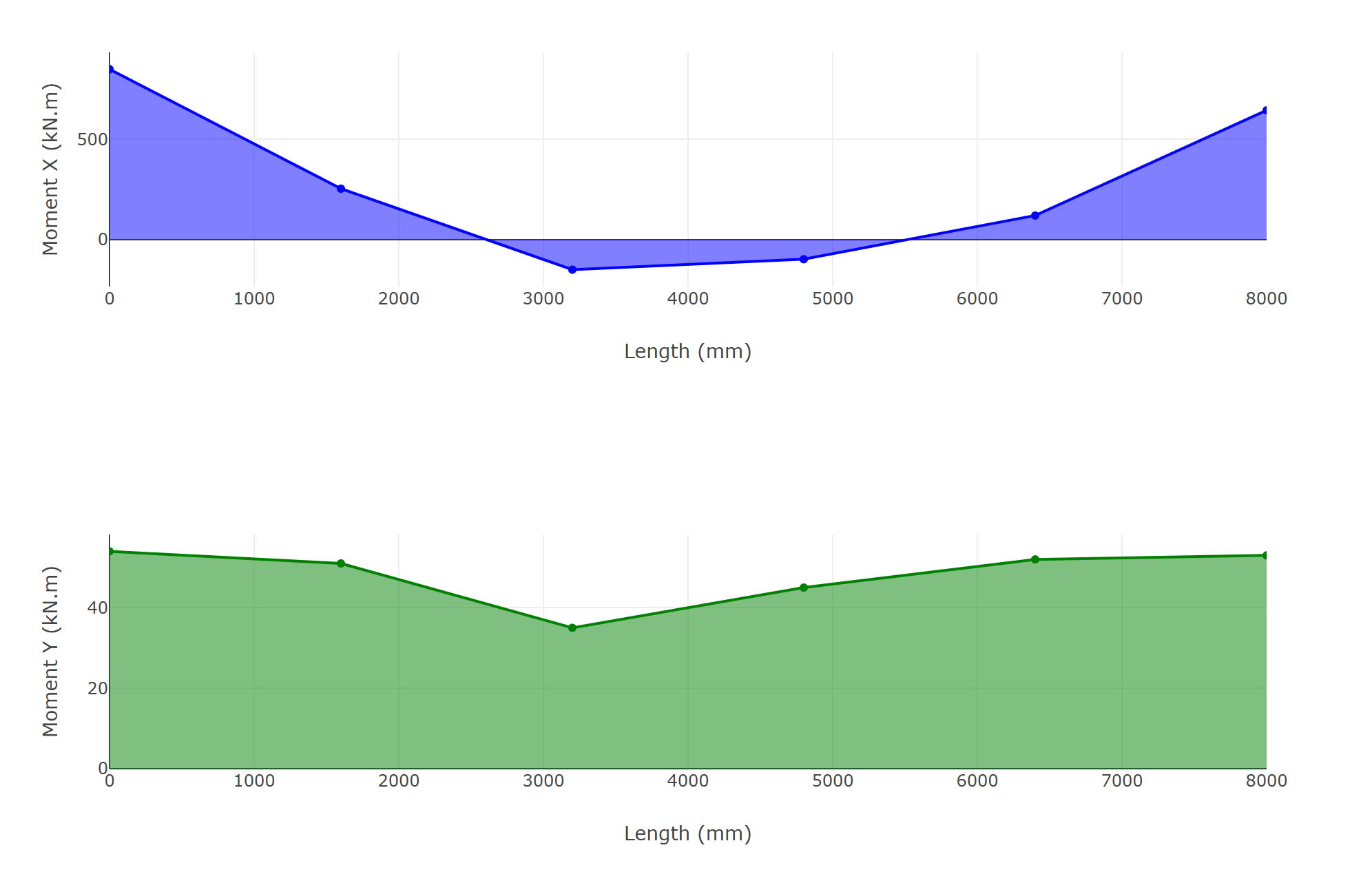

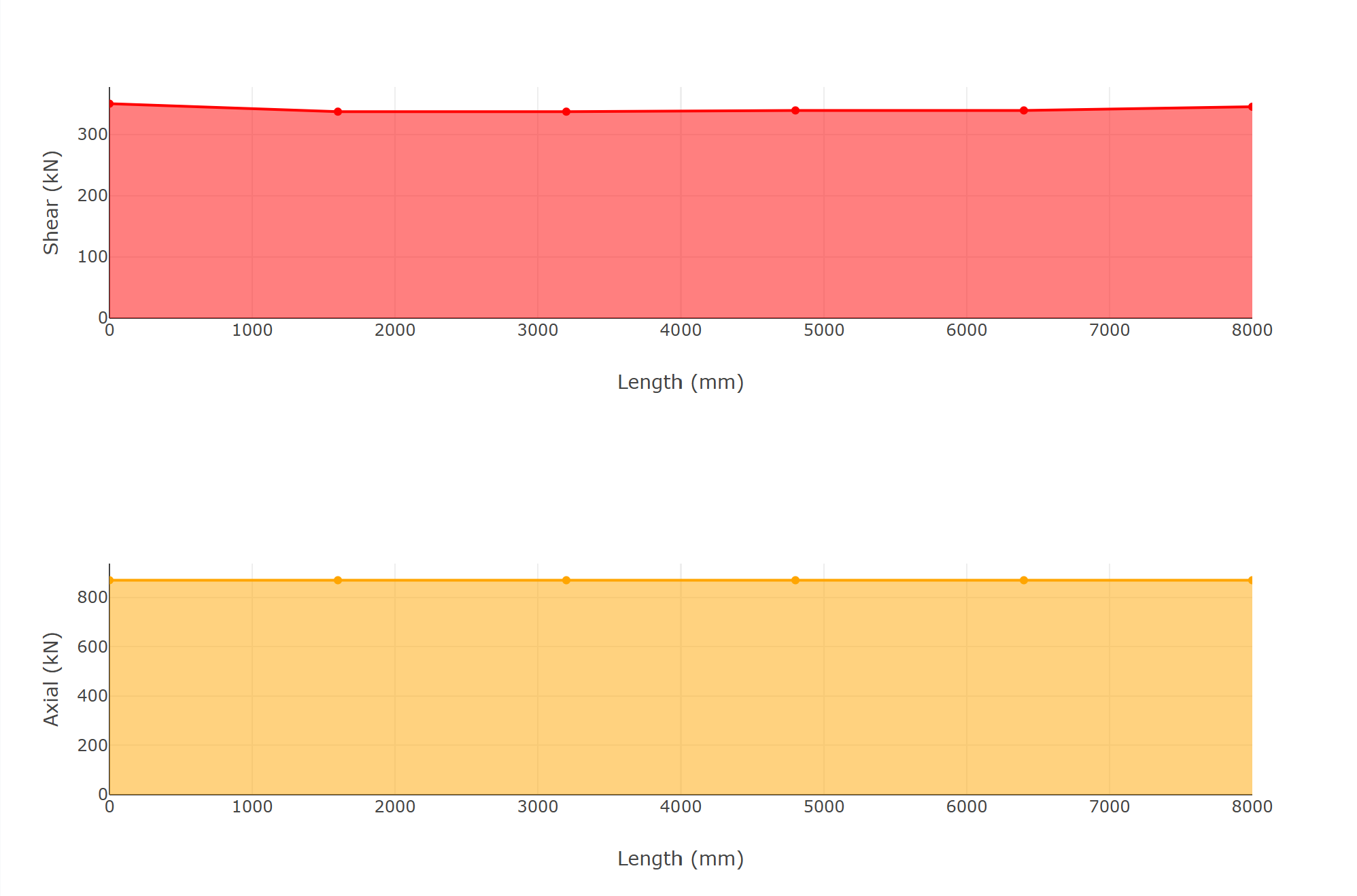

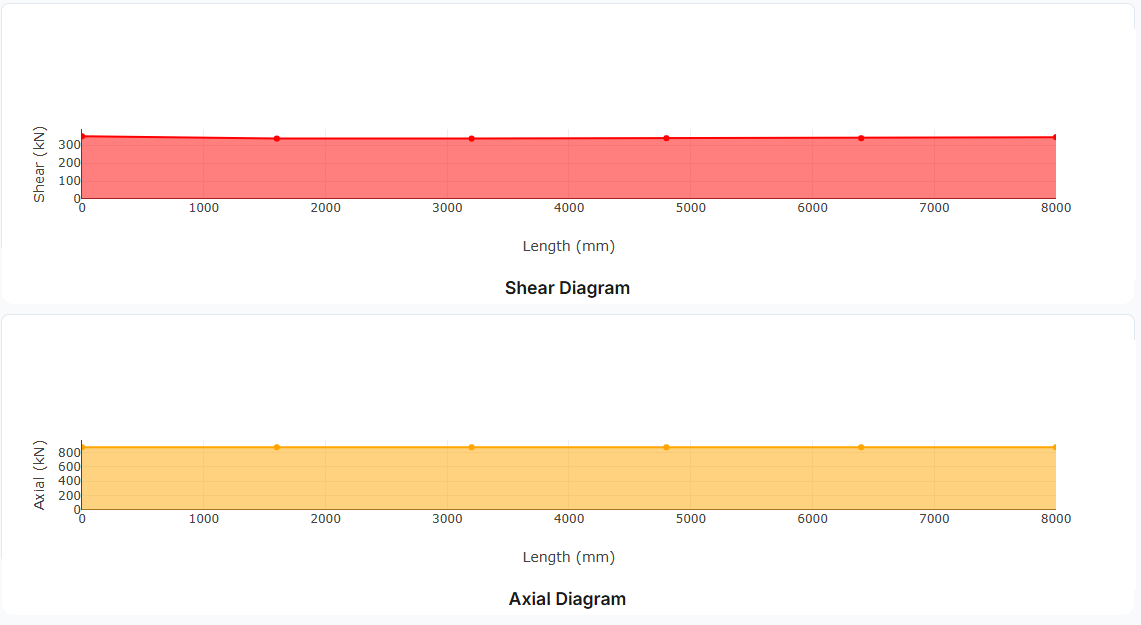

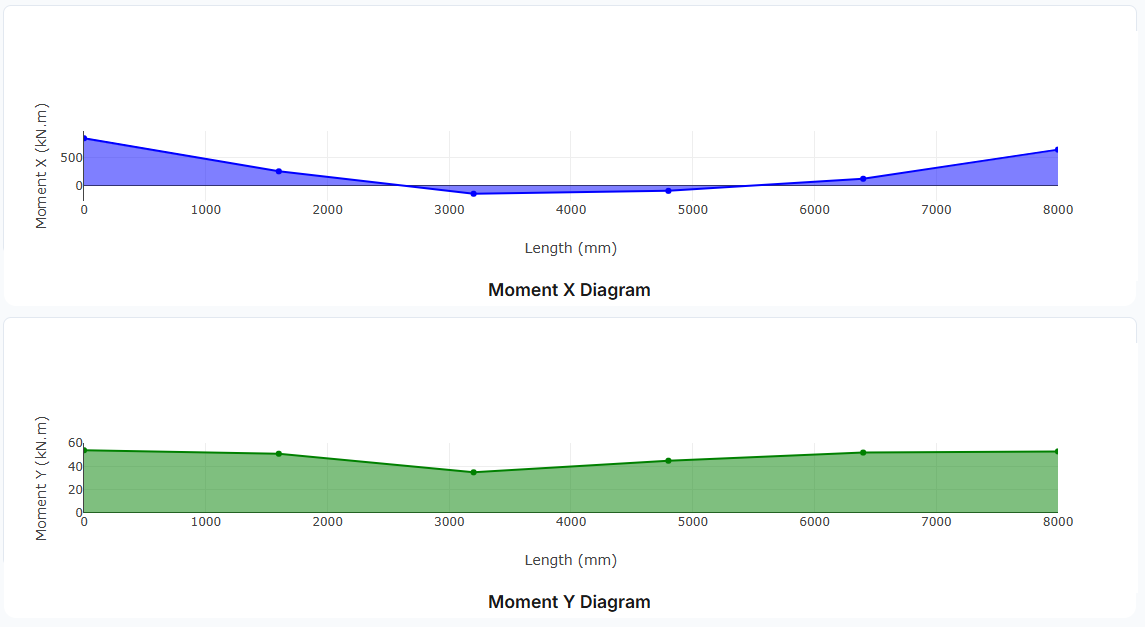

Diagrams: The moment, shear and axial force diagrams are drawn from the stations so you can check the input.
Imported analysis loads
For an imported member, an Imported analysis loads panel lists the load cases and combinations of the model:
Combinations for design (envelope): Move combinations from the List of Load Combinations to the Design Load Combinations with Add -> and <- Remove. The member is designed for the envelope of the selected combinations.
Case / combination for diagrams: Selects the result that fills the station table and the force diagrams.

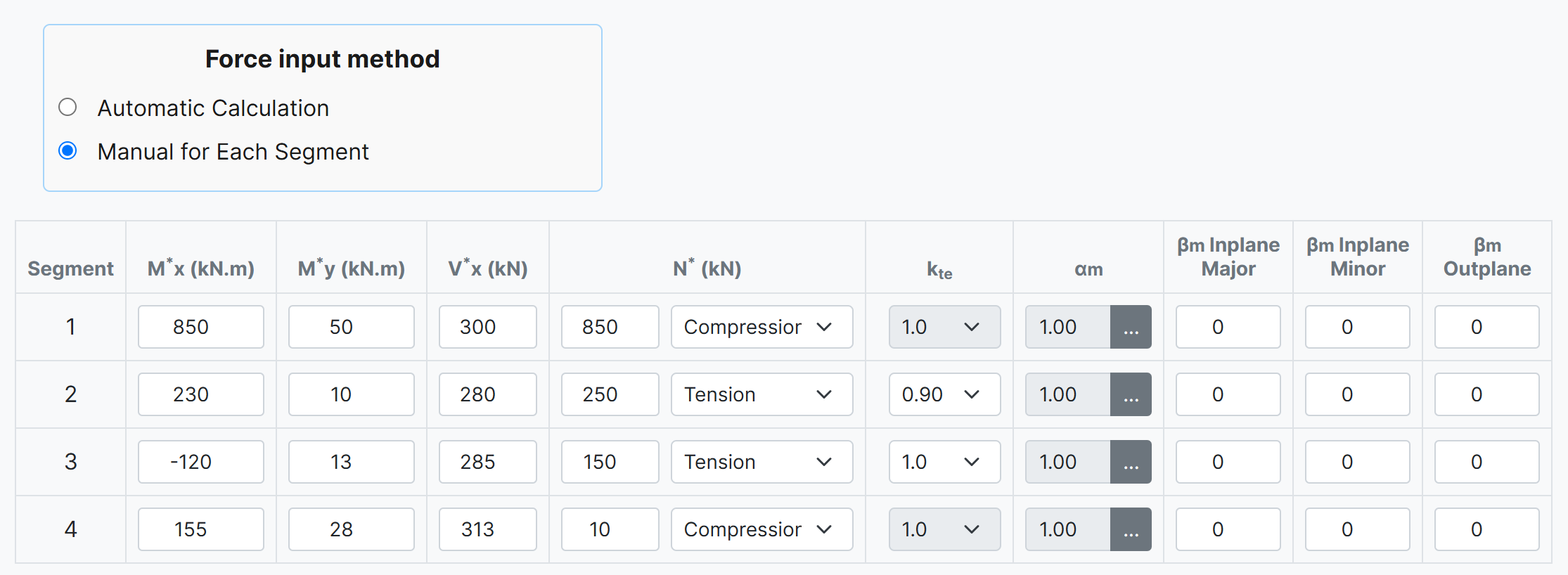

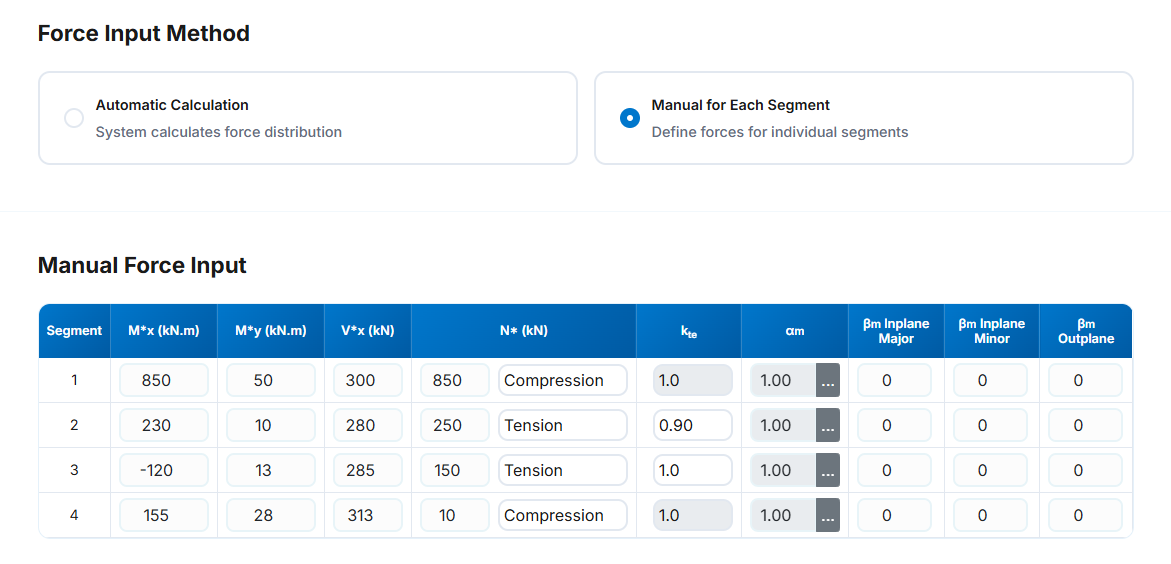

Method 2: Manual for Each Segment
Segment: The segment number.
Mx* (kN.m): The design bending moment about the major (x) axis. Can be negative.
My* (kN.m): The design bending moment about the minor (y) axis. Can be negative.
Vx* (kN): The design shear force. Enter a positive value.
N* (kN): The design axial force, as a positive value; choose compression or tension next to it.
kte: Correction factor for the distribution of forces in a tension member (Clause 7.3 of NZS 3404 and AS 4100). Active when tension is selected.

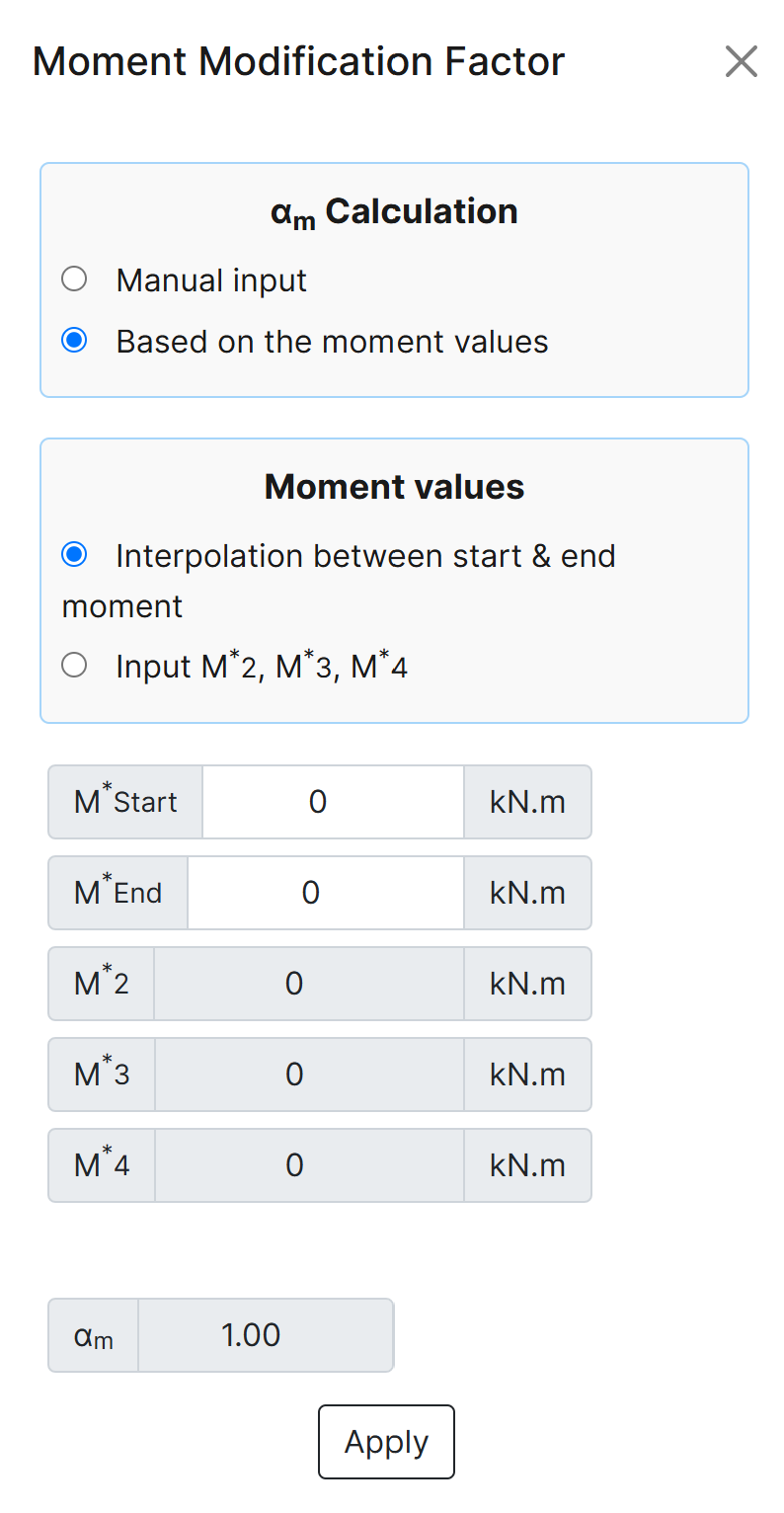

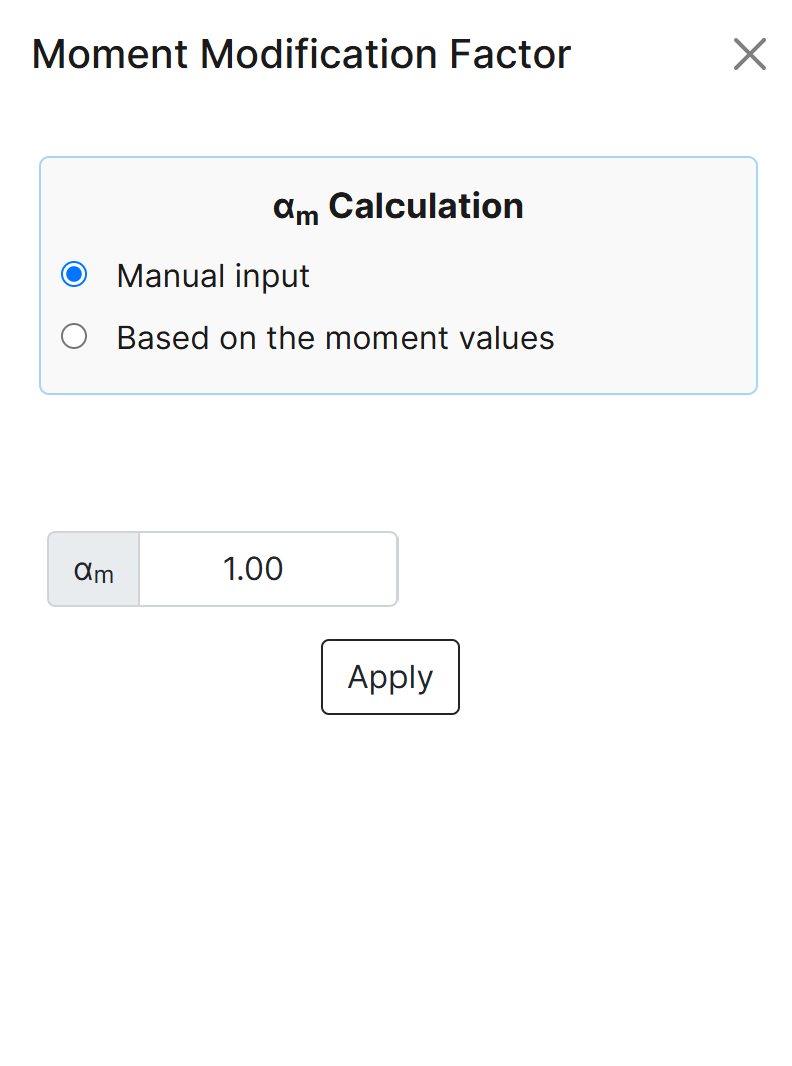

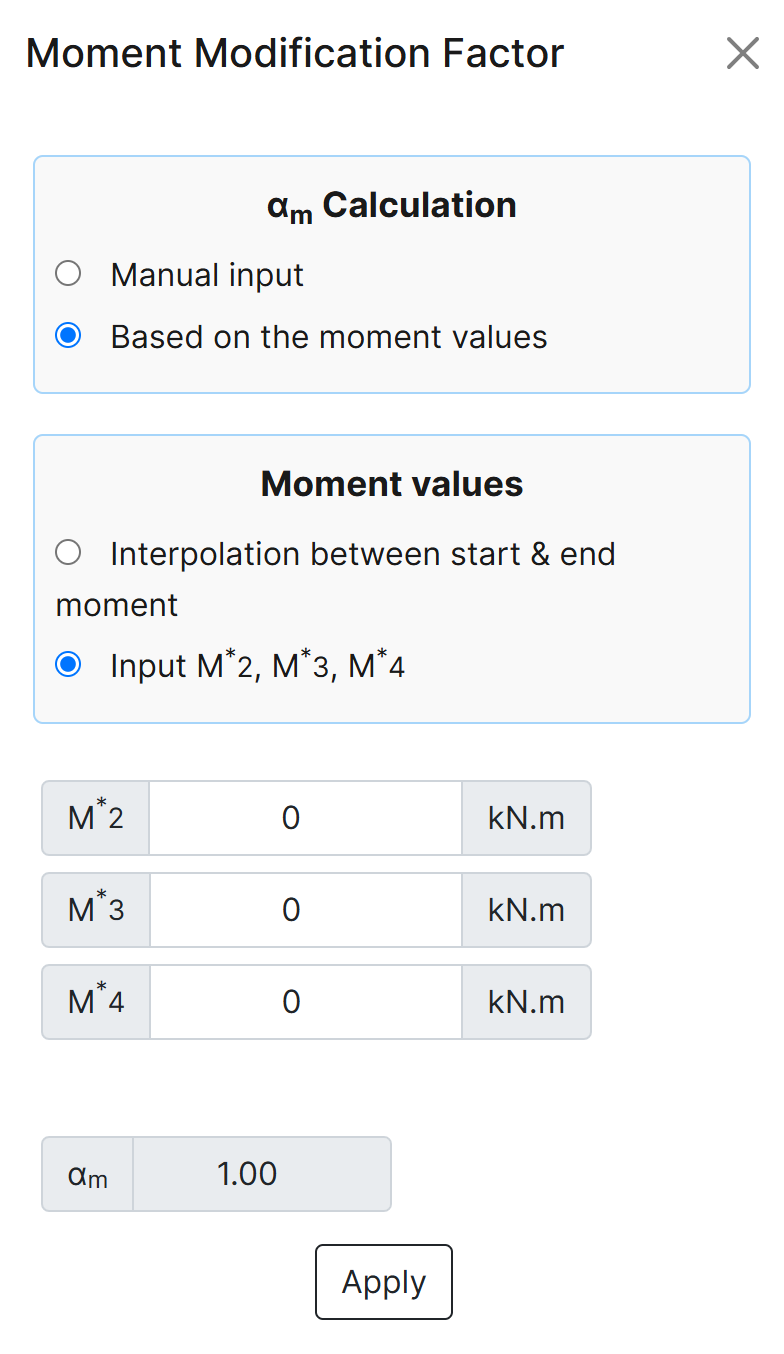

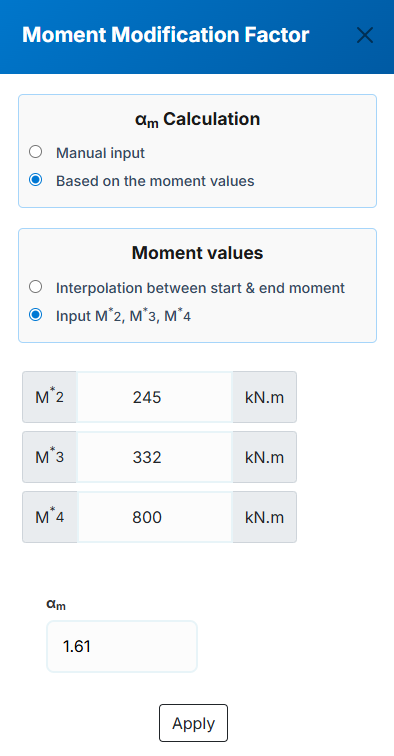

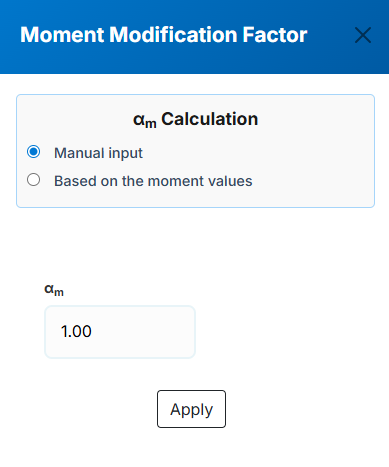

αm: The moment modification factor (Clause 5.6.1.1). Press the ... button next to it to open the Moment Modification Factor panel and set it in one of three ways:
Manual input: Enter αm and press Apply.
Based on the moment values - Interpolation between start & end moment: Enter the major axis moments at the start and end of the segment; M2*, M3* and M4* are interpolated and αm is calculated from Eq. 5.6.1.1(2).
Based on the moment values - Input M2*, M3*, M4*: Enter the three moments and αm is calculated from Eq. 5.6.1.1(2).
βm Inplane Major, Inplane Minor and Outplane: The ratio of the smaller to the larger end moment for in-plane major, in-plane minor and out-of-plane bending. Entered manually; used only by the alternative design provisions.
Design: Press Design at the bottom of the Forces step to run the checks. Design needs an active subscription or trial.

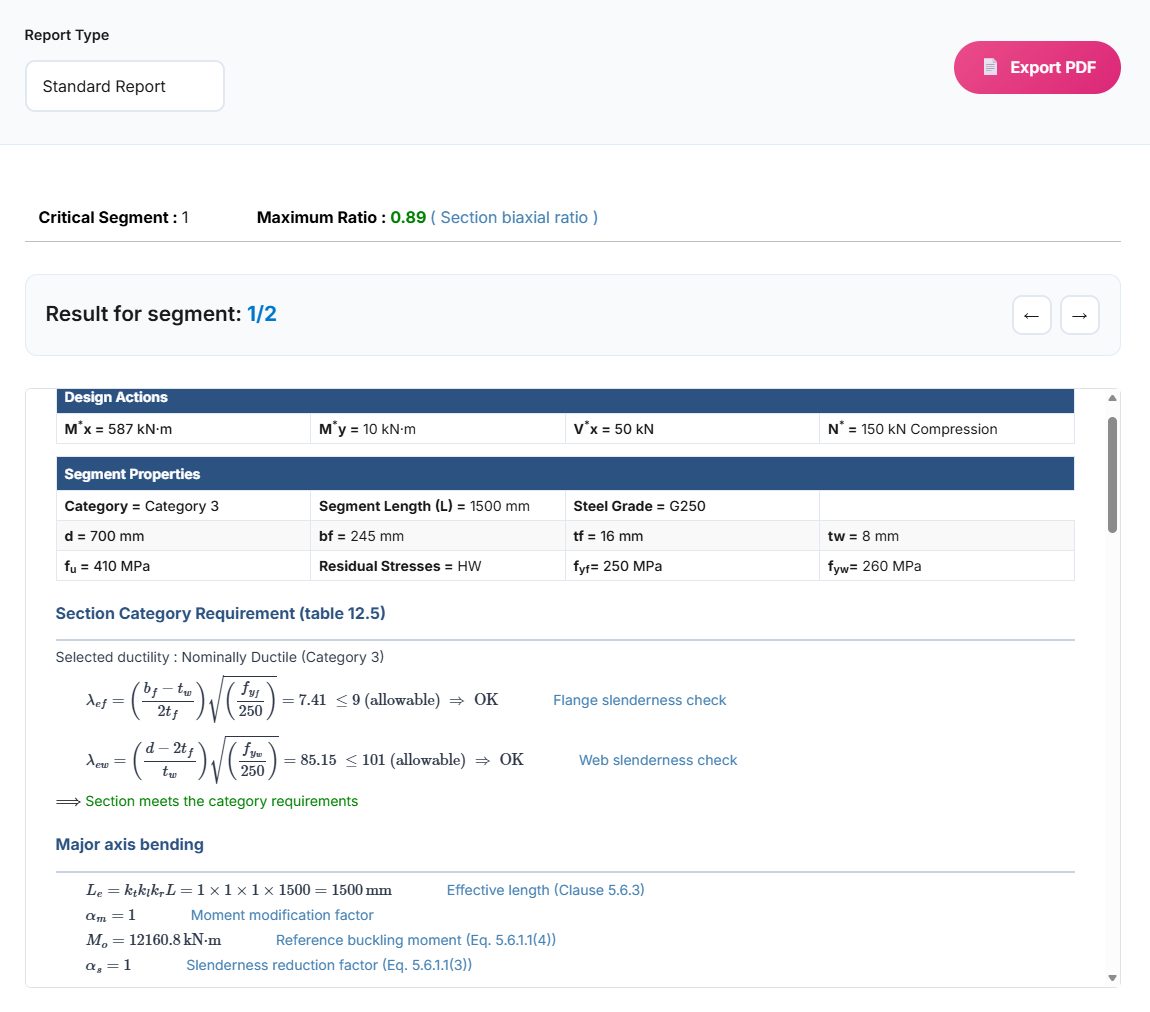

Member Design - Results
After Design, the Results step shows the outcome for the whole member and the calculation of each segment.
Critical Segment and Maximum Ratio: The segment with the highest utilisation, its ratio and the check that governs it.
Brief Results for Segments: One row per segment with its lengths, restraint type, kt, kl, kr, effective length, slenderness reduction factor, αm, design actions and ratio.
Result for segment: The calculation of one segment. Use the arrow buttons to move between segments.
Report Types
The Report Type list sets the detail shown on the page and in the PDF:

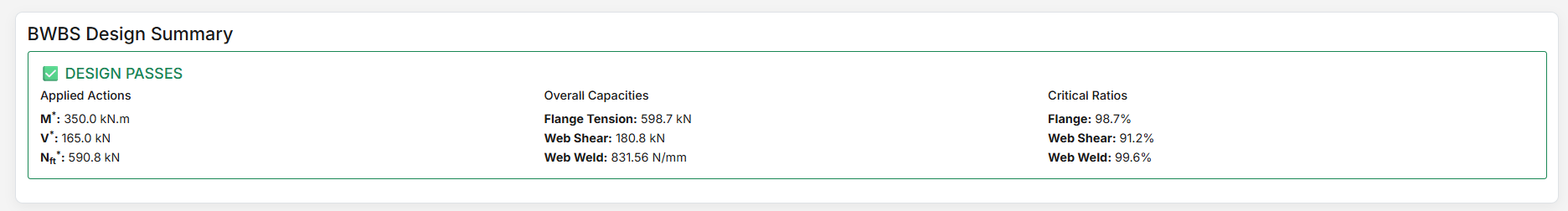

Summary Report
Pass/fail status and the main capacity ratios, for quick compliance checks.
Standard Report
Key equations and intermediate values; suitable for most documentation.

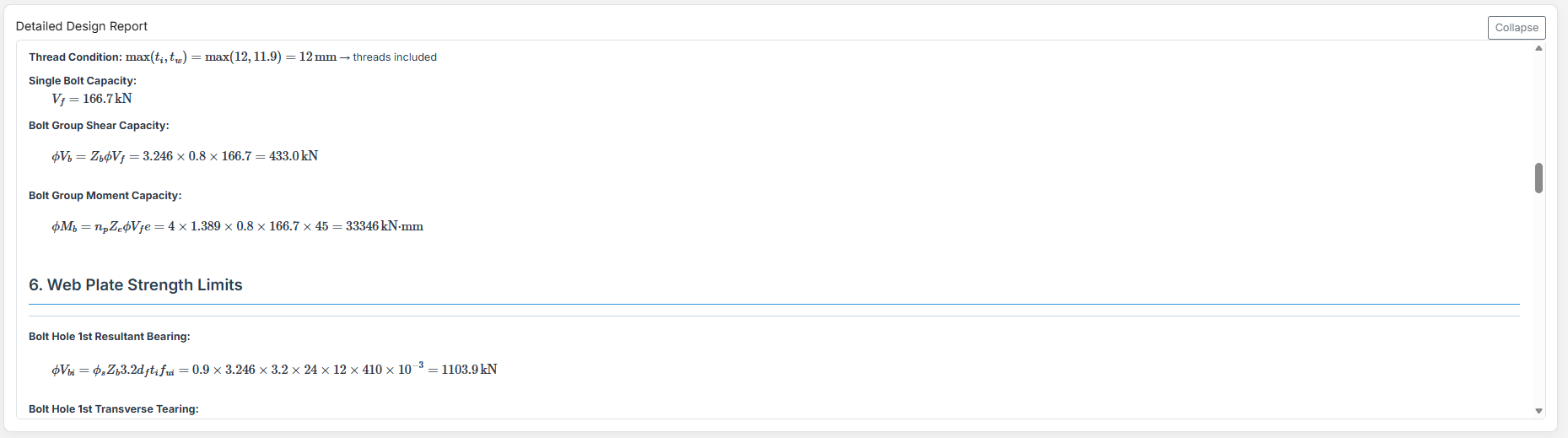

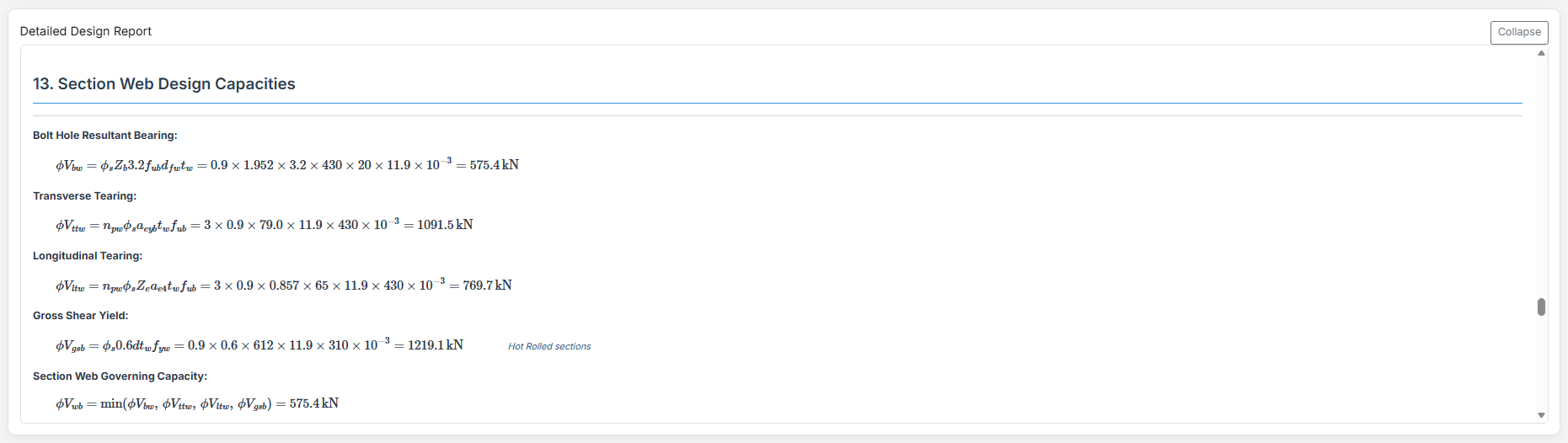

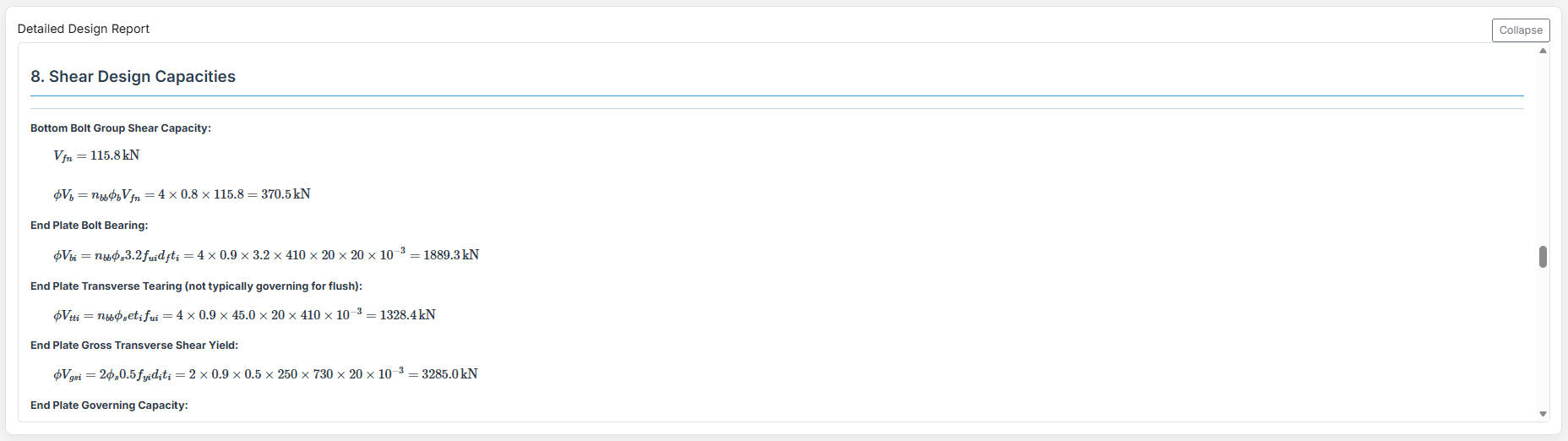

Detailed Report

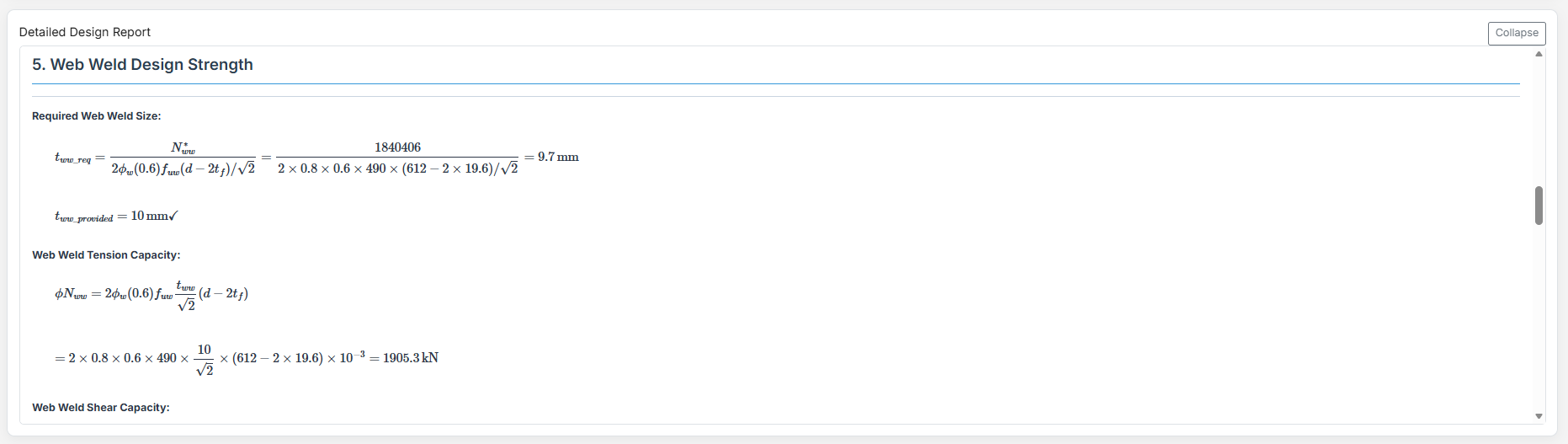

Step-by-step calculations with every equation and value, for verification.

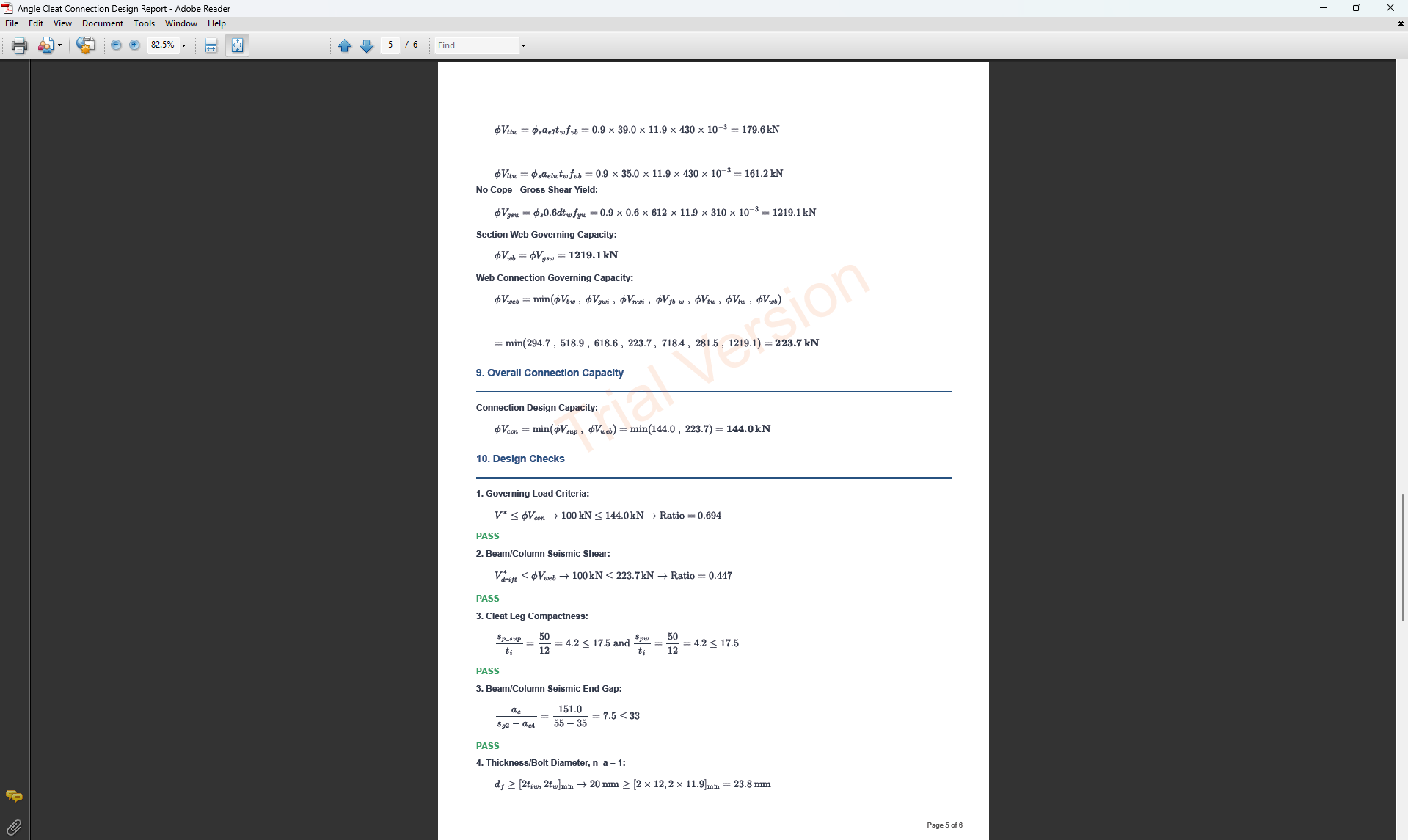

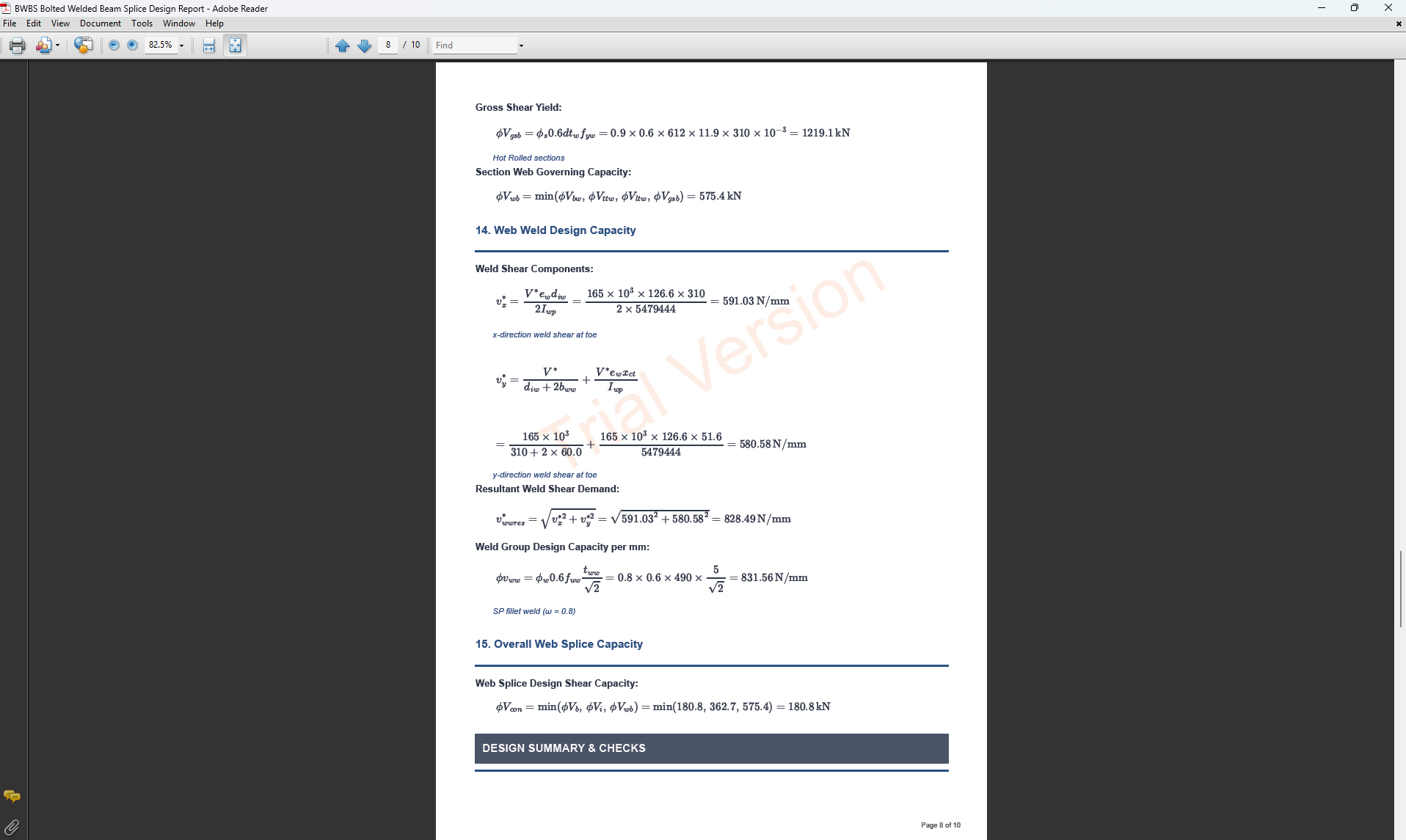

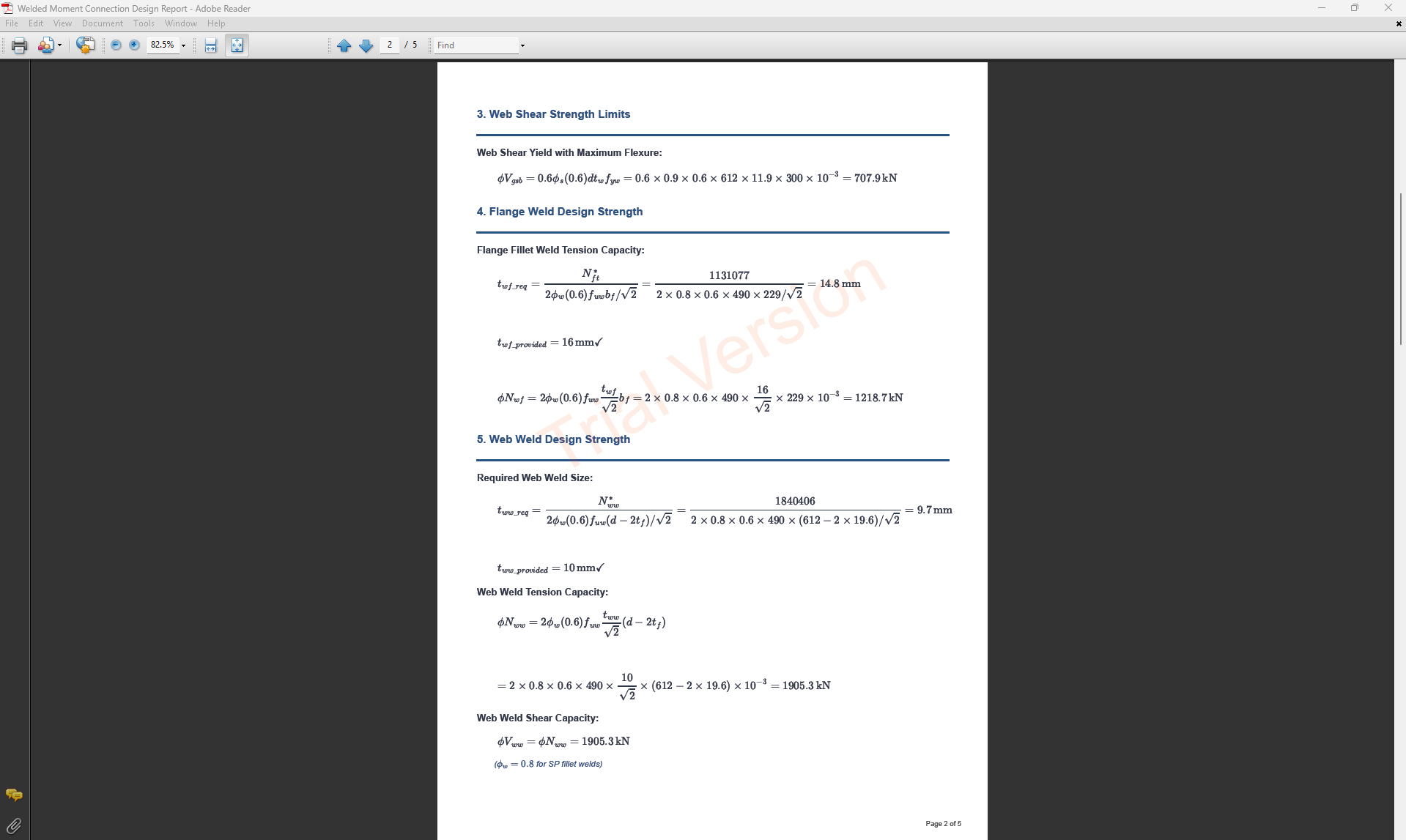

PDF Export
Export PDF saves the selected report as a PDF file, including the member visualization. Reports produced on a trial or Student licence carry a watermark.

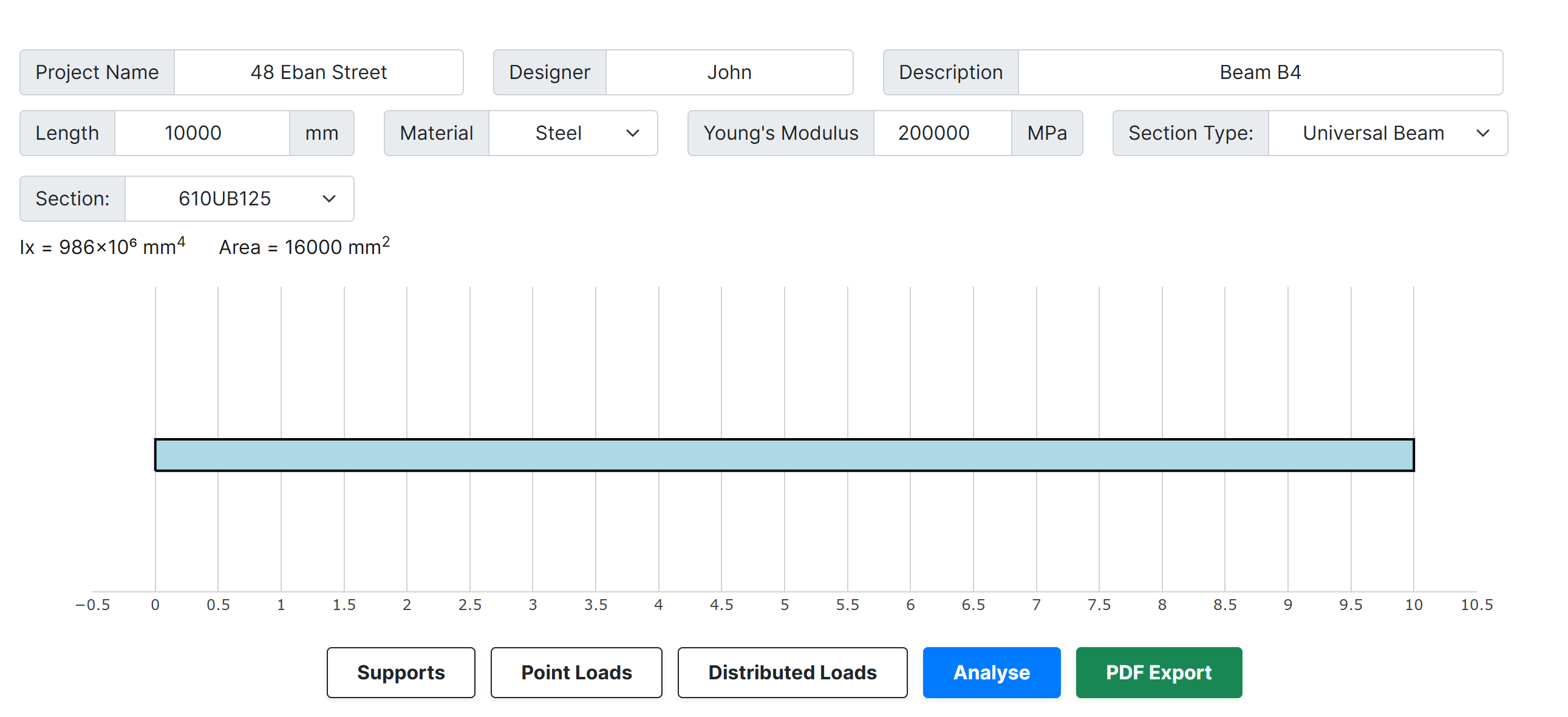

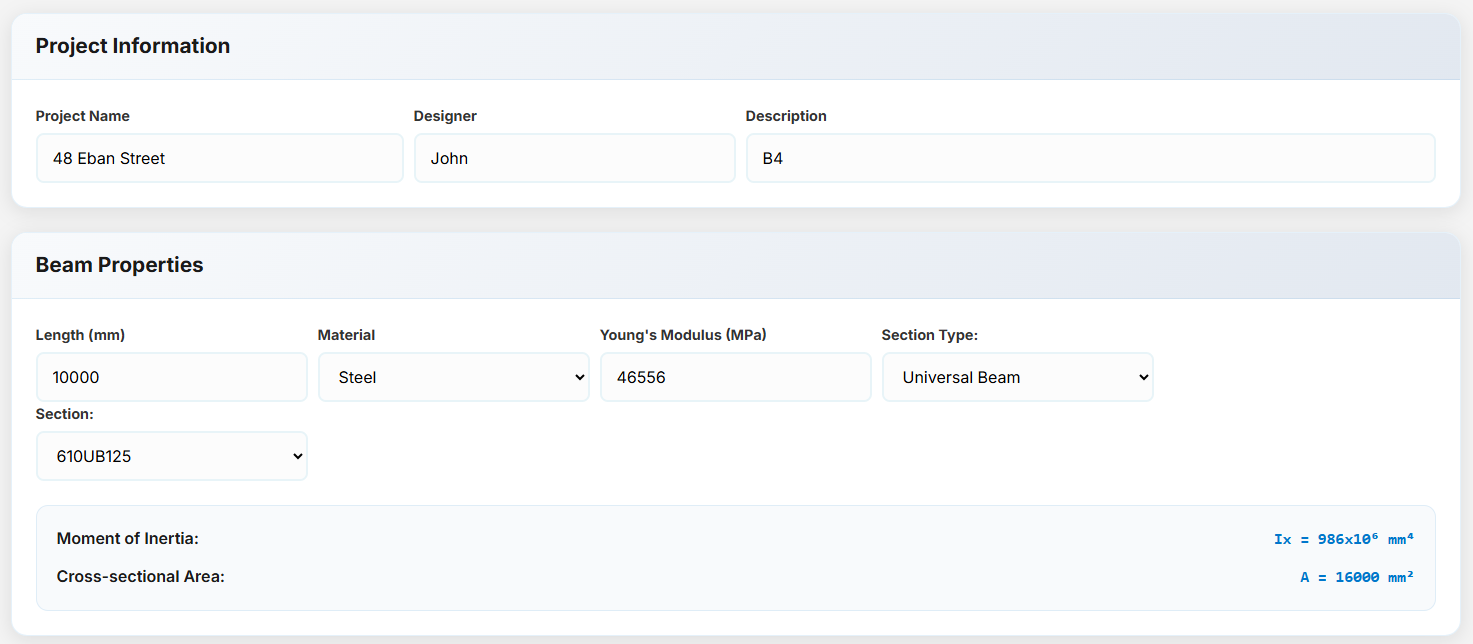

Beam Calculator - General Setup
The Beam Calculator analyses a beam of any material for reactions, bending moment, shear, axial force and deflection. It is free with a StructUpro account: log in to calculate.
Projects
Save, New, Load and Save As keep beams as projects; Load opens the Saved Projects panel.
Saving and loading Beam projects requires an active subscription, Student licence or trial. The analysis itself stays free.
Project Information
Project Name: The title of the project.
Designer: The person responsible for the design.
Description: A brief summary of the scope and purpose.

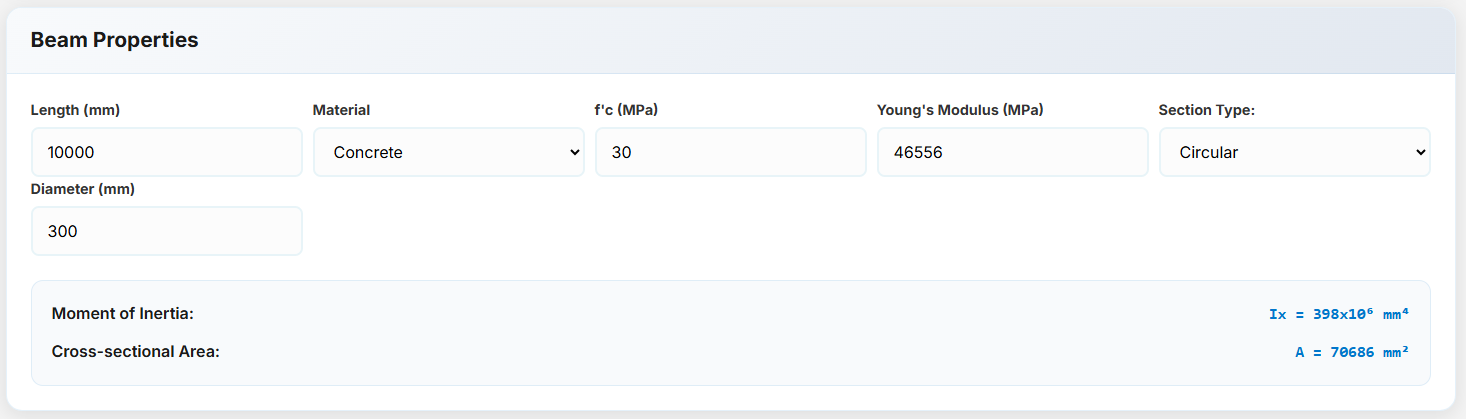

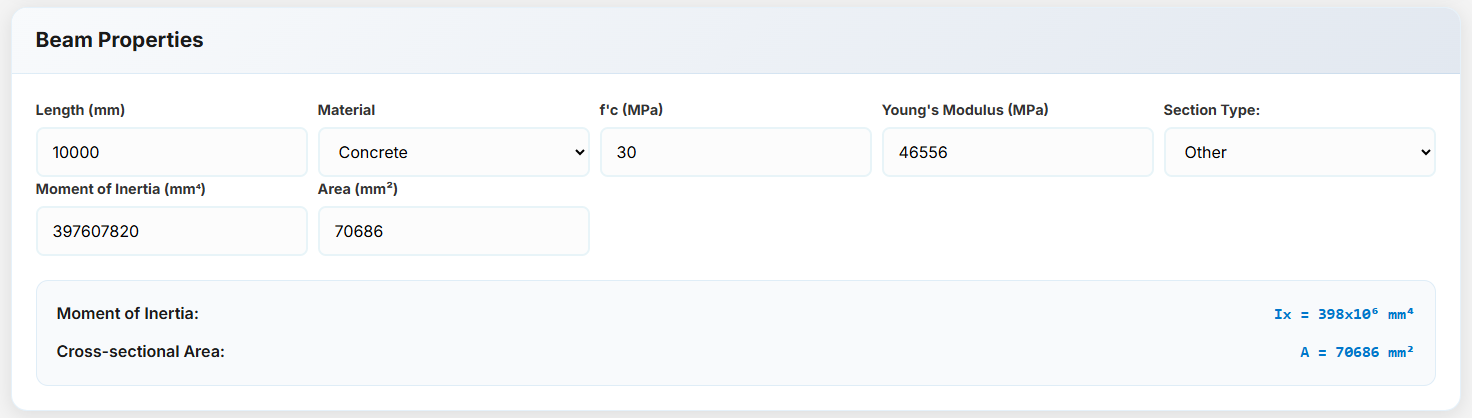

Beam Properties
Length (mm): The total length of the beam.
Material: Steel, Concrete or Other.
Young's Modulus (MPa): The elastic modulus of the material.
The Moment of Inertia (Ix) and Cross-sectional Area (A) used in the analysis are shown under the inputs.
a. Steel Sections
Section Type: Common New Zealand and Australian sections:
Section: Select the section from the list for the chosen section type; its Ix and A are filled in automatically.

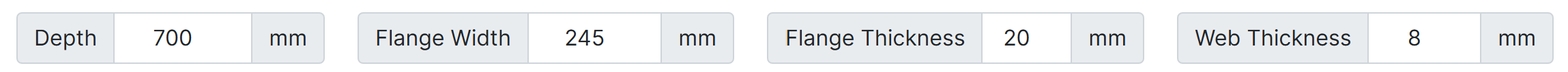

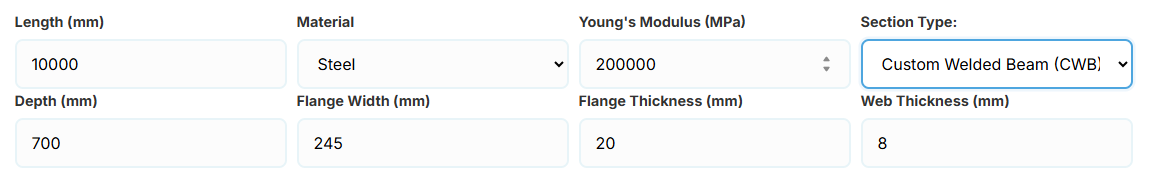

For CWB, enter the depth, flange width, flange thickness and web thickness instead:

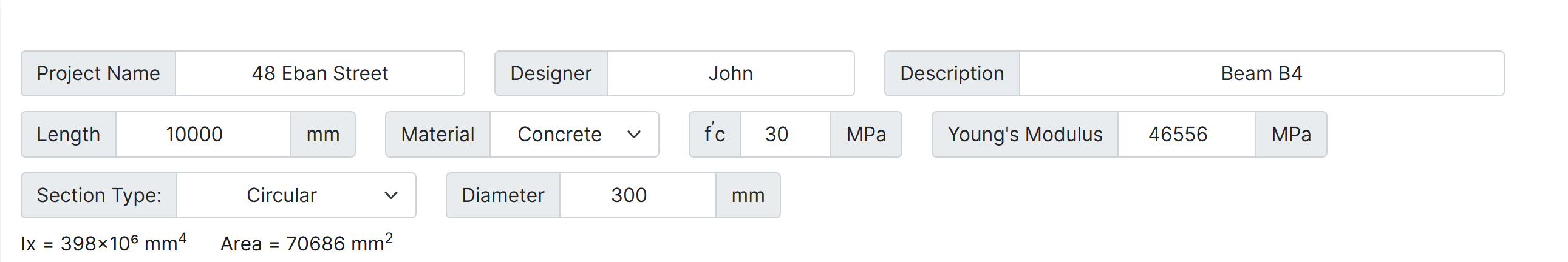

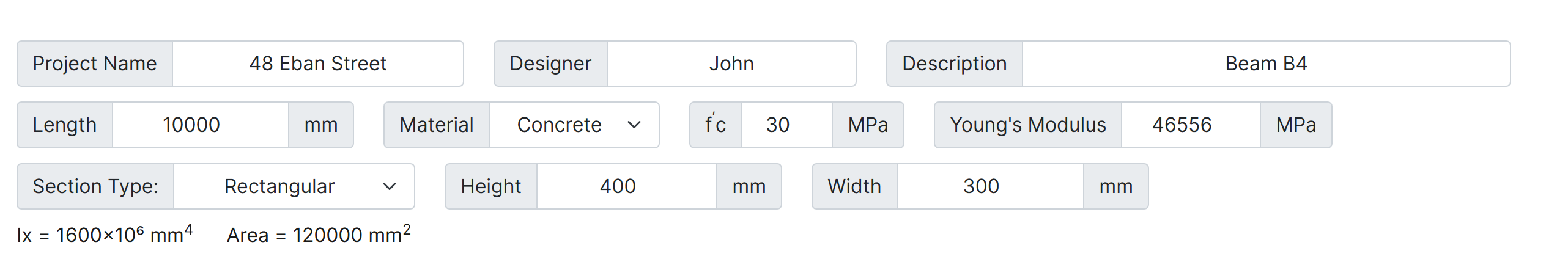

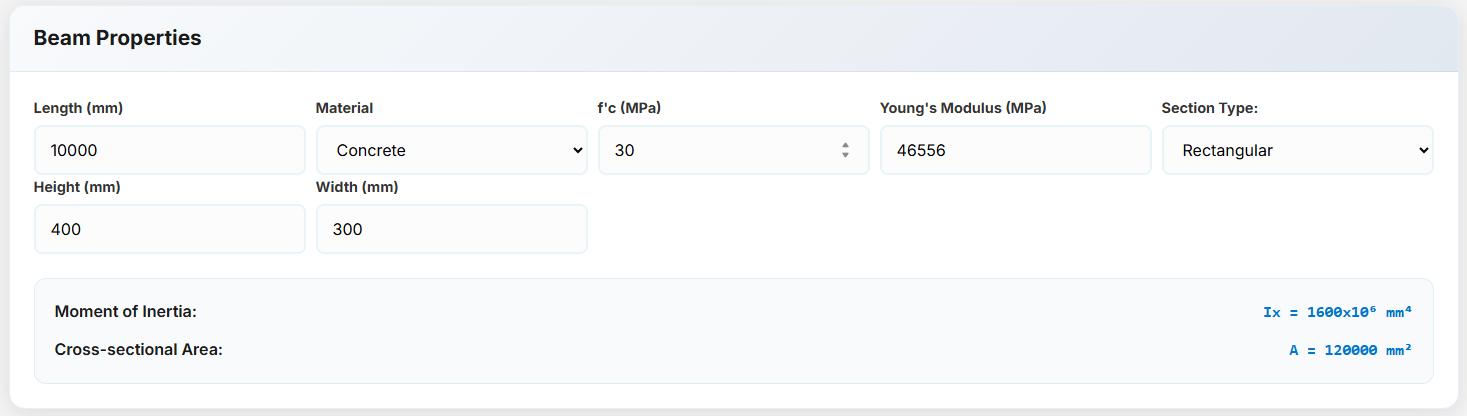

b. Concrete Sections
f'c (MPa): The compressive strength of the concrete.
Young's Modulus: Taken from f'c per AS 3600 Table 3.1.2 (normal-weight concrete, interpolated between the standard grades); you can overwrite it.
Section Type - Rectangular: Enter the height and width.
Section Type - Circular: Enter the diameter.

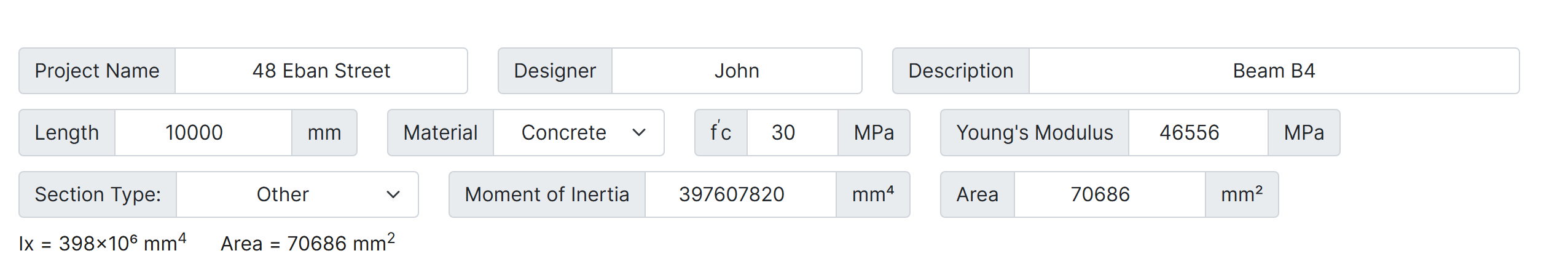

Section Type - Other: Enter the moment of inertia and area of any other shape.

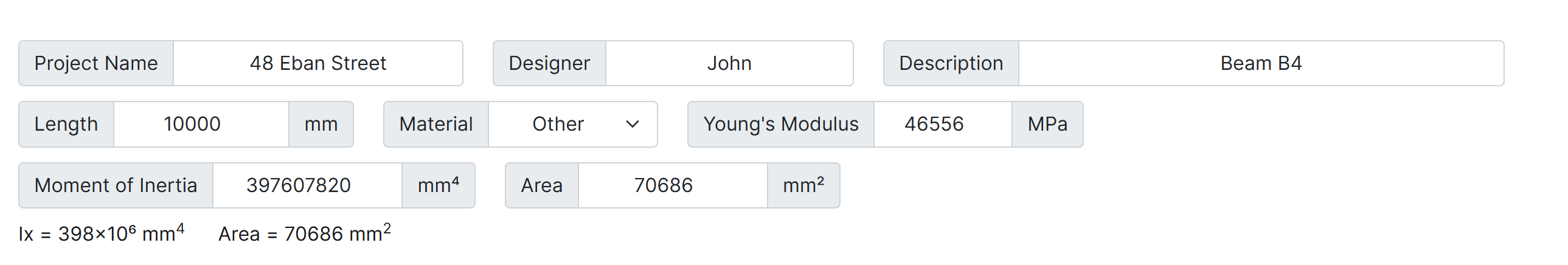

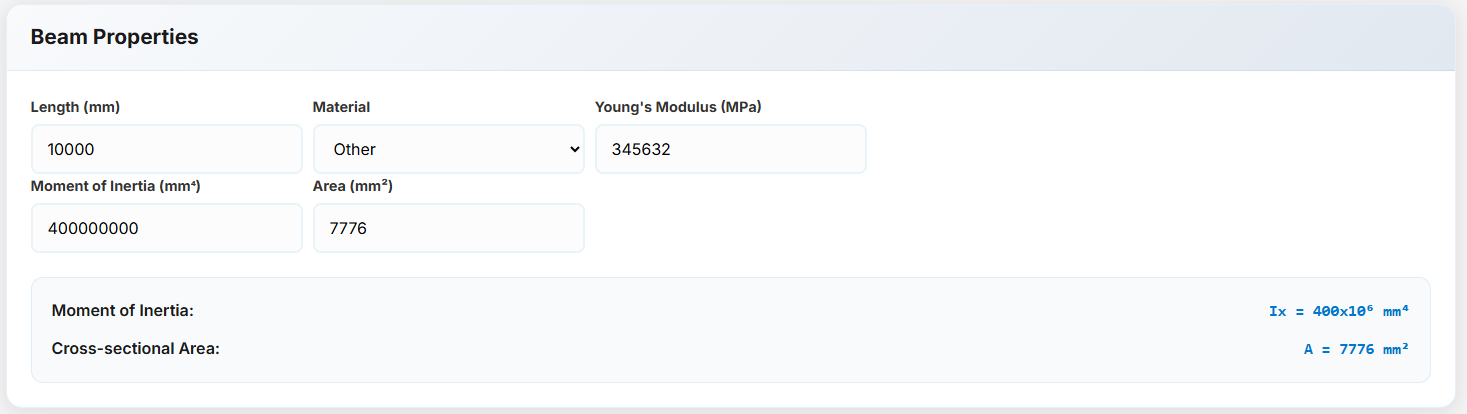

c. Other Materials
For timber, composite or any other material, enter the Young's modulus, moment of inertia and area.

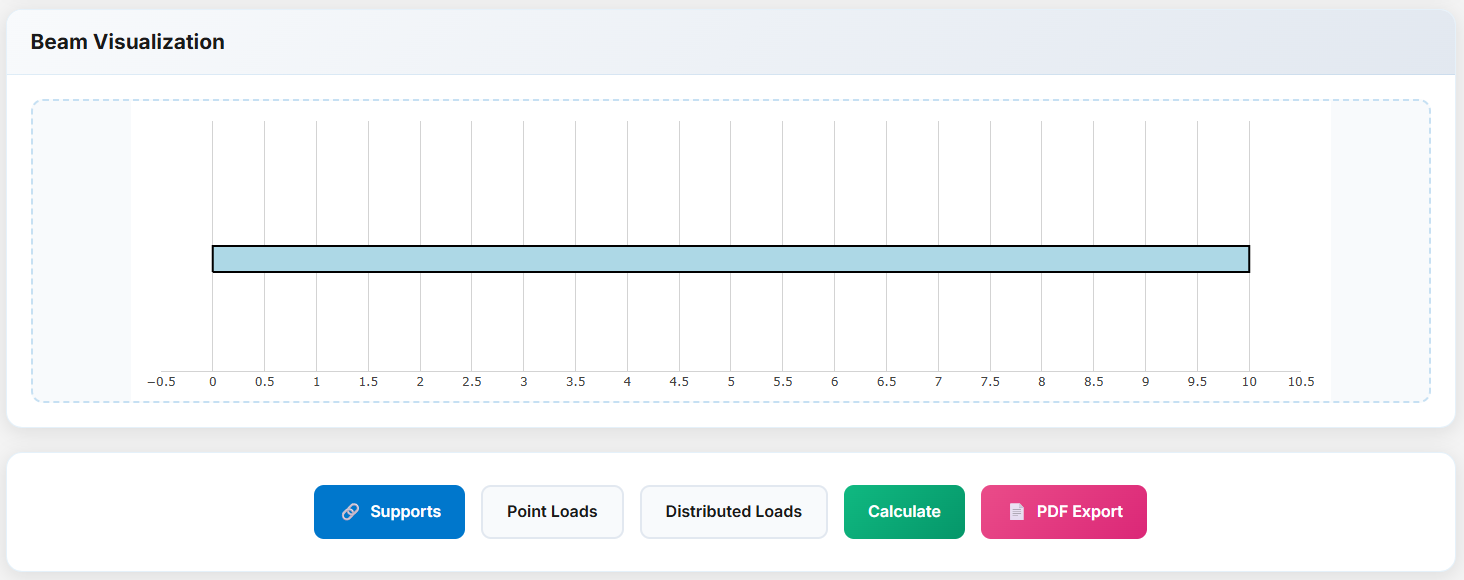

Beam Visualization
The beam is drawn with its supports and loads as you add them, with the positions in metres.
Beam Calculator - Supports

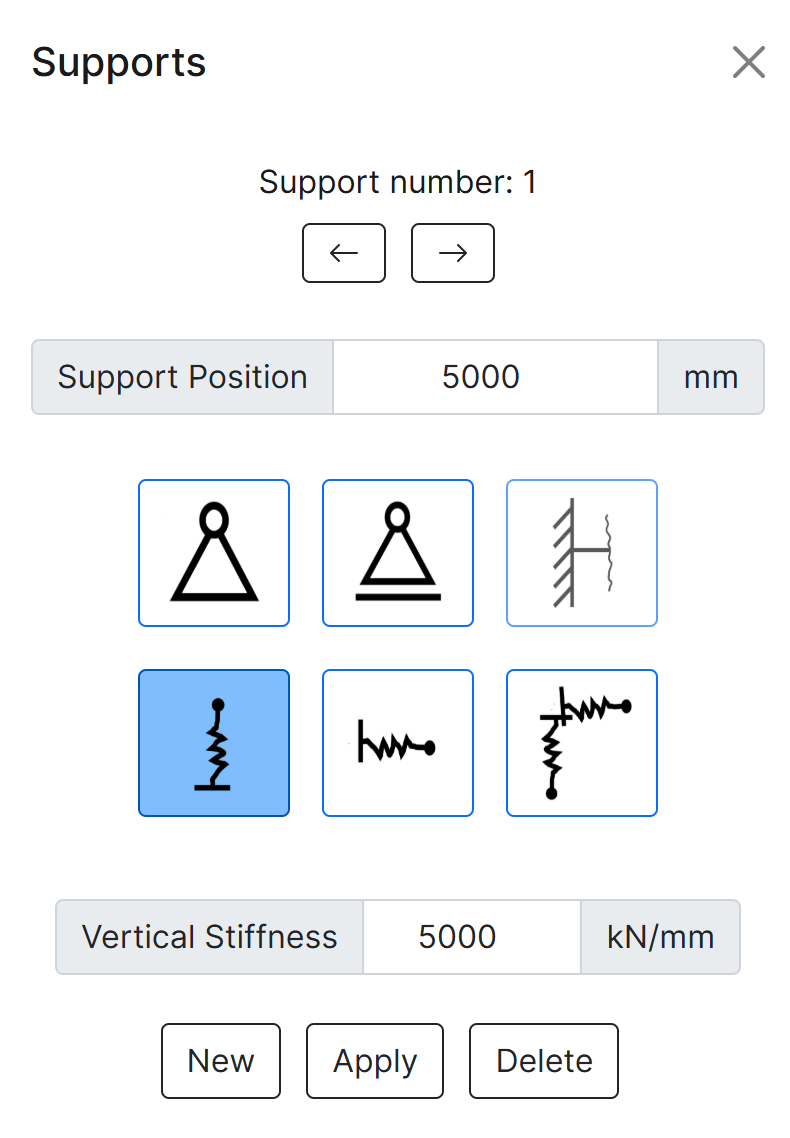

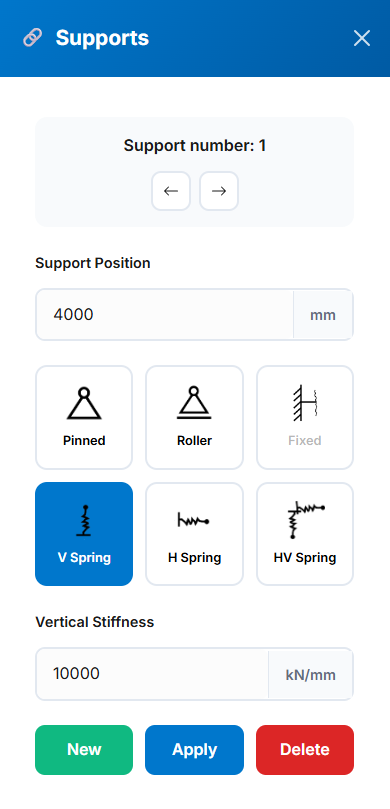

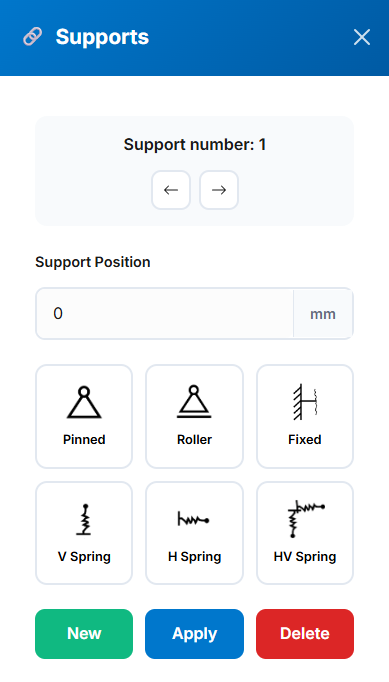

Press Supports to open the Supports panel, where you add, modify or delete the supports of the beam.
Support Configuration
Support number: Generated from the existing supports. Browse them with the left and right arrow buttons.
Support Position (mm): The position of the support along the beam.
Vertical / Horizontal Stiffness (kN/mm): The spring stiffness, shown for the spring supports.
Support Types:
Basic Supports
Pinned (translations fixed, rotation free)
Roller (vertical fixed, horizontal free)
Fixed (all degrees of freedom restrained; beam ends only)
Spring Supports
V Spring - vertical spring (user-defined stiffness)

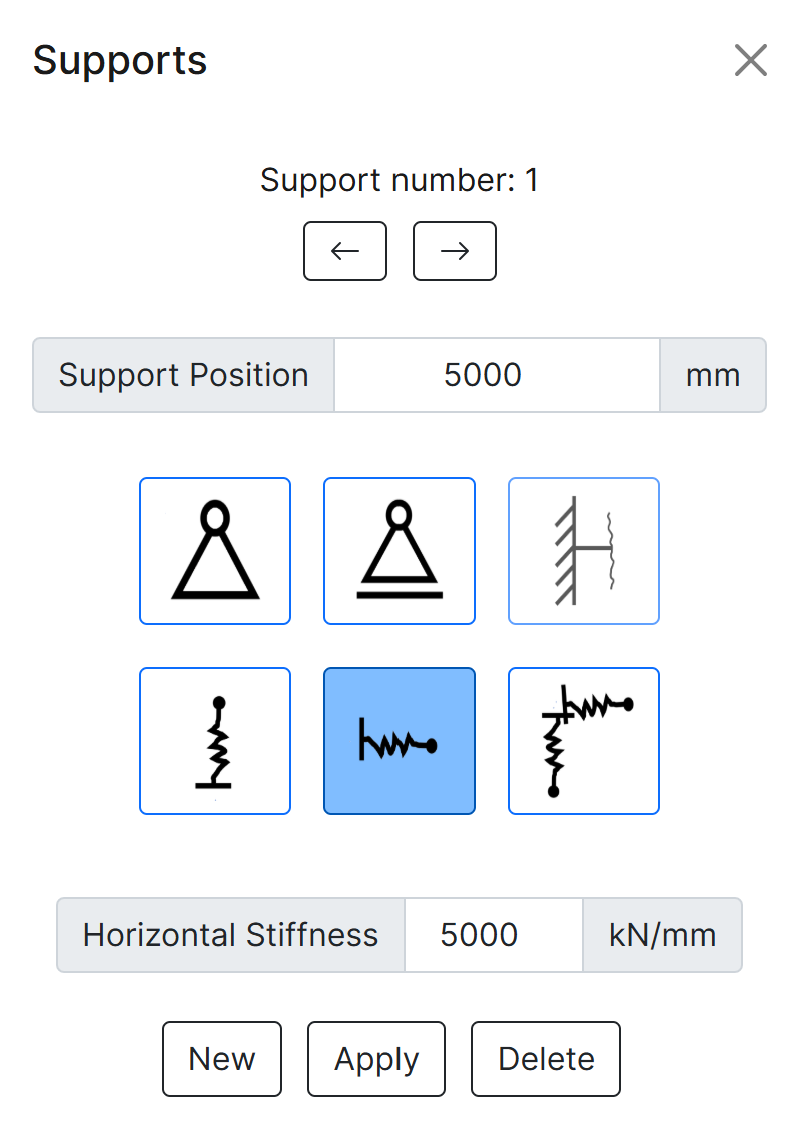

H Spring - horizontal spring (user-defined stiffness)

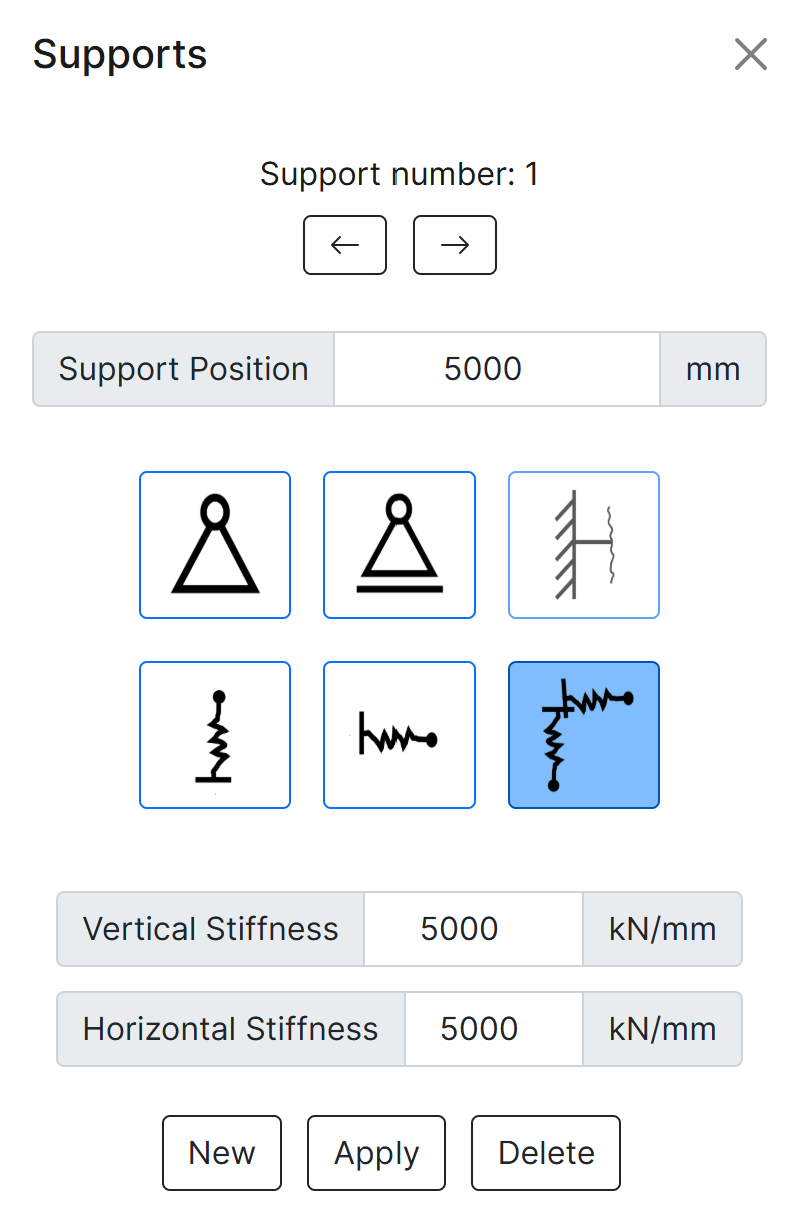

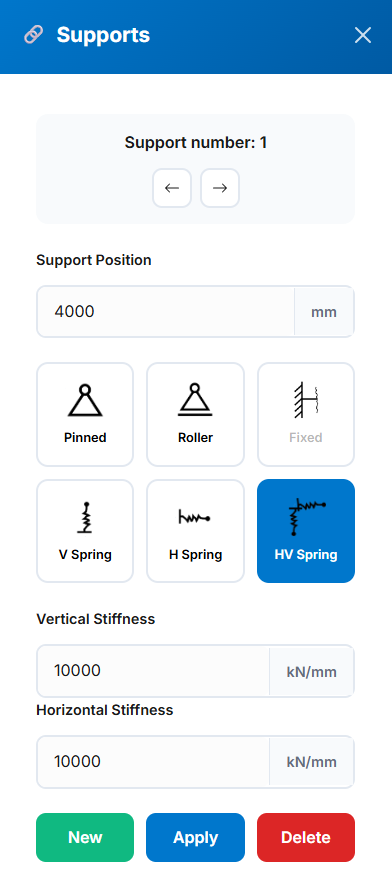

HV Spring - combined horizontal and vertical spring (user-defined stiffness)
Actions
New: Starts a new support. Press it again only to add another support.
Apply: Applies the current settings and adds the support to the beam.
Delete: Removes the selected support from the beam.
Note: Fixed supports are only available at the beam ends. The supports must prevent rigid body motion of the beam.
Beam Calculator - Loads

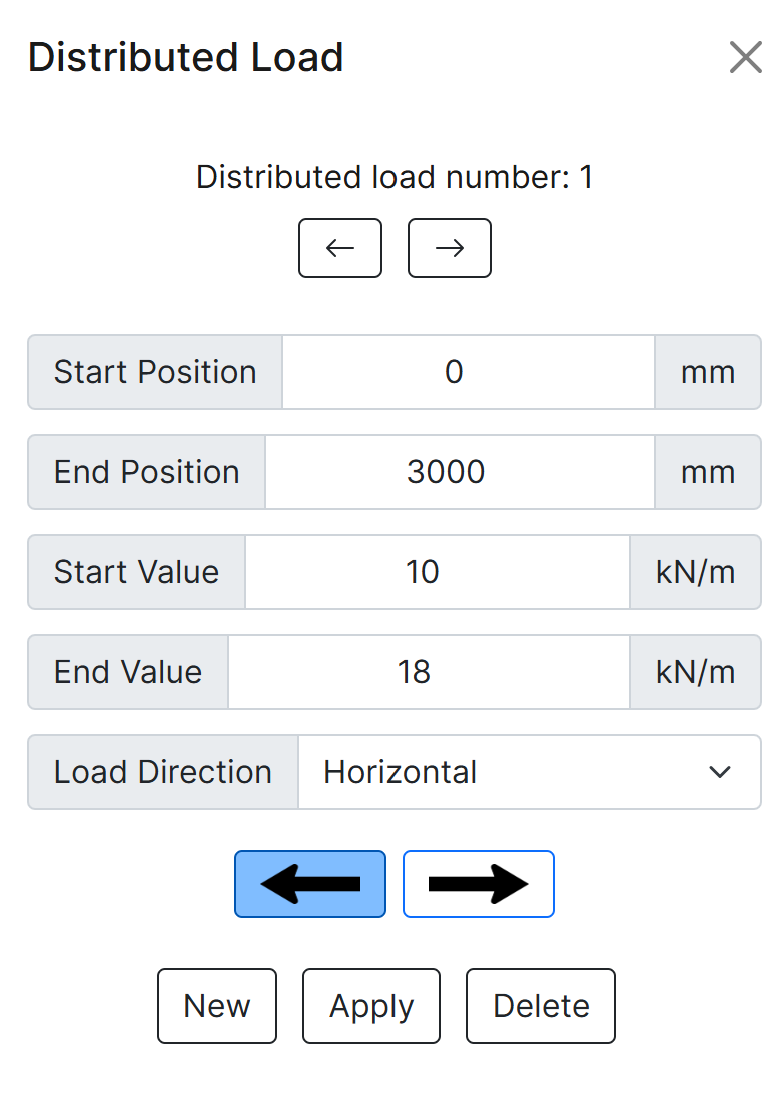

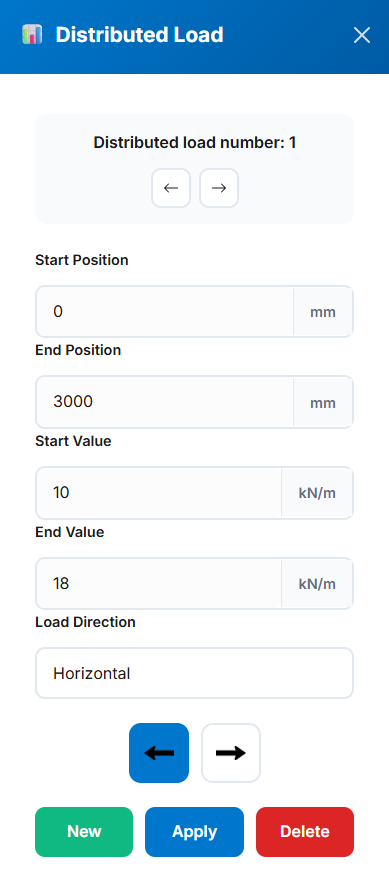

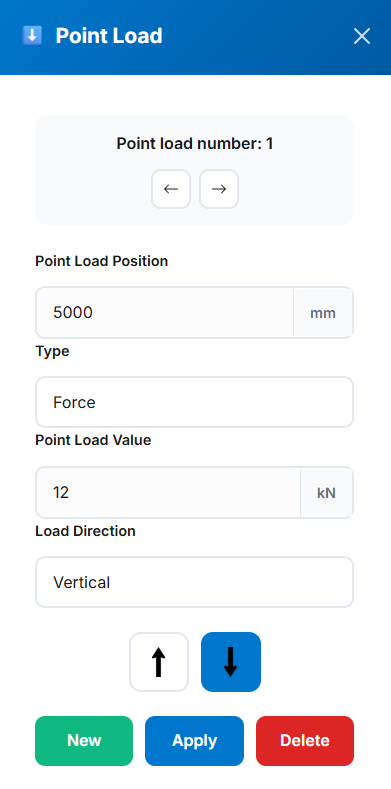

Press Point Loads or Distributed Loads to open the load panels.
Point Loads & Moments
Point load number: Generated from the existing point loads. Browse them with the left and right arrow buttons.
Point Load Position (mm): The position of the load along the beam.
Type:Force or Moment.
Point Load Value: The magnitude of the load, in kN for a force or kN·m for a moment.
Load Direction: For a force, Vertical or Horizontal; for a moment, Clockwise or Anticlockwise.
Direction arrows: For a force, choose up or down (vertical) or left or right (horizontal).
Distributed Loads
Distributed load number: Generated from the existing distributed loads. Browse them with the left and right arrow buttons.
Start Position / End Position (mm): Where the load starts and ends along the beam.
Start Value / End Value (kN/m): The intensity at the start and the end; different values give a linearly varying load.
Load Direction:Vertical or Horizontal.
Direction arrows:up or down for vertical loads, left or right for horizontal loads.
Tip: Enter load values as positive magnitudes and set the direction with the arrows (or clockwise / anticlockwise for moments). The beam visualization shows each load and its direction.
Actions
New: Starts a new load. Press it again only to add another load.
Apply: Applies the current settings and adds the load to the beam.
Delete: Removes the selected load from the beam.
Beam Calculator - Calculations & Export
Press Calculate to compute the reactions, internal forces and deflections. Calculating needs you to be logged in (free account).
Calculation Results
Reactions: The forces and moments at each support.
Result Diagrams: Bending moment, shear, axial force and deflection along the beam, with their maximum and minimum values.
PDF Export
PDF Export creates a report with the beam, the reactions and the result diagrams.
Error Handling: A message is shown if the beam is unstable or a load is invalid.
Connection design
Overview and design codes
StructUpro designs steel connections to five design codes. Pick a code in the connection catalogue, open a connection and enter its inputs: the 2D and 3D drawings follow your inputs, and the calculation checks the connection to the selected code and writes a full report.
EN 1993-1-8 / UK National Annex / SCI P358 and P398
15
The connection catalogue
The connection catalogue lists the connections for the selected design code, grouped as simple shear, moment resisting, splices and column bases. Each card shows the 3D model, the design references and a seismic badge for the AISC 341 / 358 options; open a card to go to its design page.
Every connection design page works the same way, whatever the connection or design code. Entering inputs and viewing the drawings is open to everyone; calculation, reports, exports and saved projects need an active subscription or trial.
Open the connection and manage the project
Open the connection from the connection catalogue under the design code you need; the page header shows that code, and the inputs, report and checks follow it. Use Save, New, Load and Save As to keep connection designs as projects.
Enter the inputs, tab by tab

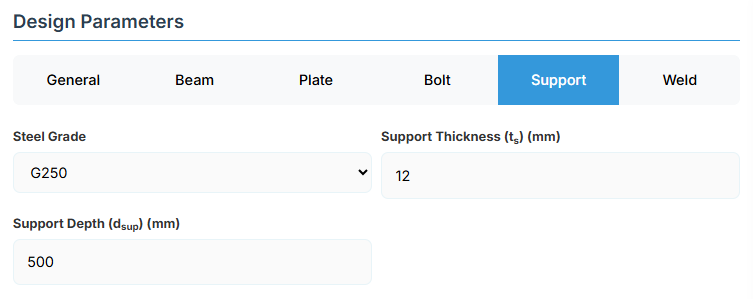

The Design Parameters panel groups the inputs in tabs - typically General (project details and design actions), the members, plates, bolts, welds and the support. Section and material lists follow the design code (for example NZ / Australian, UK and US sections); AISC pages also select LRFD or ASD and US customary or SI units. Validate Inputs checks the geometry and catalogue choices before you calculate. The inputs of each connection are listed in its guide.
Check the 2D and 3D drawings
The drawings redraw as you type. The Elevation and Section drawings show the dimensions, bolt spacing and weld sizes. In the 3D View, drag to rotate, scroll to zoom and right-drag to pan; the 3D, Elevation, Section and Plan buttons reset the camera, and Edges and See-through support change the display.
Calculate and read the design summary
Calculate runs every check of the selected code. The design summary shows whether the design passes, the connection capacity, the governing check and the utilisation, followed by a capacity breakdown of the main checks.
Generate the detailed report
Generate Report opens the full calculation below the form: design parameters, then each check with the code clause, the equations with your numbers and the result. Change an input and calculate again to update it.
Export the report and drawings

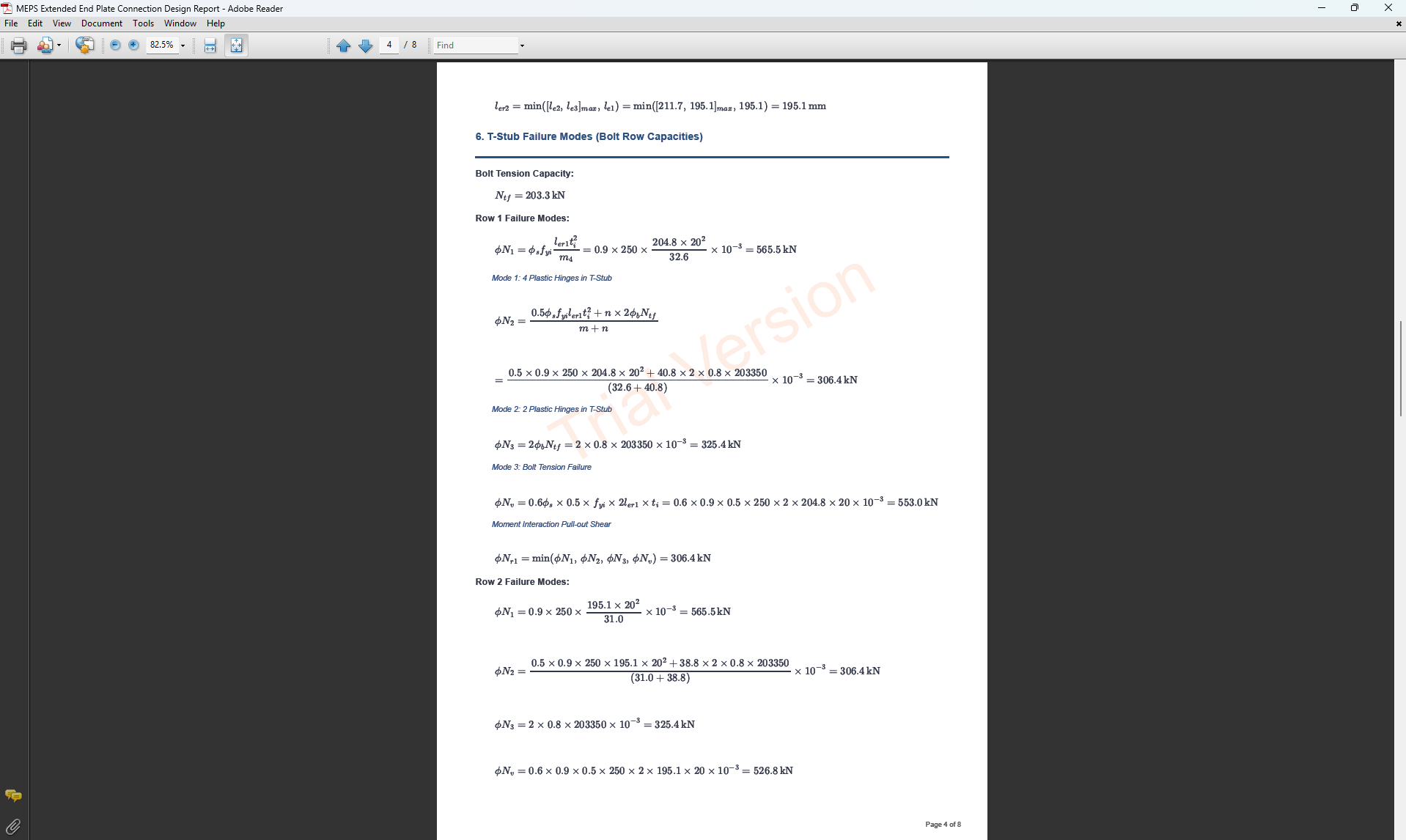

Export Report (PDF) saves the detailed calculation report and Export Drawing (PDF) saves the elevation, section and plan drawings with their dimensions. Calculate before exporting: the export uses the last calculated inputs of the selected code.
Connection design guide
Fin Plate / Web Side Plate
A single plate welded to the supporting member and bolted to the beam web - the web side plate of SCNZ 14.1 and ASI Guide 3, the fin plate of SCI P212 / P358 and the single-plate (shear tab) connection of AISC Manual Part 10. It is a nominally pinned shear connection; the codes also check the plate and bolt group for the tying force where one is given.
NZS 3404
AS 4100
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Cope Type
Web fillet weld leg length tww (mm)
Electrode Type
Design Shear Force V* (kN)
V*drift (kN)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Plate
Steel Grade
Plate Depth (di) (mm)
Plate Width (bi) (mm)
Plate Thickness (ti) (mm)
Bolt
Bolting Category
Bolt Size
Number of Bolts
Bolt Spacing (sp) (mm)
Bolt Colum to Support sg1 (mm)
Bolt offset from flange (a) (mm)
Edge Distance 1 (ae1) (mm)
Edge Distance 4 (ae4) (mm)
Cope&Support
Cope Depth (acb) (mm)
Cope Length (Lc) (mm)
Support Depth (dsup) (mm)
Support Thickness (ts) (mm)
Checks in the calculation report
Geometric Calculations
Cross-sectional Areas
Bolt Group Factors (SCNZ 14.1-2007)
Bolt Group Strength Limits
Web Plate Strength Limits
Section Web Strength Limits
Weld Design Strength Limits
Connection Strength Limits
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
Two angles bolted to the beam web and bolted to the supporting member: angle cleats in SCNZ 14.1 and ASI Guide 5, double angle web cleats in SCI P212 / P358 and the double angle connection of AISC Manual Part 10 (including slip-critical joints).
NZS 3404
AS 4100
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the BS 5950 design page from its default inputs. The drawings update as you change the inputs.
SCI P358 component models / BS EN 1993-1-8 and UK NA
Double angle web cleats using the P358 fin plate / end plate component checks.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Design method
Cope Type
Electrode Type
Design shear force (kN)
NZ drift shear (kN)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Angle
Angle orientation
Section Type:
Section:
Steel Grade
Number of angles (na)
Depth (di) (mm)
Width Support (bisup) (mm)
Width Member (biw) (mm)
Thickness (ti) (mm)
Bolt
Bolt installation
Hole type
Nominal hole diameter (mm)
Bolting Category
Bolt Size
Number of Web Bolt Rows (npw)
Number of Support Bolt Rows (npsup)
Number of bolt columns in beam web (nc)
Bolt Spacing of Support (spsup)
Bolt Spacing of Web (spw) (mm)
sg1 (mm)
sg2 (mm)
sg3 (mm)
Bolt offset from flange (a) (mm)
Edge Distance 4 (ae4) (mm)
Edge Distance 1 (ae1) (mm)
sg4 (mm)
Cope&Support
Support section family
Support section
Connected support face
Support member
Support Steel Grade
Support Depth (dsup) (mm)
Support Thickness (tsup) (mm)
Checks in the calculation report
Geometric Calculations
Cross-sectional Areas
Bolt Group Factors (SCNZ 14.1-2007)
Bolt Capacities
Support Connection Strength Limits
Web Connection Strength Limits
Section Web Strength Limits
Overall Connection Capacity
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
A thin end plate welded to the beam web (and, for full depth plates, to both flanges) and bolted to the support. It is a nominally pinned shear connection: SCNZ 14.1 and ASI Guide 4 flexible end plates, SCI P212 / P358 partial and full depth end plates, and the AISC shear end-plate connection.
NZS 3404
AS 4100
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
SCI P358 4.7 (Checks 1 - 15) / BS EN 1993-1-8 and UK NA
End plate welded to the web and both flanges: welds, beam web shear, bolt group, supporting web, tying by T-stubs at the flanges (Checks 11 - 15).
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Electrode Type
Web weld leg length tww (mm)
Cope Type
Design Shear Force V* (kN)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
End Plate
Steel Grade
Plate Depth (di) (mm)
Plate Width (bi) (mm)
Plate Thickness (ti) (mm)
Bolt
Bolting Category
Bolt Size
Number of Bolts
Bolt Spacing (sp) (mm)
Bolt gauge distance sg (mm)
Bolt offset from flange (a) (mm)
Edge Distance 1 (ae1) (mm)
Edge Distance 4 (ae4) (mm)

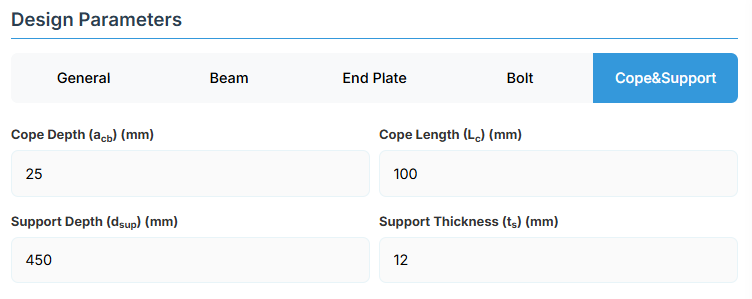

Cope&Support
Cope Depth (acb) (mm)
Cope Length (Lc) (mm)
Support Depth (dsup) (mm)
Support Thickness (ts) (mm)
Checks in the calculation report
Geometric Calculations
Cross-sectional Areas
Bolt Group Design Strength
Flexible End Plate Design Strength
Support Design Strength
Section Web Design Strength
Weld Design Strength
Overall Connection Capacity
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
The beam bears on a seat (an angle, a stiffened angle or a tee) fixed to the support, with a top angle for stability. AS 4100 follows ASI Design Guide 6; AISC follows Manual Part 10 for unstiffened and stiffened seats. NZS 3404, BS 5950 and EN 1993 give no seated connection procedure.
AS 4100
AISC 360
3D model
Elevation
Section
2D drawings and 3D model generated by the AS 4100 design page from its default inputs. The drawings update as you change the inputs.
AISC Manual Part 10 (Table 10-8, 10-15) / AISC 360-22
Bolted double-angle or welded plate / tee stiffened seat with a top angle: stiffener bearing and stability, beam web checks, bolts or welds, support.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: AS 4100 - ASI Connection Design Guide 6: Seated Connections (1st ed. 2007) - Welded unstiffened angle seat (DG6 Part B)
Input tabs
General
Seat type
Seat attached to the support by
Design shear force V* (kN)
Clearance c (mm) - nominal; +4 mm under-run used in design
Beam
Section family
Steel grade
Section
Beam depth d (mm)
Flange width bf (mm)
Flange thickness tf (mm)
Web thickness tw (mm)
Seat
Seat angle family
Seat steel grade
Seat angle
Orientation
Vertical leg / stem depth Lv (mm)
Outstanding leg / seat plate Lh (mm)
Seat thickness ta (mm)
Angle root radius ra (mm)
Seat width La (mm) - along the support
Bolts / Welds
Fillet weld to the support tw (mm)
Electrode
Restraint Cleat
Restraint cleat (stability)
Leg against the support (mm)
Leg on the beam (mm)
Thickness (mm)
Length, across the flange (mm)
Attached by
Bolt size
Support
Supporting member
Seat attached to the
Support section family
Support steel grade
Support section
Support depth (mm)
Thickness of the connected flange / web (mm)
Support flange thickness (mm)
Support root radius (mm)
Checks in the calculation report
DESIGN CHECK NO. 1 - Detailing limitations
DESIGN CHECKS NO. 2, 3, 4 - Web crippling, bending of the outstanding leg and seat capacity
DESIGN CHECK NO. 5 - Web buckling of the supported member
DESIGN CHECK NO. 6 - Weld to the supporting member
Design capacity of connection
Check 2 - Web crippling of the supported member
Check 3 - Bending of the outstanding leg
Check 4 - Seat capacity (stiff bearing length bs)
Check 5 - Web buckling of the supported member
Check 6 - Weld to the supporting member
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
Beam flanges and web welded directly to the column flange. The checks cover the flange forces, the column flange and web in the tension and compression zones, the panel zone, stiffeners or doubler plates and the welds. AISC also offers the AISC 358 WUF-W prequalified seismic connection.
NZS 3404
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the BS 5950 design page from its default inputs. The drawings update as you change the inputs.
Beam flanges and web welded to the column flange: flange forces, column flange / web local checks, panel zone, stiffeners / doubler and welds. AISC 358 WUF-W seismic option.
SCI P398 (2013) Section 3 and Example F.1; BS EN 1993-1-8:2005 4.10, 6.2.6 and UK NA
Beam flanges and web welded to the column flange: flange forces, column flange / web local checks, panel zone, stiffeners and welds.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Frame Ductility
ِDesign Shear Force V* (kN)
Design Bending Moment M* (kN.m)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Weld
Electrode Type
Flange Weld Type
Flange weld leg length twf (mm)
Web weld leg length tww (mm)
Checks in the calculation report
Web Shear Strength Limits
Flange Weld Design Strength
Web Weld Design Strength

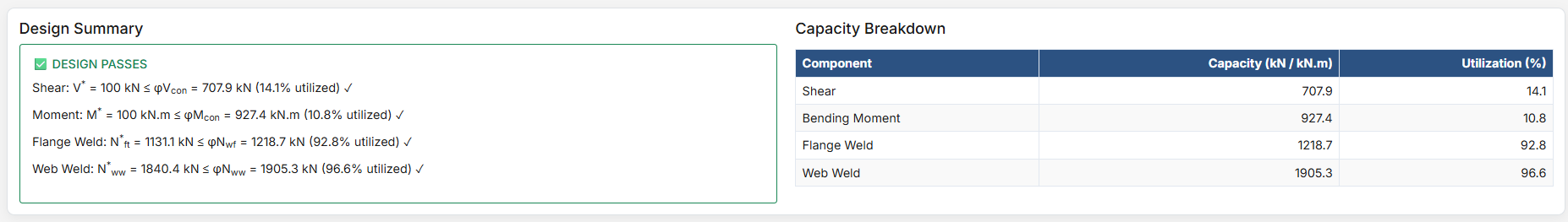

Connection Design Capacity
Shear
Bending Moment
Flange Weld
Web Weld
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
A moment end plate extended above the tension flange, bolted to the column flange. Bolt row resistances, end plate bending, the column flange and web, the panel zone and the welds are checked: SCNZ 14.1, AISC Design Guide 39 (with the AISC 358 4E / 4ES / 8ES seismic option), SCI P207 and SCI P398.
NZS 3404
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
SCI P398 (2013) Section 2 and Example C.1; BS EN 1993-1-8:2005 6.2.4 - 6.2.7 and UK NA
Major-axis moment, shear and axial force: bolt rows, end plate, column flange / web, panel zone and welds.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
MEP Type
Frame Ductility
ِDesign Shear Force V* (kN)
Design Bending Moment M* (kN.m)
Adjacent Beam Moment M*adj (kN.m)
Beam Angle o
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Adjacent Beam Depth (dadj) (mm)
Adjacent Beam Flange Thick (tf,adj) (mm)
Plate
Steel Grade
Plate Depth (di) (mm)
Plate Width (bi) (mm)
Plate Thickness (ti) (mm)
Gusset Thickness (tgi) (mm)
Bolt
Bolting Category
Bolt Size
Bolt Spacing (sp) (mm)
Bolt gauge distance (sg) (mm)
Top of flange to bolt hole centre below flange (pf) (mm)
Top of flange to bolt hole centre above flange (af) (mm)
A moment end plate that stays within the beam depth. It is checked with the same bolt row and component approach as the extended end plate, to AISC Design Guide 39, SCI P207 and SCI P398. SCNZ 14.1 has no flush beam-to-column end plate (the flush splice is covered).
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the BS 5950 design page from its default inputs. The drawings update as you change the inputs.
SCI P398 (2013) Section 2; BS EN 1993-1-8:2005 6.2.4 - 6.2.7 and UK NA
Major-axis moment, shear and axial force: bolt rows, end plate, column flange / web, panel zone and welds.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
AISC Flange Plate and Prequalified Moment Connections
AISC-only fully restrained moment connections: welded and bolted flange plates (AISC Manual Part 11, with the AISC 358 Chapter 7 seismic BFP option) and the AISC 358 prequalified connections for special and intermediate moment frames - reduced beam section (Chapter 5), double-tee (Chapter 13) and slotted web (Chapter 14).
AISC 360
3D model
Elevation
Section
2D drawings and 3D model generated by the AISC 360 design page from its default inputs. The drawings update as you change the inputs.
AISC 358 Ch. 14 (SMF): slot length, shear plate and its eccentric weld group, beam shear, continuity plates, panel zone, moment ratio.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: AISC Manual Part 11 / AISC 360-22 (LRFD)
Input tabs
General
Design method
Units
Column axial force (kips, + compression)
Column (storey) shear Vc (kips)
Beam
Section family
Steel grade
Section
Depth d (in.)
Flange width bf (in.)
Flange thickness tf (in.)
Web thickness tw (in.)
Root radius r = kdes - tf (in.)
Column
Section family
Steel grade
Section
Depth dc (in.)
Flange width bcf (in.)
Flange thickness tcf (in.)
Web thickness tcw (in.)
Root radius rc = kdes - tcf (in.)
Connection
Bolts
Diameter
Electrode
Plate grade (flange / shear plates, stiffeners)
Top plate width bp (in.)
Top plate thickness tp (in.)
Bottom plate width (in.)
Bottom plate thickness (in.)
Setback (column face to beam end, mm)
Fillets to the beam flange (in.)
Top plate weld length, each side (in.)
Bottom plate weld length, each side (mm, 0 = as top)
End weld across the top plate (narrower than the flange)
Plates to the column flange
Fillet leg (in.)
Web plate
Plate thickness (in.)
Plate length hp (in.)
Bolts (one line)
Bolt pitch (in.)
a, weld to bolt line (in.)
Leh (in.)
Lev (in.)
Fillets to the column flange, both sides (in.)
Stiffening
Transverse stiffeners / continuity plates at both beam flange levels
Web doubler plate tdp (mm, 0 = none)
Checks in the calculation report
Detailing
Flange plate - Tension plate yielding (J4-1)
Welds - Tension plate to beam flange fillet welds (Manual Part 8)
Welds - Compression plate to beam flange fillet welds
Flange plate - Compression plate (J4.4, K = 0.65, L = setback)
Two end plates welded to the beam ends and bolted together, either flush with the beam flanges or extended beyond the tension flange. The bolt rows, end plates and welds are checked for moment, shear and axial force.
NZS 3404
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
SCI P398 (2013) 4.4 end plate splices; BS EN 1993-1-8:2005 6.2.4 - 6.2.7 and UK NA
Major-axis moment, shear and axial force: bolt rows, end plate and welds.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
MEPS Type
ِDesign Shear Force V* (kN)
Design Bending Moment M* (kN.m)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Plate
Steel Grade
Plate Depth (di) (mm)
Plate Width (bi) (mm)
Plate Thickness (ti) (mm)
Bolt
Bolting Category
Bolt Size
Bolt Spacing (sp) (mm)
Bolt gauge distance (sg) (mm)
Top of flange to bolt hole centre below flange (pf) (mm)
Top of flange to bolt hole centre above flange (af) (mm)
Weld
Electrode Type
Flange Weld Type
Flange weld leg length twf (mm)
Web weld leg length tww (mm)
Checks in the calculation report
Geometric Calculations
Stiffened End Plate Factors
Effective T-Stub Lengths
T-Stub Failure Modes (Bolt Row Capacities)
Connection Moment Capacity
Shear Design Capacities
Weld Design Capacities
Overall Connection Capacity
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
Cover plate splices that join two beam lengths with flange and web plates: the SCNZ 14.1 bolted beam splice and bolted / welded beam splice, the AISC flange-plated moment splice and single-plate shear splice, and the SCI P207 / P398 bolted cover plate splices.
NZS 3404
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
AISC Manual 16th Part 11 (FR moment splices); AISC 360-22 F13, J3, J4; Design Examples II.B-1 plate checks
Bolted flange-plated moment splice with web splice plates: F13.1 flexure, flange bolts and plates (yielding, rupture, block shear, buckling), web plates.
SCI P207 Section 5 (worked example 5.4): flange and web cover plates for moment, shear and axial force - bolt shear / bearing / slip, cover plates, net sections, web plate eccentricity.
SCI P398 (2013) 4.2 - 4.3 bolted cover plate splices; BS EN 1993-1-8:2005 3.6 - 3.10 and UK NA
SCI P398 4.2 STEPS 1 - 6 (Example D.1): flange and web cover plates for moment, shear and axial force - bolt shear / bearing / slip, cover plates, net sections, web plate eccentricity.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Splice Type
Contact Surface Type
ِDesign Shear Force V* (kN)
Design Bending Moment M* (kN.m)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Plate
Flange Plate Steel Grade
Flange Plate Depth (dif) (mm)
Flange Plate Width (bif) (mm)
Flange Plate Thickness (tif) (mm)
Doubler Flange Plate Width (bi2) (mm)
Web Plate Steel Grade
Web Plate Depth (diw) (mm)
Web Plate Width (biw) (mm)
Web Plate Thickness (tiw) (mm)
Bolt
Bolting Category
Flange Bolt Size
Web Bolt Size
End gap (c) (mm)
Flange Bolt Spacing (spf) (mm)
Web Bolt Spacing (spw) (mm)
Number of bolt rows in flange (npf)
Number of bolt rows in web (npw)
Flange Bolt gauge distance (sg1) (mm)
Web Bolt gauge distance (sg2) (mm)
Flange Bolt gauge distance (sg) (mm)
Checks in the calculation report

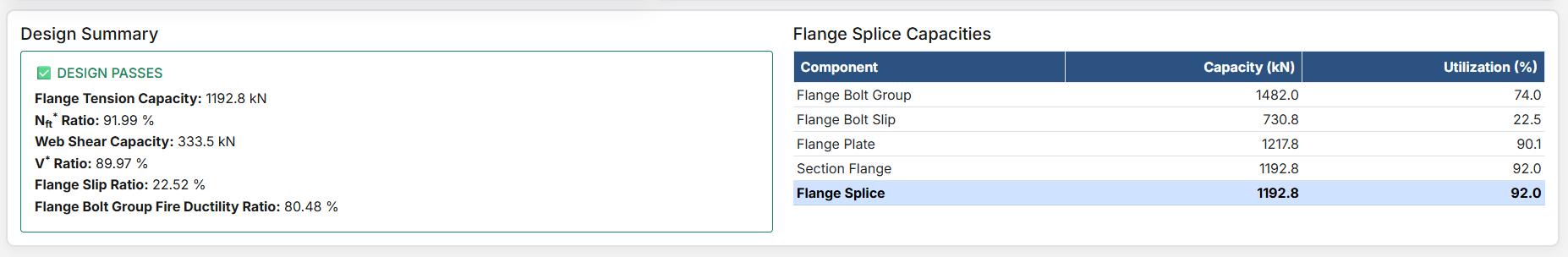

Flange Splice Design Actions
Flange Geometric Calculations
Flange Bolt Group Capacity
Flange Bolt Slip Capacity (Serviceability)
Flange Plate Design Capacities
Section Flange Design Capacities
Overall Flange Splice Capacity
Web Splice Geometric Calculations
Web Bolt Interaction Factors
Web Bolt Group Capacity
Web Plate Design Capacities
Combined Web Splice Capacities
Overall Web Splice Capacity
Governing Criteria Checks
Geometric & Detailing Checks
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
Bolted cover plate column splices, bearing or non-bearing, with flange and web plates and packs where the sections differ. AISC adds the AISC 341 D2.5 seismic column splice option.
NZS 3404
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
SCI P358 (2014) Section 6 (6.5 bearing / 6.6 non-bearing cover plate splices); BS EN 1993-1-8:2005 6.2.7.1(13) - (14) and UK NA
Bolted cover plate column splice, bearing or non-bearing: bolts, cover plates, packs / fillers, web plates.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Splice Type
Contact Surface Type
ِAxial Compression Load Nc* (kN)
ِDesign Shear Force V* (kN)
Design Bending Moment M* (kN.m)
Column
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Plate
Flange Plate Steel Grade
Flange Plate Depth (dif) (mm)
Flange Plate Width (bif) (mm)
Flange Plate Thickness (tif) (mm)
Doubler Flange Plate Width (bi2) (mm)
Web Plate Steel Grade
Web Plate Depth (diw) (mm)
Web Plate Width (biw) (mm)
Web Plate Thickness (tiw) (mm)
Bolt
Bolting Category
Flange Bolt Size
Web Bolt Size
Flange Bolt gauge distance (sg) (mm)
Flange Bolt Spacing (spf) (mm)
Web Bolt Spacing (spw) (mm)
Number of bolt rows in flange (npf)
Number of bolt rows in web (npw)
Inner bolt pitch in flange splice (sg1) (mm)
Web Bolt gauge distance (sg2) (mm)
Checks in the calculation report
Minimum Splice Capacity (15% Rule)
Flange Splice Design Actions
Flange Geometric Calculations
Flange Bolt Group Capacity
Flange Bolt Slip Capacity (Serviceability)
Flange Plate Design Capacities
Section Flange Design Capacities
Overall Flange Splice Capacity
Connection Moment Capacity
Web Geometric Calculations
Web Bolt Group Interaction Factors
Web Bolt Group Capacity
Web Plate Design Capacities
Section Web Design Capacities
Overall Web Splice Capacity
Compression Transfer Capacity
Governing Criteria Checks
Geometric & Detailing Checks
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
SCI P398 (2013) 4.2 - 4.3 bolted cover plate splices; BS EN 1993-1-8:2005 3.6 - 3.10 and UK NA
Bolted cover plate splice for tension, moment and shear: bolts, cover plates, member net section.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007
Input tabs
General
Splice Type
Contact Surface Type
ِDesign Shear Force V* (kN)
Design Bending Moment M* (kN.m)
ِDesign Axial Tension Nt* (kN)
Beam
Section Type
Steel Grade
Section
Beam Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Plate
Flange Plate Steel Grade
Flange Plate Depth (dif) (mm)
Flange Plate Width (bif) (mm)
Flange Plate Thickness (tif) (mm)
Doubler Flange Plate Width (bi2) (mm)
Web Plate Steel Grade
Web Plate Depth (diw) (mm)
Web Plate Width (biw) (mm)
Web Plate Thickness (tiw) (mm)
Bolt
Bolting Category
Flange Bolt Size
Web Bolt Size
Flange Bolt gauge distance (sg) (mm)
Flange Bolt Spacing (spf) (mm)
Web Bolt Spacing (spw) (mm)
Number of bolt rows in flange (npf)
Number of bolt rows in web (npw)
Inner bolt pitch in flange splice (sg1) (mm)
Web Bolt gauge distance (sg2) (mm)
Gauge distance between first and second bolt columns in web (sg3) (mm)
Checks in the calculation report
Section Areas and Load Distribution
Flange Splice Design Actions
Flange Geometric Calculations
Flange Bolt Group Capacity
Flange Bolt Slip Capacity (Serviceability)
Flange Plate Design Capacities
Section Flange Design Capacities
Overall Flange Splice Capacity
Connection Moment Capacity
Web Splice Design Actions
Web Geometric Calculations
Bolt Group Polar Moment and Bolt Forces
Web Bolt Group Capacity
Web Plate Design Capacities
Section Web Design Capacities
Overall Web Splice Capacity
Governing Criteria Checks
Geometric & Detailing Checks
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
RHS 'cap and base' or CHS end plate splices in tension to SCI P358 6.7 / 6.8 (EN 1993) and SCI P212 7.7 / 7.8 (BS 5950): T-stubs with prying (CIDECT model), plate yielding, the bolt group, welds and the member.
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
SCI P358 (2014) 6.7 RHS 'cap and base' splices / 6.8 CHS end plate splices in tension (CIDECT model); BS EN 1993-1-8:2005 and UK NA
RHS 'cap and base' or CHS end plate splice in tension: T-stub with prying (CIDECT), plate yielding, bolt group, welds and member.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCI P212 7.7 / BS 5950-1:2000
Input tabs
Member
Section
Steel grade
Depth D (along the bolt rows)Diameter D (mm)
Width B (mm)
Wall t (mm)
Area (mm2, 0 = from the dimensions)
End plates / bolts
End plate thickness tp (mm)
Plate grade
Bolts
Diameter
Bolts per row (2 rows)
Pitch p (mm)
e1: section face to bolt line (mm)
e2: bolt line to plate edge (mm)
e3: end bolt to plate end (mm)
Fillet weld leg s (mm)
Electrode
Checks in the calculation report
Detailing
Tension
Connection - Bolt failure with end plate yielding (Check 3) (P212 7.7 Check 3)
Welds - Weld tensile capacity, sides adjacent to the bolts (Check 5) (P212 7.7 Check 5)
Bolts - Bolt failure (Check 4) (P212 7.7 Check 4)
Member - Member capacity (Check 6) (P212 7.7 Check 6)
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
A nominally pinned base plate for axial compression or uplift and shear: concrete bearing, plate thickness, holding-down bolts / anchors and their anchorage, and the column to plate welds. AS 4100 follows ASI Design Guide 7; AISC follows Design Guide 1 (3rd Ed.) with ACI 318 anchorage.
NZS 3404
AS 4100
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the AS 4100 design page from its default inputs. The drawings update as you change the inputs.
SCI P358 (2014) Section 7 (Checks 1 - 4); BS EN 1993-1-8:2005 6.2.2, 6.2.5 and UK NA; uplift and shear per SCI P398
Axial compression or uplift and shear: bearing, plate thickness, anchors / holding-down bolts, anchorage, welds.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: SCNZ 14.1-2007 Section XVII
Input tabs
General
28 day concrete compressive strength f'c (MPa)
Concrete bearing area A2 (m2 )
ِDesign Shear Force V* (kN)
ِDesign Axial Compression Nc* (kN)
Column
Section Type
Steel Grade
Section
Column Depth d (mm)
Flange Width bf (mm)
Flange Thickness (tf) (mm)
Web Thickness (tw) (mm)
Base Plate
Plate Steel Grade
Plate Depth (di) (mm)
Plate Width (bi) (mm)
Plate Thickness (ti) (mm)
Bolt
Bolting Category
Bolt Size
Bolt horizontal edge distance (ae1) (mm)
Bolt vertical edge distance (ae2) (mm)
Bolt gauge distance (sg) (mm)
Weld
Electrode Type
Fillet weld leg length twi (mm)
Checks in the calculation report
Concrete Bearing Capacity
Effective Rigid Bearing Area Calculation
Minimum Base Plate Dimensions
Section Compression Capacity
Bolts Design Strength Limits
Concrete Edge Shear Capacity
Weld Design Strength Limits
Checks listed for the default inputs; options such as notches, tying forces, seismic design or stiffeners add their own checks when selected.
A moment-resisting base plate for axial force, major-axis moment and shear: bearing, plate bending on the compression and tension sides, holding-down bolts in tension and shear, anchorage and welds. SCNZ 14.1 does not cover moment bases.
AS 4100
AISC 360
BS 5950
EN 1993
3D model
Elevation
Section
2D drawings and 3D model generated by the EN 1993 design page from its default inputs. The drawings update as you change the inputs.
AISC Design Guide 1 (3rd Ed.) method adapted to AS 4100:2020 (plate, bolts 9.3.2, welds 9.6.3.10) and AS 3600:2018 (bearing 12.6, fixings 19.3); AS 5216 not held
Axial force, major-axis moment and shear: bearing, plate bending, anchors / holding-down bolts, anchorage, welds.
SCI P398 (2013) Section 5 and Example E.1; BS EN 1993-1-8:2005 6.2.5, 6.2.6, 6.2.8 and UK NA
Axial force, major-axis moment and shear: bearing, plate bending, anchors / holding-down bolts, anchorage, welds.
The design page
Open the connection from the catalogue under the design code you need, enter the inputs tab by tab and watch the drawings update. Validate Inputs checks the geometry and catalogue choices, Calculate runs the code checks and shows the design summary, and the report and drawings can be exported to PDF - see Workflow, report and export.
Inputs and checks by design code
Report basis: AISC Design Guide 1 method adapted to AS 4100:2020 / AS 3600:2018 (AS 5216 anchorage not held - concrete cone with AS 36
Input tabs
Column
Section family
Steel grade
Section
Depth D (mm)
Width B (mm)
Flange thickness T (mm)
Web thickness tw (mm)
Root radius r (mm)
Plate / Welds
Plate length di (mm)
Plate width bi (mm)
Plate thickness tp (mm)
Plate grade
Column-to-plate welds
Fillet weld leg (mm)
Electrode
Anchors
Holding-down bolt category
Diameter
Anchors per line (2 lines)
Spacing along a line sg (mm)
Plate end to anchor line ae1 (mm)
Embedded length L (mm, 0 = not checked)
Anchorage
Anchor plate side (mm, 0 = 5d)
Anchors resisting shear
Friction (μ = 0.4, φ = 0.6)
Concrete
Concrete f'c (MPa, specified cylinder strength)
Grout / bedding strength (MPa, 0 = not limiting)
Grout / bedding thickness (mm)
Foundation length (mm, 0 = large)
Foundation width (mm, 0 = large)
Foundation depth (mm)
Cracked concrete (concrete cone ψc factors = 1.0)
Checks in the calculation report
Detailing
Concrete - Bearing (low moment, uniform stress over Y = di - 2e) (DG1 Eqs. 4-40 to 4-44, AS 3600 12.6)
Base plate - Bending at the bearing interface (DG1 Eqs. 4-47 to 4-52, AS 4100 5.2)
Shear - Friction between the base plate and the grout (DG1 Eq. 4-30 (μ = 0.4), AS 3600 Table 2.2.2)
Pinned (translations fixed, rotation free)
Roller (vertical fixed, horizontal free)
Fixed (all degrees of freedom restrained; beam ends only)
V Spring - vertical spring (user-defined stiffness)
H Spring - horizontal spring (user-defined stiffness)
HV Spring - combined horizontal and vertical spring (user-defined stiffness)
